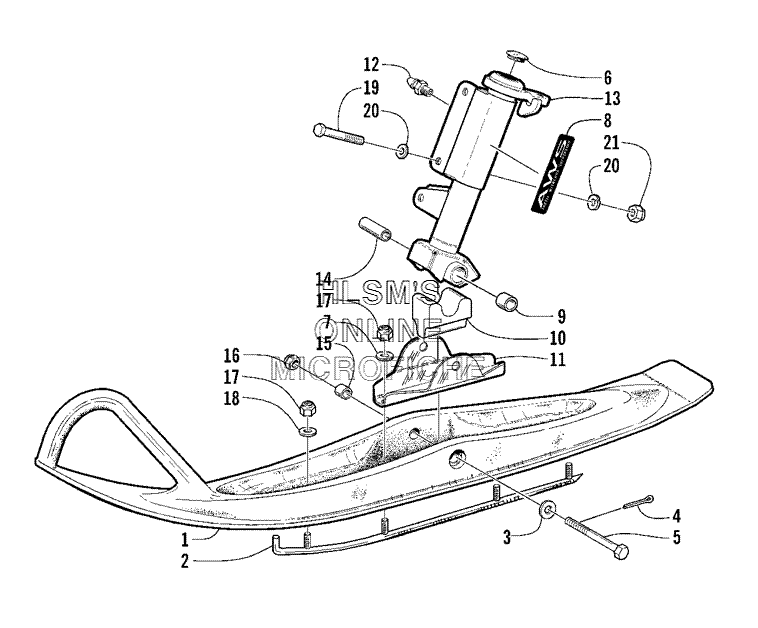

SKI AND SPINDLE ASSEMBLY для Arctic Cat Bearcat 340 - 2000 года выпуска`
-
№АртикулНазвание
-
11603-231 SKISKI
-
20703-623 WEARBARWEARBAR
-
20703-251 WEARBAR, CARBIDE - OPTIONALWEARBAR, CARBIDE - OPTIONAL
-
38050-307 WASHERWASHER
-
40123-458 PIN, COTTERPIN, COTTER
-
50623-776 SCREW, CAPSCREW, CAP
-
60603-049 CAP, SPINDLECAP, SPINDLE
-
78050-272 WASHERWASHER
-
83611-468 DECAL, SPINDLE - AWSDECAL, SPINDLE - AWS
-
90603-158 BEARINGBEARING
-
101603-257 DAMPER, SKIDAMPER, SKI
-
111603-256 SADDLE, SKISADDLE, SKI
-
120623-010 FITTING, GREASEFITTING, GREASE
-
130703-266 SPINDLE, STEERING - RIGHTSPINDLE, STEERING - RIGHT
-
130703-267 SPINDLE, STEERING - LEFTSPINDLE, STEERING - LEFT
-
140603-034 AXLE, SPINDLEAXLE, SPINDLE
-
151603-258 INSERT, SKIINSERT, SKI
-
160123-296 NUT, LOCKNUT, LOCK
-
178040-486 NUT, LOCKNUT, LOCK
-
188050-277 WASHERWASHER
-
198013-232 SCREW, CAPSCREW, CAP
-
208051-277 WASHER, LOCKWASHER, LOCK
-
210623-026 NUT, LOCKNUT, LOCK
