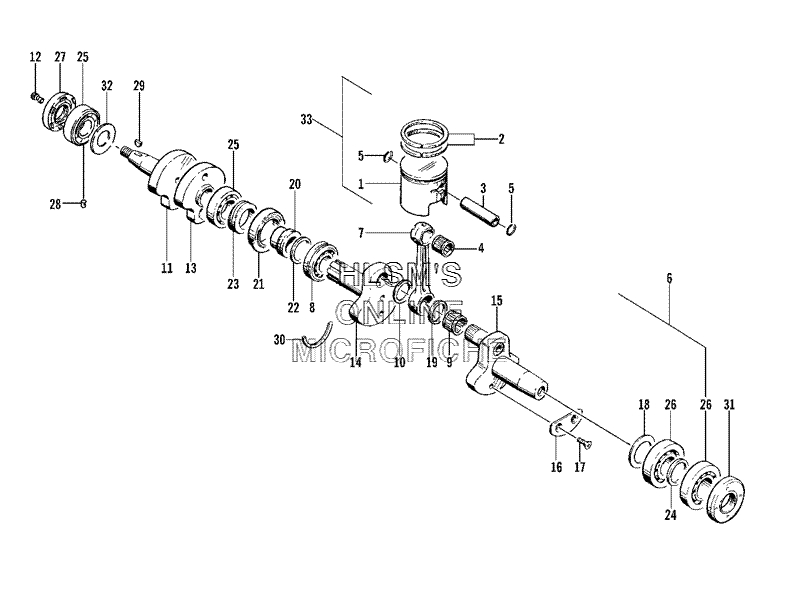

PISTON AND CRANKSHAFT для Arctic Cat Bearcat 340 - 2000 года выпуска
-
№АртикулНазвание
-
13005-130 PISTONPISTON
-
23004-825 RING SET, PISTONRING SET, PISTON
-
33003-274 PIN, PISTONPIN, PISTON
-
43002-805 BEARING, PISTON PINBEARING, PISTON PIN
-
53002-041 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63005-350 CRANKSHAFT ASSEMBLY (INC. 7-26)CRANKSHAFT ASSEMBLY (INC. 7-26)
-
73002-762 . ROD, CONNECTING. ROD, CONNECTING
-
83002-030 . BEARING, CRANKSHAFT. BEARING, CRANKSHAFT
-
93003-170 . BEARING, CRANK PIN. BEARING, CRANK PIN
-
103005-166 . WASHER, THRUST. WASHER, THRUST
-
113004-826 . CRANKSHAFT - RIGHT. CRANKSHAFT - RIGHT
-
123002-721 . BUSHING, TACHOMETER. BUSHING, TACHOMETER
-
133002-765 . WHEEL, CRANKSHAFT. WHEEL, CRANKSHAFT
-
143002-766 . CRANKSHAFT - MIDDLE. CRANKSHAFT - MIDDLE
-
153005-351 . CRANKSHAFT - LEFT (INC. 16-19). CRANKSHAFT - LEFT (INC. 16-19)
-
163004-746 BALANCERBALANCER
-
173004-284 SCREW, CAPSCREW, CAP
-
183002-025 WASHERWASHER
-
193004-747 WASHER, CRANK PINWASHER, CRANK PIN
-
203003-276 . RACE, SEAL. RACE, SEAL
-
213003-277 . RETAINER. RETAINER
-
223003-112 . RING. RING
-
233005-373 . GEAR, OIL PUMP DRIVE. GEAR, OIL PUMP DRIVE
-
243005-168 . SHIM. SHIM
-
253002-030 . BEARING, CRANKSHAFT. BEARING, CRANKSHAFT
-
263002-624 . BEARING, CRANKSHAFT. BEARING, CRANKSHAFT
-
273002-714 SEAL, OIL - CRANKSHAFT RIGHTSEAL, OIL - CRANKSHAFT RIGHT
-
283003-658 PIN, DOWELPIN, DOWEL
-
293004-540 KEYKEY
-
303002-042 C-RINGC-RING
-
313002-717 SEAL, OIL - CRANKSHAFT LEFTSEAL, OIL - CRANKSHAFT LEFT
-
323005-167 WASHER, THRUSTWASHER, THRUST
-
333005-472 PISTON ASSEMBLY (INC. 1, 2, 3, AND 5)PISTON ASSEMBLY (INC. 1, 2, 3, AND 5)
