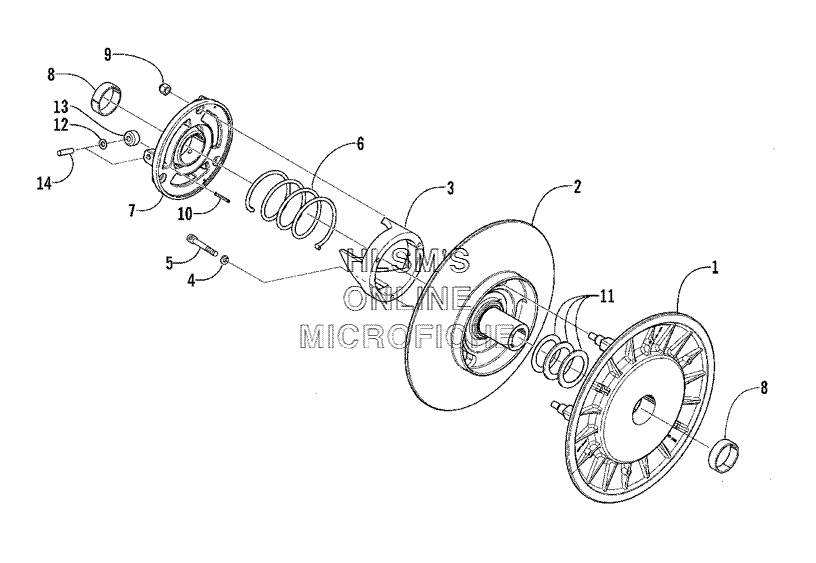

DRIVEN CLUTCH для Arctic Cat Bearcat 340 - 2000 года выпуска

  • №
    Артикул
    Название
  • 0726-037 DRIVEN CLUTCH ASSEMBLY
    DRIVEN CLUTCH ASSEMBLY
  • 1
    0748-019 SHEAVE, MOVABLE (INC. 8)
    SHEAVE, MOVABLE (INC. 8)
  • 2
    0748-020 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 3
    0648-014 BRACKET, TORQUE 49
    BRACKET, TORQUE 49
  • 3
    0648-026 BRACKET, TORQUE 42 (OVER 5,000 FT ALT.)
    BRACKET, TORQUE 42 (OVER 5,000 FT ALT.)
  • 4
    8051-152 WASHER, LOCK
    WASHER, LOCK
  • 5
    8005-404 SCREW, CAP
    SCREW, CAP
  • 6
    0648-012 SPRING, BLUE
    SPRING, BLUE
  • 7
    0748-024 PLATE, ROLLER
    PLATE, ROLLER
  • 7
    0748-018 PLATE ASSEMBLY, ROLLER (INC. 8,10,12,13,AND14)
    PLATE ASSEMBLY, ROLLER (INC. 8,10,12,13,AND14)
  • 8
    0648-009 . BEARING
    . BEARING
  • 9
    8040-426 NUT, LOCK
    NUT, LOCK
  • 10
    8070-224 PIN, SPRING
    PIN, SPRING
  • 11
    0148-199 WASHER, THRUST: 0.060 IN.
    WASHER, THRUST: 0.060 IN.
  • 11
    0148-198 WASHER, THRUST: 0.030 IN.
    WASHER, THRUST: 0.030 IN.
  • 12
    0648-082 WASHER, CAM ROLLER
    WASHER, CAM ROLLER
  • 13
    0648-079 ROLLER, CAM
    ROLLER, CAM
  • 14
    0648-097 PIN, CAM ROLLER
    PIN, CAM ROLLER
