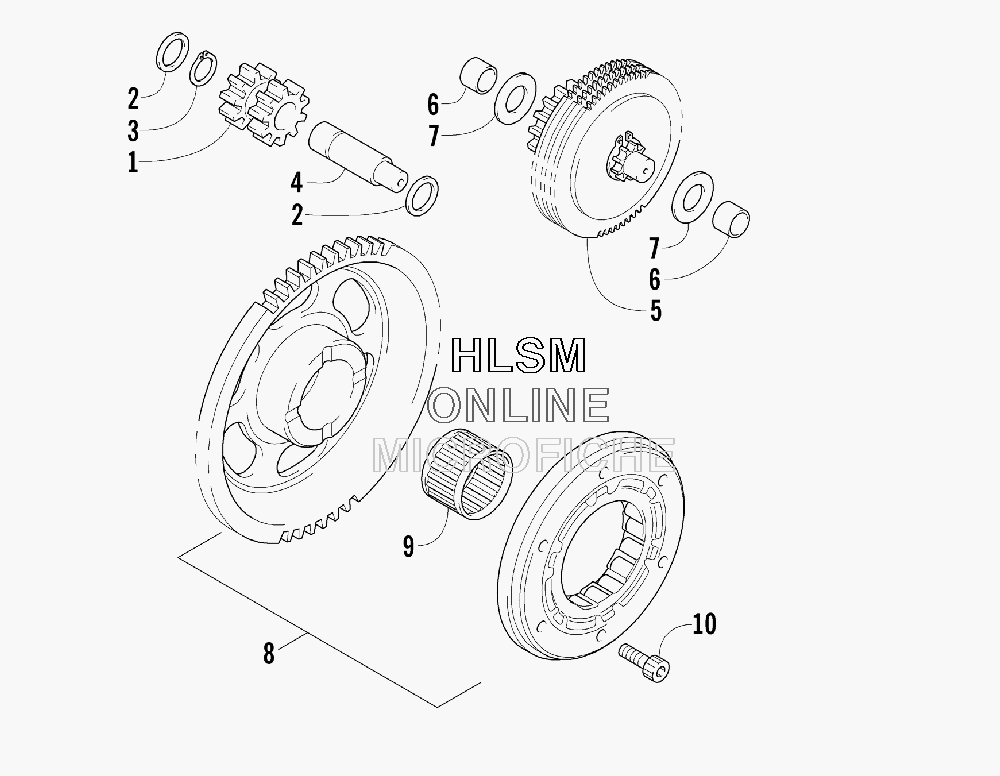

STARTER CLUTCH ASSEMBLY для Arctic Cat DVX 400 (BLACK/CAT GREEN) [A2008DVI2AUSE] - 2008 года выпуска
-
№АртикулНазвание
-
13402-924 GEAR, STARTER IDLE - NO. 1GEAR, STARTER IDLE - NO. 1
-
23423-699 WASHERWASHER
-
33423-358 CIRCLIP, REVERSE SHIFT CAM,FASTENERCIRCLIP, REVERSE SHIFT CAM,FASTENER
-
43423-738 PINPIN
-
53445-032 LIMITER, STARTER IDLE GEARLIMITER, STARTER IDLE GEAR
-
63402-125 BUSHINGBUSHING
-
73423-616 WASHER, THRUST, LIMITER GR SHAFT-M10X22WASHER, THRUST, LIMITER GR SHAFT-M10X22
-
83445-031 CLUTCH, STARTER (INC. 9)CLUTCH, STARTER (INC. 9)
-
93402-222 ...BEARING,ROLLER,M25X31X19...BEARING,ROLLER,M25X31X19
-
103423-226 BOLT, OIL HOSE 6X16BOLT, OIL HOSE 6X16
