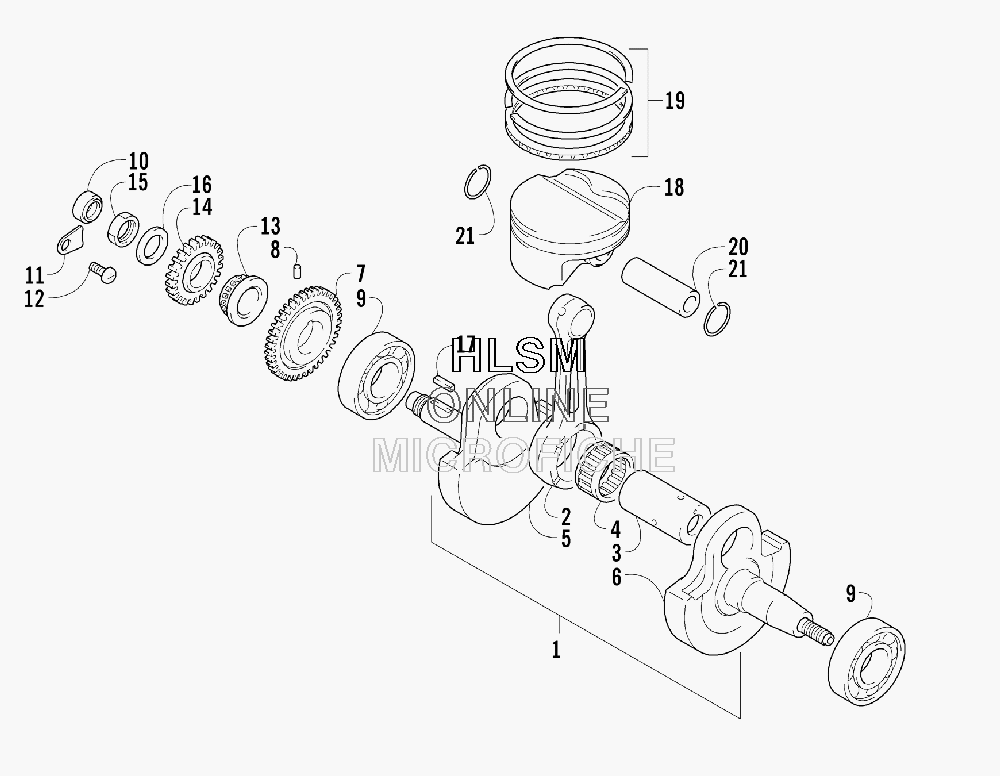

CRANKSHAFT ASSEMBLY для Arctic Cat DVX 400 (BLACK/CAT GREEN) [A2008DVI2AUSE] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3502-029 CRANKSHAFT ASSEMBLY (INC. 2-6)
    CRANKSHAFT ASSEMBLY (INC. 2-6)
  • 2
    3502-012 ...ROD, CONNECTING
    ...ROD, CONNECTING
  • 3
    3502-014 ...PIN
    ...PIN
  • 4
    3406-139 ...BEARING
    ...BEARING
  • 5
    3402-922 ...CRANKSHAFT - RIGHT
    ...CRANKSHAFT - RIGHT
  • 6
    3402-923 ...CRANKSHAFT - LEFT
    ...CRANKSHAFT - LEFT
  • 7
    3402-926 GEAR, BALANCER DRIVE
    GEAR, BALANCER DRIVE
  • 8
    3423-047 PIN, M5X8
    PIN, M5X8
  • 9
    3402-904 BEARING
    BEARING
  • 10
    3402-910 SEAL, OIL - RIGHT (14X24X6)
    SEAL, OIL - RIGHT (14X24X6)
  • 11
    3402-952 RETAINER, OIL SEAL - RIGHT
    RETAINER, OIL SEAL - RIGHT
  • 12
    3004-552 SCREW,6X12
    SCREW,6X12
  • 13
    3502-030 SPROCKET, CAM CHAIN DRIVE
    SPROCKET, CAM CHAIN DRIVE
  • 14
    3406-140 GEAR, PRIMARY DRIVE
    GEAR, PRIMARY DRIVE
  • 15
    3423-253 NUT, 18MM
    NUT, 18MM
  • 16
    3423-684 WASHER
    WASHER
  • 17
    3006-890 KEY, GEAR
    KEY, GEAR
  • 18
    3402-846 PISTON
    PISTON
  • 19
    3502-011 RING SET, PISTON
    RING SET, PISTON
  • 20
    3402-847 PIN, PISTON
    PIN, PISTON
  • 21
    3003-439 CIRCLIP, PISTON PIN, M20
    CIRCLIP, PISTON PIN, M20
