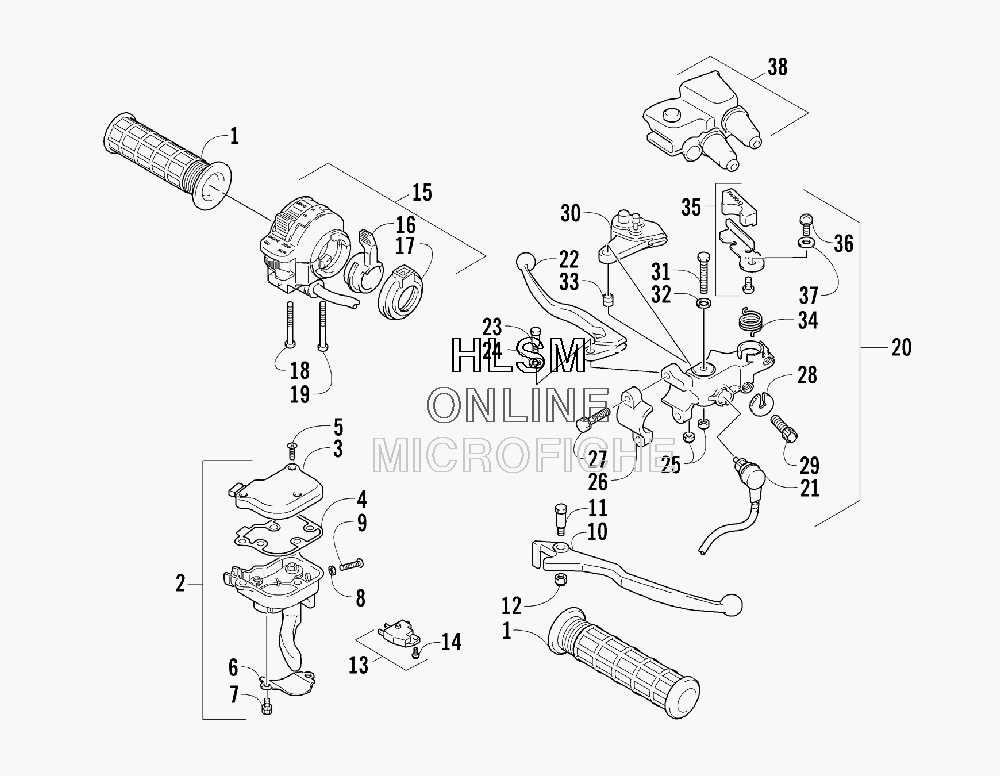

CONTROLS для Arctic Cat DVX 400 (BLACK/CAT GREEN) [A2008DVI2AUSE] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3405-037 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 2
    3405-042 CASE, THROTTLE (INC. 3-9)
    CASE, THROTTLE (INC. 3-9)
  • 3
    3405-035 ...CAP
    ...CAP
  • 4
    3423-582 ...GASKET
    ...GASKET
  • 5
    3423-581 ...SCREW
    ...SCREW
  • 6
    3405-036 ...HOLDER
    ...HOLDER
  • 7
    3423-580 ...BOLT
    ...BOLT
  • 8
    3004-853 ...NUT, 5MM
    ...NUT, 5MM
  • 9
    1691-018 ...SCREW
    ...SCREW
  • 10
    3402-886 LEVER, FRONT BRAKE
    LEVER, FRONT BRAKE
  • 11
    3423-583 BOLT, PIVOT
    BOLT, PIVOT
  • 12
    3423-748 NUT
    NUT
  • 13
    3409-037 SWITCH, STOP (INC. 14)
    SWITCH, STOP (INC. 14)
  • 14
    3423-750 ...SCREW
    ...SCREW
  • 15
    3509-010 SWITCH, CONTROL - ASSEMBLY (INC. 16-19)
    SWITCH, CONTROL - ASSEMBLY (INC. 16-19)
  • 16
    3409-009 ...LEVER, CHOKE
    ...LEVER, CHOKE
  • 17
    3409-010 ...COVER, CHOKE
    ...COVER, CHOKE
  • 18
    3423-196 ...SCREW, 5X40
    ...SCREW, 5X40
  • 19
    3423-197 ...SCREW, 5X45
    ...SCREW, 5X45
  • 20
    3446-419 LEVER, CLUTCH - ASSEMBLY (INC. 21-37)
    LEVER, CLUTCH - ASSEMBLY (INC. 21-37)
  • 21
    3409-041 ...SWITCH, CLUTCH
    ...SWITCH, CLUTCH
  • 22
    3402-964 ...LEVER
    ...LEVER
  • 23
    3423-751 ...BOLT, PIVOT
    ...BOLT, PIVOT
  • 24
    3423-746 ...WASHER
    ...WASHER
  • 25
    3423-623 ...NUT
    ...NUT
  • 26
    3502-025 ...HOLDER
    ...HOLDER
  • 27
    3004-507 ...BOLT, 6X20
    ...BOLT, 6X20
  • 28
    3402-963 ...NUT, ADJUSTER
    ...NUT, ADJUSTER
  • 29
    3423-749 ...BOLT, ADJUSTER
    ...BOLT, ADJUSTER
  • 30
    3402-968 ...LOCK, PARKING BRAKE
    ...LOCK, PARKING BRAKE
  • 31
    3423-745 ...BOLT, PARKING BRAKE LOCK
    ...BOLT, PARKING BRAKE LOCK
  • 32
    3423-747 ...WASHER
    ...WASHER
  • 33
    3402-965 ...SPACER
    ...SPACER
  • 34
    3402-966 ...SPRING, RETURN
    ...SPRING, RETURN
  • 35
    3402-967 ...KNOB, PARKING BRAKE LOCK
    ...KNOB, PARKING BRAKE LOCK
  • 36
    3423-753 ...SCREW, PARKING BRAKE LOCK KNOB
    ...SCREW, PARKING BRAKE LOCK KNOB
  • 37
    3423-752 ...WASHER
    ...WASHER
  • 38
    3406-019 COVER, CLUTCH LEVER
    COVER, CLUTCH LEVER
