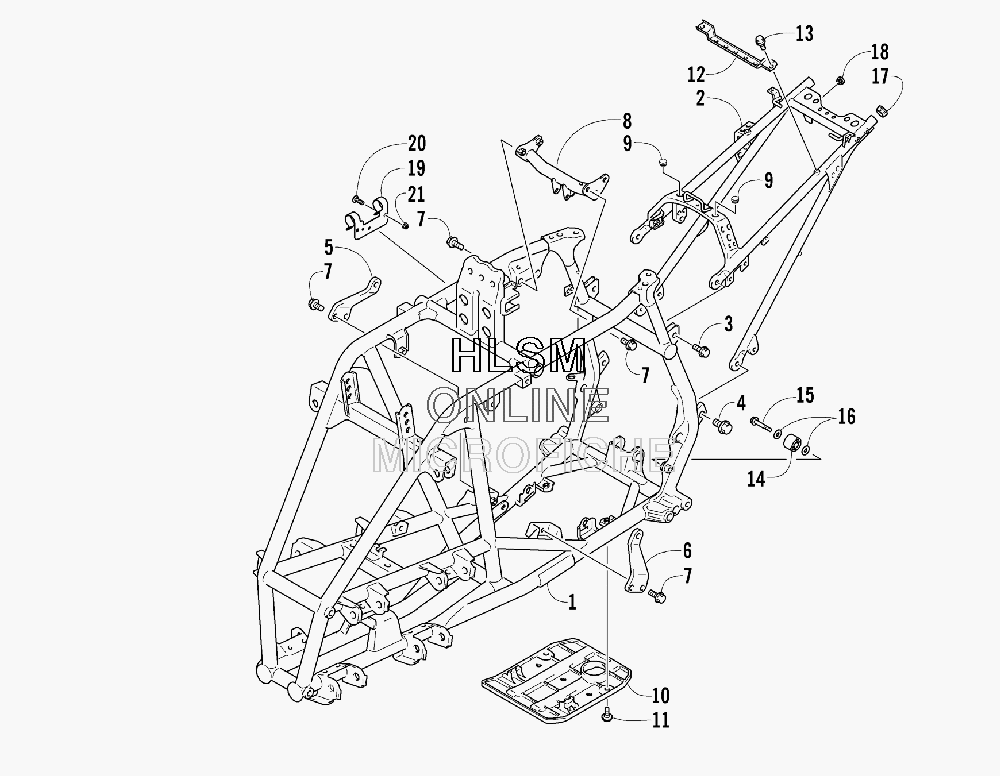

FRAME ASSEMBLY для Arctic Cat DVX 400 (BLACK/CAT GREEN) [A2008DVI2AUSE] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3406-146 FRAME COMP (GREY)
    FRAME COMP (GREY)
  • 2
    3406-147 RAIL, SEAT - SILVER
    RAIL, SEAT - SILVER
  • 3
    3423-779 BOLT
    BOLT
  • 4
    3423-478 BOLT, M10 X 20
    BOLT, M10 X 20
  • 5
    3406-105 PLATE, MOUNTING - ENGINE - RIGHT
    PLATE, MOUNTING - ENGINE - RIGHT
  • 6
    3406-106 PLATE, MOUNTING - ENGINE - LEFT
    PLATE, MOUNTING - ENGINE - LEFT
  • 7
    3006-544 BOLT
    BOLT
  • 8
    3406-168 PLATE, MOUNTING - ENGINE - UPPER
    PLATE, MOUNTING - ENGINE - UPPER
  • 9
    3406-016 CUSHION, SEAT MOUNT - FRONT
    CUSHION, SEAT MOUNT - FRONT
  • 10
    3406-006 PROTECTOR, ENGINE
    PROTECTOR, ENGINE
  • 11
    3423-653 BOLT
    BOLT
  • 12
    3406-162 PLATE, BATTERY
    PLATE, BATTERY
  • 13
    3005-985 SCREW, CKP SENSOR
    SCREW, CKP SENSOR
  • 14
    3446-381 ROLLER, CHAIN CONTROL
    ROLLER, CHAIN CONTROL
  • 15
    3423-631 BOLT
    BOLT
  • 16
    3423-696 WASHER
    WASHER
  • 17
    3406-013 CAP, SEAT RAIL
    CAP, SEAT RAIL
  • 18
    0423-534 GROMMET, TAILLIGHT
    GROMMET, TAILLIGHT
  • 19
    1506-413 BRACKET, MOUNTING - REVERSE SWITCH
    BRACKET, MOUNTING - REVERSE SWITCH
  • 20
    0423-419 SCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
    SCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
  • 21
    8424-602 NUT, HEX-FLG M6X1.0 CL8 Z & Y
    NUT, HEX-FLG M6X1.0 CL8 Z & Y
