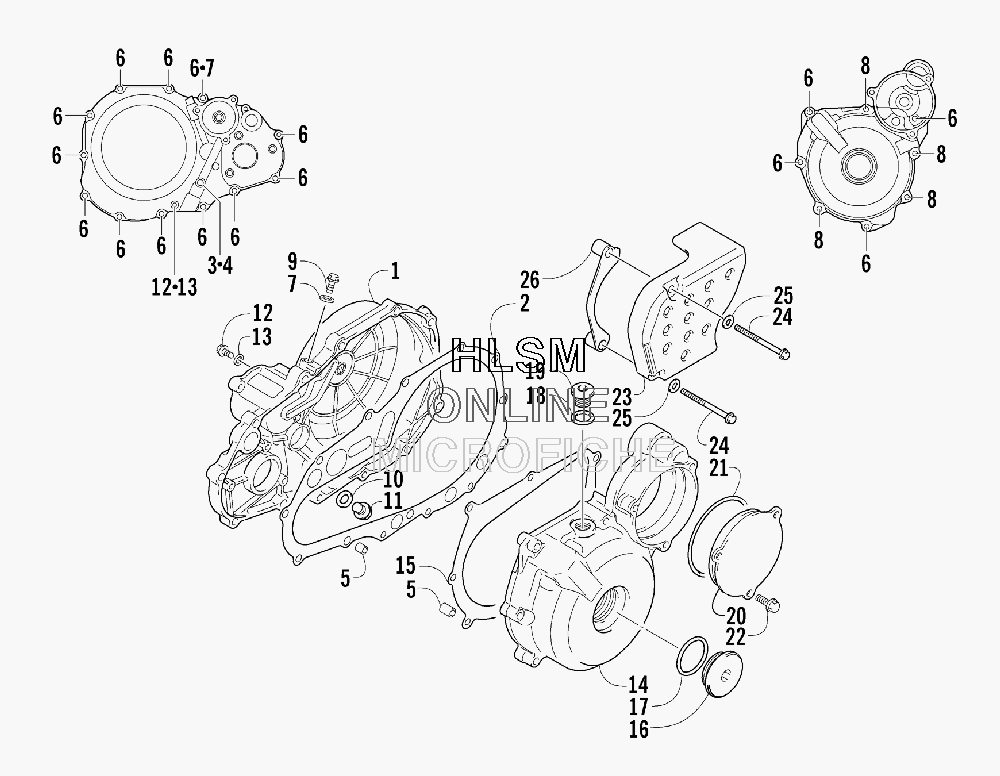

CRANKCASE COVER ASSEMBLY для Arctic Cat DVX 400 (BLACK/CAT GREEN) [A2008DVI2AUSE] - 2008 года выпуска`
-
№АртикулНазвание
-
13402-921 COVER, CLUTCHCOVER, CLUTCH
-
23446-357 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
33423-540 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
43402-436 GASKET, OIL GALLERY PLUGGASKET, OIL GALLERY PLUG
-
53423-610 PINPIN
-
63423-162 BOLT, M6X30BOLT, M6X30
-
73003-290 GASKET, CHECK VALVE, 6MMGASKET, CHECK VALVE, 6MM
-
83423-098 BOLT, CYL HEADBOLT, CYL HEAD
-
93423-112 BOLT, RECOIL STARTER-M6X12BOLT, RECOIL STARTER-M6X12
-
103402-011 GASKET, OIL DRAIN PLUG- M12.1X16.2X3.7GASKET, OIL DRAIN PLUG- M12.1X16.2X3.7
-
113423-705 PLUG, OIL GALLERY (12X10)PLUG, OIL GALLERY (12X10)
-
123004-339 BOLT, OIL LEVELBOLT, OIL LEVEL
-
133402-009 WASHER, DRIVEN, M6.2X11X1.2WASHER, DRIVEN, M6.2X11X1.2
-
143409-042 COVER, MAGNETOCOVER, MAGNETO
-
153409-023 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
163402-898 PLUG, CRANK HOLEPLUG, CRANK HOLE
-
173423-061 O RING D:3.1 ID:32.7O RING D:3.1 ID:32.7
-
183402-012 GASKET, OIL PLUG,M13.8X18.8X0.4GASKET, OIL PLUG,M13.8X18.8X0.4
-
193402-040 PLUG,14MMPLUG,14MM
-
203409-022 COVER, STARTER IDLE GEARCOVER, STARTER IDLE GEAR
-
213423-872 O-RINGO-RING
-
223423-328 BOLT, M6X16BOLT, M6X16
-
233435-098 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
243007-488 BOLTBOLT
-
253423-672 WASHER (6.5X14X2)WASHER (6.5X14X2)
-
263402-962 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
