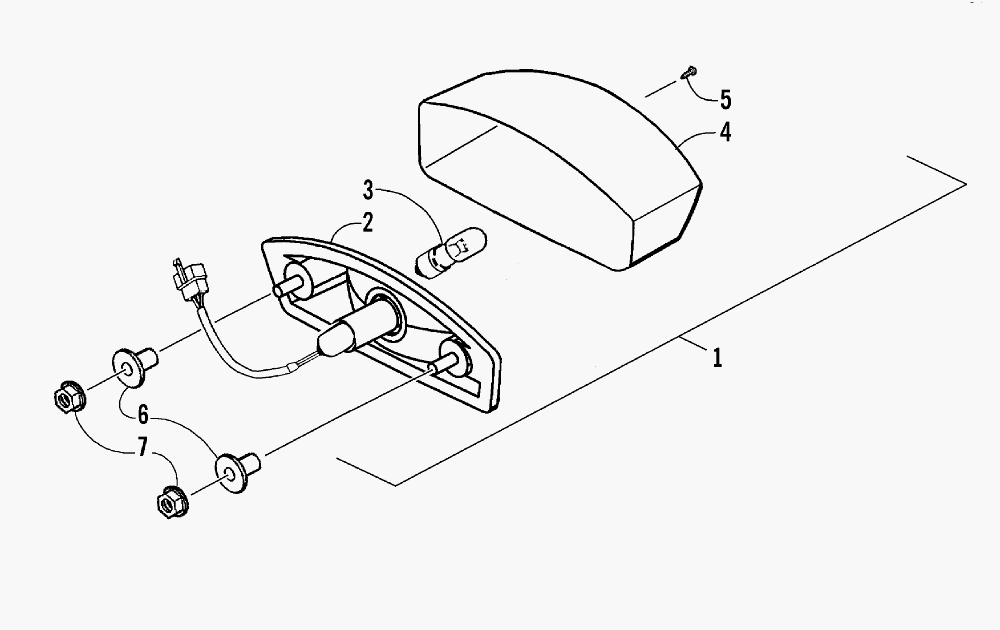

TAILLIGHT ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска`
-
№АртикулНазвание
-
13303-420 TAILLIGHT - ASSEMBLY (INC. 2-5)TAILLIGHT - ASSEMBLY (INC. 2-5)
-
23303-422 ...BASE, TAILLIGHT...BASE, TAILLIGHT
-
33303-444 ...BULB TAIL & STOP (12V21W/5W)...BULB TAIL & STOP (12V21W/5W)
-
43303-421 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
53304-537 ...SCREW (M4X35L)...SCREW (M4X35L)
-
63303-226 COLLAR, FRONT FENDERCOLLAR, FRONT FENDER
-
73303-331 NUT, FLANGE (6MM)NUT, FLANGE (6MM)
