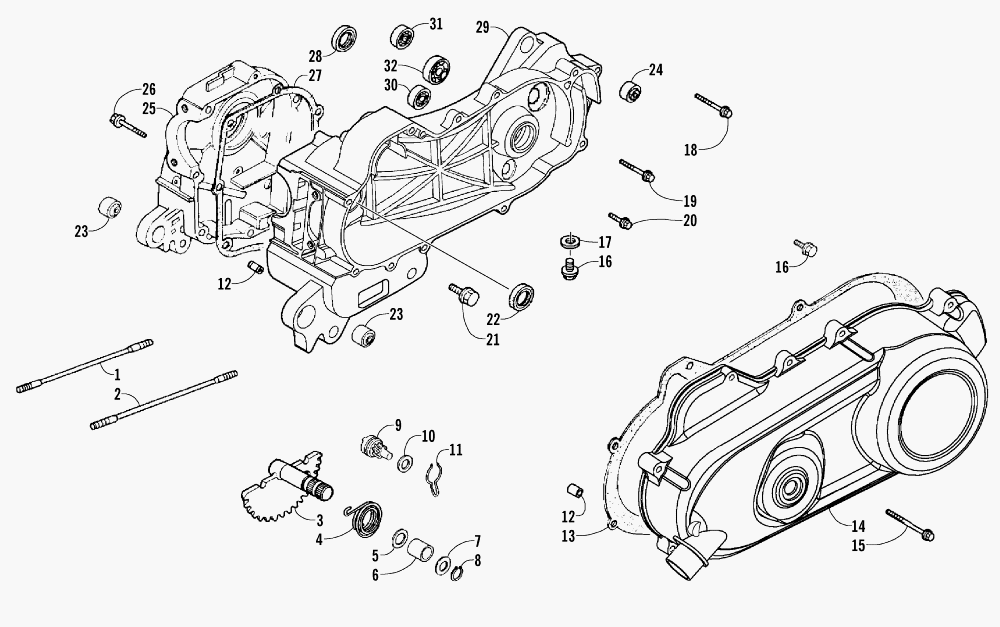

CRANKCASE ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-579 BOLT, STUD (7*168MM)
    BOLT, STUD (7*168MM)
  • 2
    3303-580 BOLT, STUD (7*176MM)
    BOLT, STUD (7*176MM)
  • 3
    3303-119 SPINDLE, KICK STARTER
    SPINDLE, KICK STARTER
  • 4
    3303-122 SPRING, RETURN - KICK STARTER
    SPRING, RETURN - KICK STARTER
  • 5
    3303-121 COLLAR, BOSS - KICK STARTER
    COLLAR, BOSS - KICK STARTER
  • 6
    3303-120 BUSHING, SPINDLE - KICK STARTER
    BUSHING, SPINDLE - KICK STARTER
  • 7
    3303-276 WASHER, SPINDLE - KICK STARTER
    WASHER, SPINDLE - KICK STARTER
  • 8
    3303-345 CIRCLIP (14MM)
    CIRCLIP (14MM)
  • 9
    3303-548 GEAR, DRIVEN - KICK STARTER
    GEAR, DRIVEN - KICK STARTER
  • 10
    3303-272 WASHER, THRUST (10MM)
    WASHER, THRUST (10MM)
  • 11
    3303-117 SPRING, DRIVEN - KICK STARTER
    SPRING, DRIVEN - KICK STARTER
  • 12
    3303-341 PIN, DOWEL (8*14MM)
    PIN, DOWEL (8*14MM)
  • 12
    3303-343 PIN, DOWEL (10*20MM)
    PIN, DOWEL (10*20MM)
  • 13
    3303-482 GASKET, CRANKCASE COVER - LEFT
    GASKET, CRANKCASE COVER - LEFT
  • 14
    3303-476 COVER, CRANKCASE - LEFT
    COVER, CRANKCASE - LEFT
  • 15
    3303-386 BOLT, FLANGE (6*35MM)
    BOLT, FLANGE (6*35MM)
  • 16
    3303-365 BOLT, FLANGE (8*12MM)
    BOLT, FLANGE (8*12MM)
  • 17
    3303-591 WASHER (8MM)
    WASHER (8MM)
  • 18
    3303-615 BOLT, FLANGE (8*40MM)
    BOLT, FLANGE (8*40MM)
  • 19
    3303-616 BOLT, FLANGE (8*35MM)
    BOLT, FLANGE (8*35MM)
  • 20
    3303-381 BOLT, FLANGE (6*12MM)
    BOLT, FLANGE (6*12MM)
  • 21
    3303-052 BOLT, DRAIN PLUG - ASSEMBLY
    BOLT, DRAIN PLUG - ASSEMBLY
  • 22
    3303-296 SEAL, OIL (19.8*30*5)
    SEAL, OIL (19.8*30*5)
  • 23
    3303-402 BUSHING, RUBBER - ENGINE HANGER
    BUSHING, RUBBER - ENGINE HANGER
  • 24
    3303-403 BUSHING, RUBBER - REAR CUSHION
    BUSHING, RUBBER - REAR CUSHION
  • 25
    3303-471 CRANKCASE, SET - RIGHT
    CRANKCASE, SET - RIGHT
  • 26
    3303-387 BOLT, FLANGE (6*45MM)
    BOLT, FLANGE (6*45MM)
  • 27
    3303-472 GASKET, CRANKCASE - RIGHT
    GASKET, CRANKCASE - RIGHT
  • 28
    3303-600 SEAL, OIL (17*30*6)
    SEAL, OIL (17*30*6)
  • 29
    3303-473 CRANKCASE, SET - LEFT
    CRANKCASE, SET - LEFT
  • 30
    3303-596 BEARING, BALL (6201)
    BEARING, BALL (6201)
  • 31
    3303-597 BEARING, BALL (6203/17*40*12)
    BEARING, BALL (6203/17*40*12)
  • 32
    3303-464 BEARING, BALL (6203/C3)
    BEARING, BALL (6203/C3)
