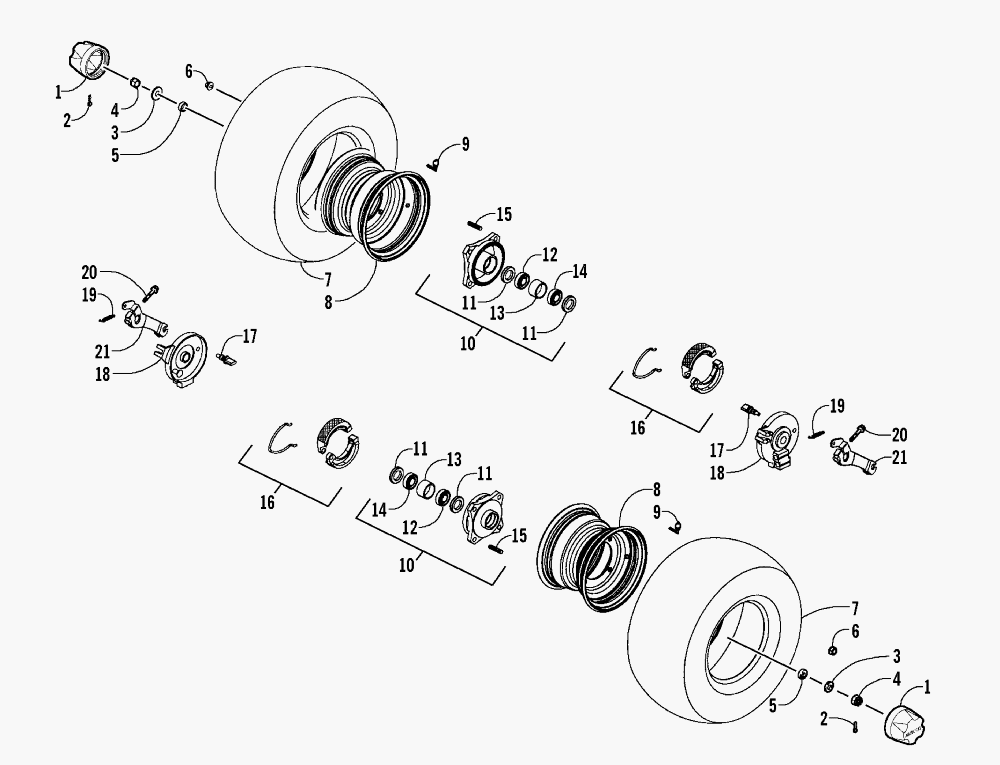

FRONT WHEEL AND BRAKE ASSEMBLIES для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-430 CAP, WHEEL SHAFT
    CAP, WHEEL SHAFT
  • 2
    3303-470 PIN, COTTER (3.0*25)
    PIN, COTTER (3.0*25)
  • 3
    3303-279 WASHER (12 MM)
    WASHER (12 MM)
  • 4
    3303-330 NUT, FLANGE CASTLE (14MM)
    NUT, FLANGE CASTLE (14MM)
  • 5
    3303-164 COLLAR, WHEEL - FRONT
    COLLAR, WHEEL - FRONT
  • 6
    3303-266 NUT, FLANGE (10MM)
    NUT, FLANGE (10MM)
  • 7
    3303-569 TIRE - ASSEMBLY
    TIRE - ASSEMBLY
  • 8
    3304-524 RIM - ASSEMBLY (INC. 9)
    RIM - ASSEMBLY (INC. 9)
  • 10
    3303-165 HUB, FRONT - ASSEMBLY (INC. 11-15)
    HUB, FRONT - ASSEMBLY (INC. 11-15)
  • 11
    3303-456 ...SEAL, DUST (22*35*7)
    ...SEAL, DUST (22*35*7)
  • 12
    3303-468 ...BEARING, BALL - RADIAL (6003)
    ...BEARING, BALL - RADIAL (6003)
  • 13
    3303-445 ...COLLAR, FRONT DISC
    ...COLLAR, FRONT DISC
  • 14
    3303-467 ...BEARING, BALL - RADIAL (6002)
    ...BEARING, BALL - RADIAL (6002)
  • 15
    3303-463 ...BOLT, STUD (10*17MM)
    ...BOLT, STUD (10*17MM)
  • 16
    3303-169 SHOE, FRONT - ASSEMBLY
    SHOE, FRONT - ASSEMBLY
  • 17
    3303-170 CAM, FRONT BRAKE
    CAM, FRONT BRAKE
  • 18
    3303-168 PANEL - FRONT - RIGHT
    PANEL - FRONT - RIGHT
  • 18
    3303-176 PANEL - FRONT - LEFT
    PANEL - FRONT - LEFT
  • 19
    3303-172 SPRING, RETURN
    SPRING, RETURN
  • 20
    3303-355 BOLT, FLANGE (5*24MM)
    BOLT, FLANGE (5*24MM)
  • 21
    3303-171 ARM, BRAKE - RIGHT
    ARM, BRAKE - RIGHT
  • 21
    3303-177 ARM, BRAKE - LEFT
    ARM, BRAKE - LEFT
