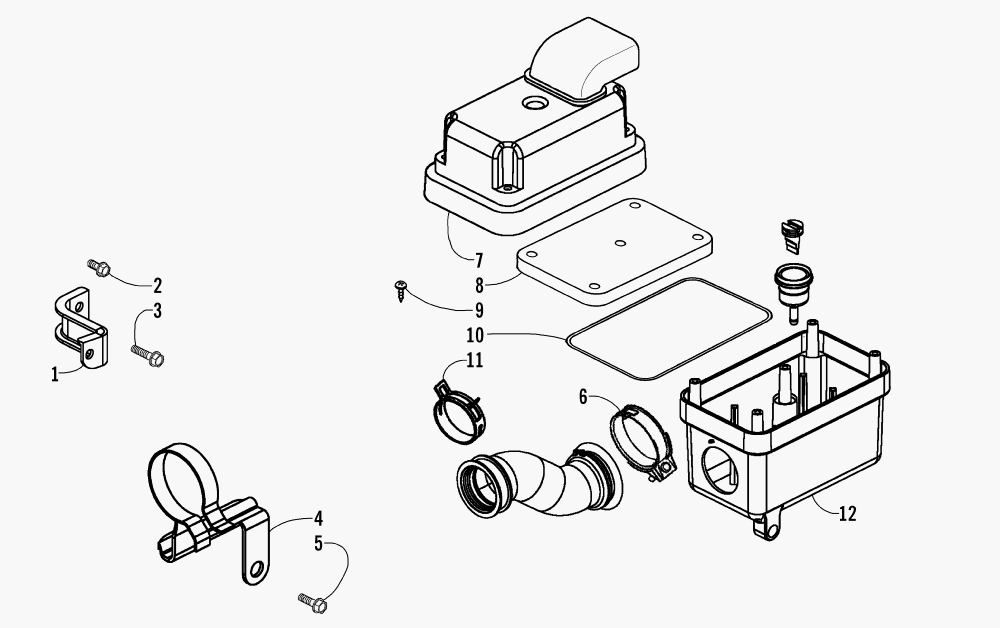

AIR INTAKE ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-005 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 2
    3303-357 BOLT, FLANGE (6*12MM)
    BOLT, FLANGE (6*12MM)
  • 3
    3303-361 BOLT, FLANGE (6*30MM)
    BOLT, FLANGE (6*30MM)
  • 4
    3303-287 CLAMP
    CLAMP
  • 5
    3303-385 BOLT, FLANGE (6*28MM)
    BOLT, FLANGE (6*28MM)
  • 6
    3303-288 CLAMP
    CLAMP
  • 7
    3303-062 COVER, AIR CLEANER
    COVER, AIR CLEANER
  • 8
    3303-060 ELEMENT, AIR CLEANER
    ELEMENT, AIR CLEANER
  • 9
    3303-322 SCREW, SELF-TAPPING (5*20MM)
    SCREW, SELF-TAPPING (5*20MM)
  • 10
    3303-063 SEAL, AIR CLEANER
    SEAL, AIR CLEANER
  • 11
    3303-592 CLAMP
    CLAMP
  • 12
    3303-061 CASE, AIR CLEANER
    CASE, AIR CLEANER
