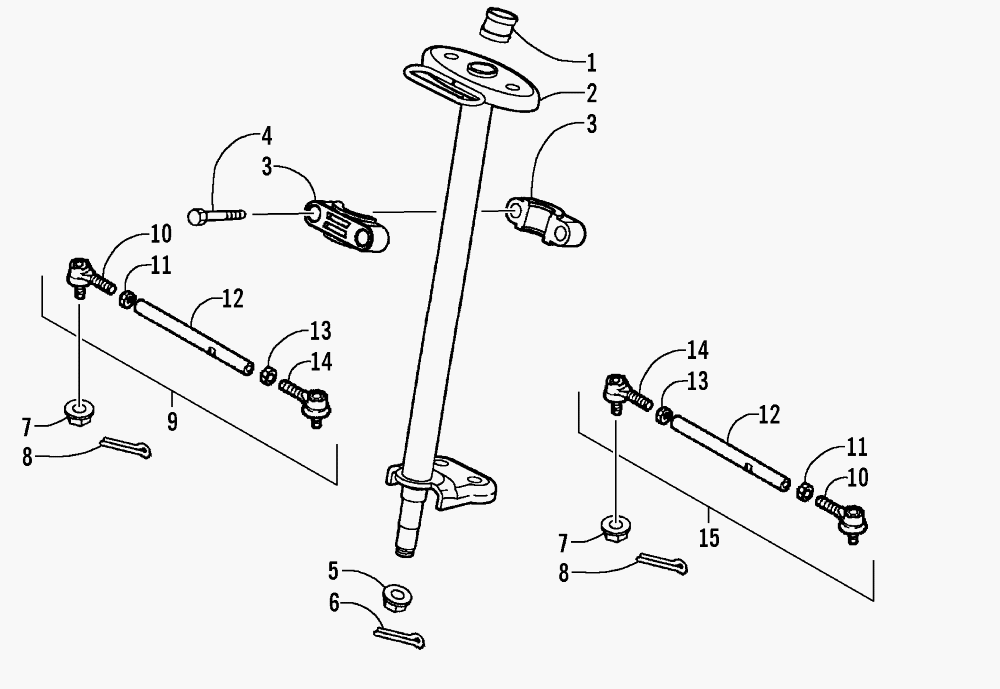

STEERING POST ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-214 SLEEVE, STEERING POST
    SLEEVE, STEERING POST
  • 2
    3303-572 POST, STEERING
    POST, STEERING
  • 3
    3303-213 HOLDER, STEERING POST
    HOLDER, STEERING POST
  • 4
    3303-372 BOLT, FLANGE (8*60MM)
    BOLT, FLANGE (8*60MM)
  • 5
    3304-032 NUT, FLANGE (14MM)
    NUT, FLANGE (14MM)
  • 6
    3303-470 PIN, COTTER (3.0*25)
    PIN, COTTER (3.0*25)
  • 7
    3303-266 NUT, FLANGE (10MM)
    NUT, FLANGE (10MM)
  • 8
    3303-621 PIN, COTTER (PIN SPLIT 2.5*20)
    PIN, COTTER (PIN SPLIT 2.5*20)
  • 9
    3303-448 TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
    TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
  • 10
    3303-223 ...BALL JOINT, TIE ROD - RIGHT
    ...BALL JOINT, TIE ROD - RIGHT
  • 11
    3303-327 ...NUT, HEX (10MM)
    ...NUT, HEX (10MM)
  • 12
    3303-222 ...TIE ROD
    ...TIE ROD
  • 13
    3303-326 ...NUT, HEX (10MM)
    ...NUT, HEX (10MM)
  • 14
    3303-224 ...BALL JOINT, TIE ROD - LEFT
    ...BALL JOINT, TIE ROD - LEFT
  • 15
    3303-449 TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
    TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
