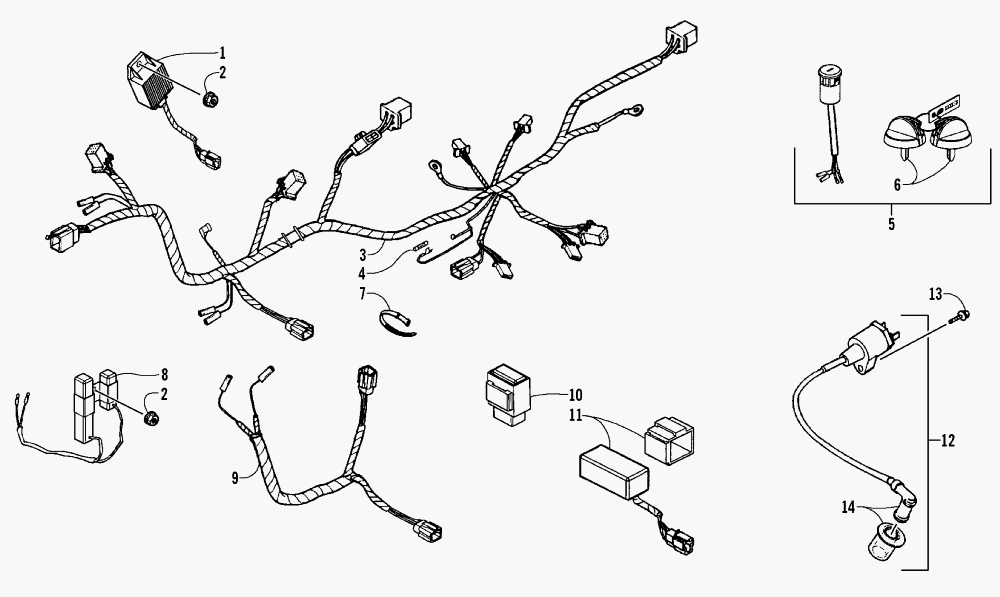

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-132 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 2
    3303-331 NUT, FLANGE (6MM)
    NUT, FLANGE (6MM)
  • 3
    3303-561 HARNESS, MAIN (INC. 4)
    HARNESS, MAIN (INC. 4)
  • 4
    3303-399 ...FUSE
    ...FUSE
  • 5
    3303-423 KEY - SET (INC. 6)
    KEY - SET (INC. 6)
  • 7
    3304-060 CABLE TIE
    CABLE TIE
  • 8
    3303-142 RESISTOR
    RESISTOR
  • 9
    3303-562 SUB-CORD
    SUB-CORD
  • 10
    3303-565 RELAY, STARTER
    RELAY, STARTER
  • 11
    3303-550 CDI ASSEMBLY AND SPEED CONTROL
    CDI ASSEMBLY AND SPEED CONTROL
  • 12
    3303-125 COIL ASSEMBLY - IGNITION (INC. 13-14)
    COIL ASSEMBLY - IGNITION (INC. 13-14)
  • 13
    3303-252 ...BOLT, FLANGE (5*22)
    ...BOLT, FLANGE (5*22)
  • 14
    3303-126 ...CAP, NOISE SUPPRESSOR - ASSEMBLY
    ...CAP, NOISE SUPPRESSOR - ASSEMBLY
