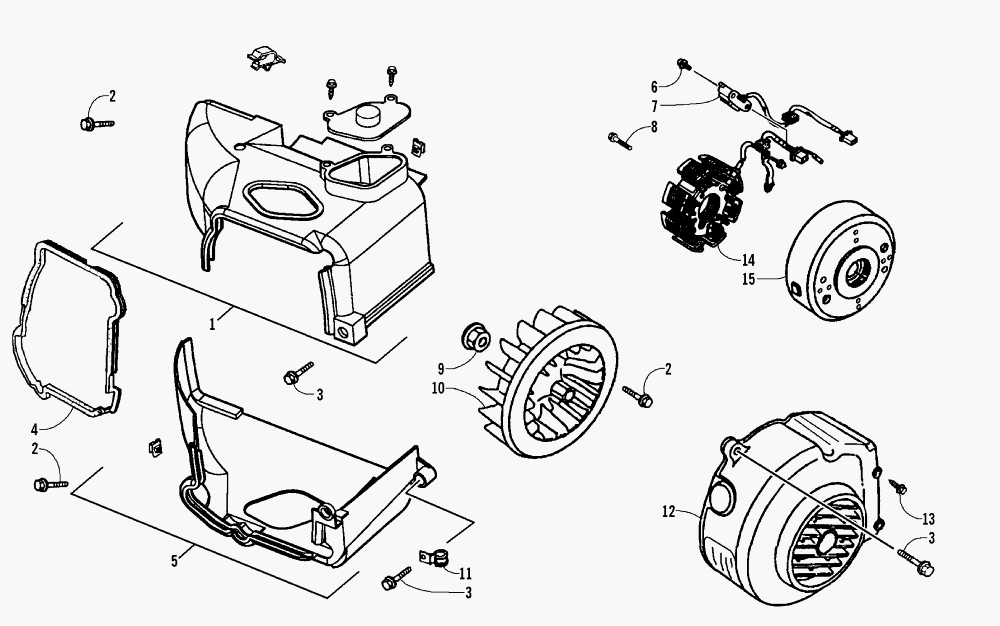

STATOR- FLYWHEEL- AND ENGINE SHROUD ASSEMBLIES для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-520 SHROUD B - ASSEMBLY
    SHROUD B - ASSEMBLY
  • 2
    3303-382 BOLT, FLANGE (6*16MM)
    BOLT, FLANGE (6*16MM)
  • 3
    3303-384 BOLT, FLANGE (6*25MM)
    BOLT, FLANGE (6*25MM)
  • 4
    3303-517 SEAL, SHROUD
    SEAL, SHROUD
  • 5
    3303-518 SHROUD A - ASSEMBLY
    SHROUD A - ASSEMBLY
  • 6
    3303-308 BOLT (5*12MM)
    BOLT (5*12MM)
  • 7
    3303-562 SUB-HARNESS
    SUB-HARNESS
  • 8
    3303-619 BOLT, FLANGE (6*22MM)
    BOLT, FLANGE (6*22MM)
  • 9
    3303-333 NUT, FLANGE (10MM)
    NUT, FLANGE (10MM)
  • 10
    3303-515 FAN, COOLING
    FAN, COOLING
  • 11
    3303-443 CLIP, VACUUM TUBE
    CLIP, VACUUM TUBE
  • 12
    3303-516 COVER, FAN - ASSEMBLY
    COVER, FAN - ASSEMBLY
  • 13
    3303-606 SCREW, SELF-TAPPING (5X16)
    SCREW, SELF-TAPPING (5X16)
  • 14
    3303-554 STATOR
    STATOR
  • 15
    3303-551 FLYWHEEL
    FLYWHEEL
