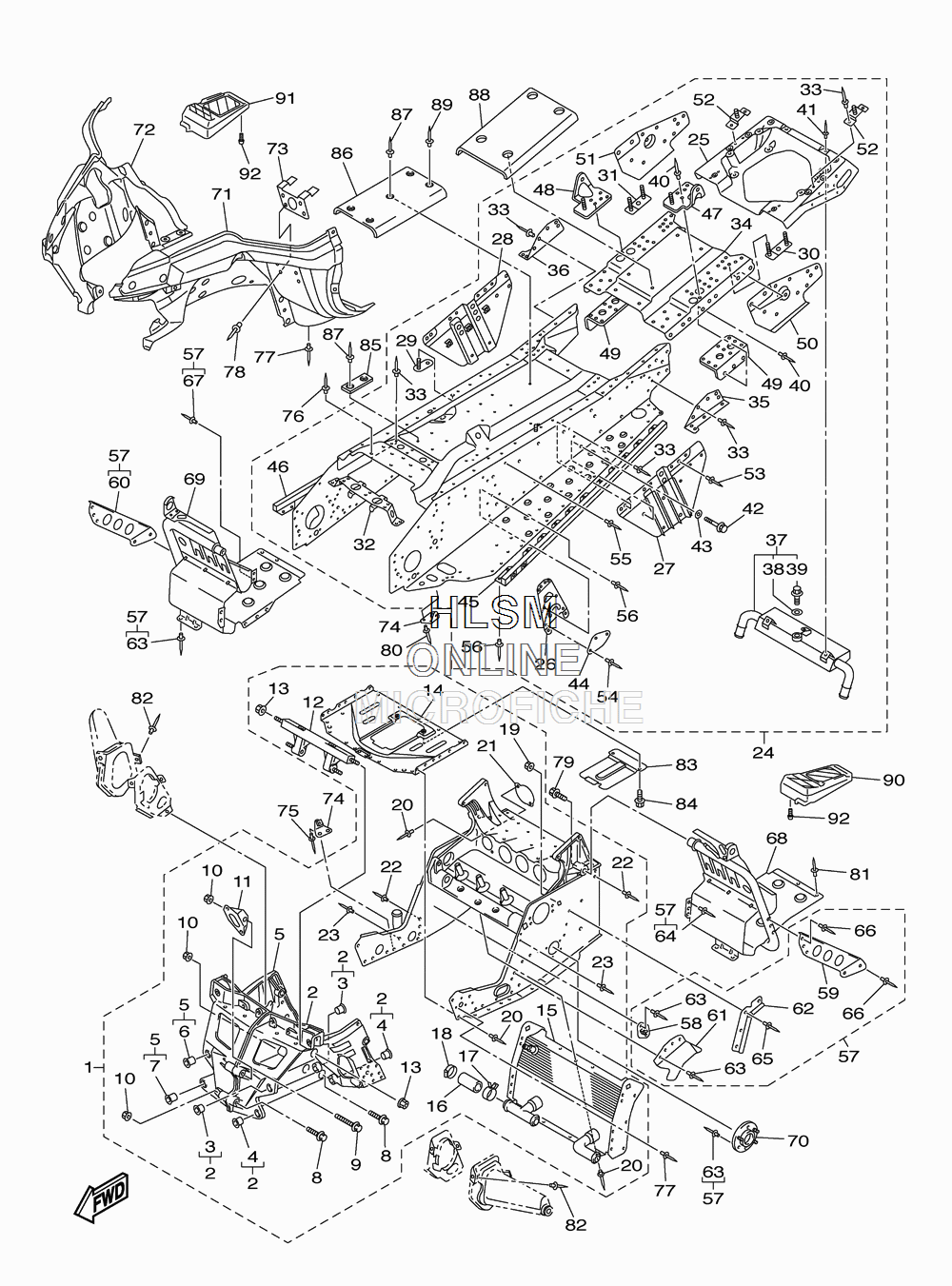

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VENTURE - 2012 года выпуска
-
№АртикулНазвание
-
18ET-21940-20-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-13-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-2191E-19-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-01-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FR-2193A-01-00 ...PROTECTOR...PROTECTOR
-
158HF-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
168FA-12551-00-00 ...HOSE 7...HOSE 7
-
1790467-28046-00 ...CLIP...CLIP
-
1890450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1995607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2090267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
218ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2290267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
2390267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
248ET-21950-21-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268ET-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
278ET-21944-00-00 ...BRACKET,RR.TRACK SUSPENTION...BRACKET,RR.TRACK SUSPENTION
-
288ET-21954-00-00 ...BRACKET,RR.TRACK SUSPENTION...BRACKET,RR.TRACK SUSPENTION
-
298CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
308ET-2194X-00-00 ...BRACKET 1...BRACKET 1
-
318ET-2195X-00-00 ...BRACKET 2...BRACKET 2
-
328ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3390267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
348ET-21916-01-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
358ET-21963-00-00 ...PATCH 3...PATCH 3
-
368ET-21964-00-00 ...PATCH 4...PATCH 4
-
378ET-1241A-02-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
3890210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
3995812-06016-00 ......BOLT, FLANGE......BOLT, FLANGE
-
4090267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
4190267-48095-00 ...RIVET, BLIND (4.8X12.6 SILVER)...RIVET, BLIND (4.8X12.6 SILVER)
-
4295814-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4390201-10064-00 ...WASHER, PLATE...WASHER, PLATE
-
448ET-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
458ET-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
468ET-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
478ET-21946-00-00 ...BRACKET, SEAT FITTING...BRACKET, SEAT FITTING
-
488ET-21956-00-00 ...BRACKET, SEAT FITTING 1...BRACKET, SEAT FITTING 1
-
498ET-21988-00-00 ...PATCH 8...PATCH 8
-
508ET-21989-00-00 ...PATCH 9...PATCH 9
-
518ET-21997-00-00 ...PATCH 10...PATCH 10
-
528ET-2196G-00-00 ...BRACKET 4...BRACKET 4
-
5390267-48016-00 .RIVET, BLIND.RIVET, BLIND
-
5490267-48176-00 .RIVET, BLIND.RIVET, BLIND
-
5590267-48023-00 .RIVET, BLIND (4.8X12.1 YELLOW).RIVET, BLIND (4.8X12.1 YELLOW)
-
5690267-48177-00 .RIVET, BLIND.RIVET, BLIND
-
578FK-W2195-21-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
588CR-21939-01-00 .BRACKET, CHAIN HOUSING.BRACKET, CHAIN HOUSING
-
598FU-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
608FU-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
618FP-2198G-01-00 ...COVER 2...COVER 2
-
628FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
6390267-47195-00 .RIVET, BLIND (4.7X16.4 YELLOW).RIVET, BLIND (4.7X16.4 YELLOW)
-
6490267-47197-00 .RIVET, BLIND.RIVET, BLIND
-
6590267-48018-00 .RIVET, BLIND.RIVET, BLIND
-
6690267-48177-00 .RIVET, BLIND.RIVET, BLIND
-
6790267-47186-00 .RIVET, BLIND.RIVET, BLIND
-
688FU-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
698FU-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
708EK-21920-01-00 HOUSING, REINF SUB-ASSY (LEFT)HOUSING, REINF SUB-ASSY (LEFT)
-
718ES-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
728FA-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
738FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
748FA-2196F-00-00 BRACKET 3BRACKET 3
-
7590267-48083-00 RIVET, BLIND (4.8X15.2 SILVER)RIVET, BLIND (4.8X15.2 SILVER)
-
7690267-48169-00 RIVET, BLINDRIVET, BLIND
-
7790267-48018-00 RIVET, BLINDRIVET, BLIND
-
7890267-47200-00 RIVET, BLINDRIVET, BLIND
-
7995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8090267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
8190267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
8290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
838FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8492012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
858FA-21998-00-00 SPACERSPACER
-
868FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8790267-48059-00 RIVET, BLINDRIVET, BLIND
-
888ET-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8990267-47004-00 RIVET, BLIND (4.7X13.1 YELLOW)RIVET, BLIND (4.7X13.1 YELLOW)
-
908DM-27431-02-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
918DM-27441-02-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
9297702-50020-00 SCREW, TAPPINGSCREW, TAPPING
