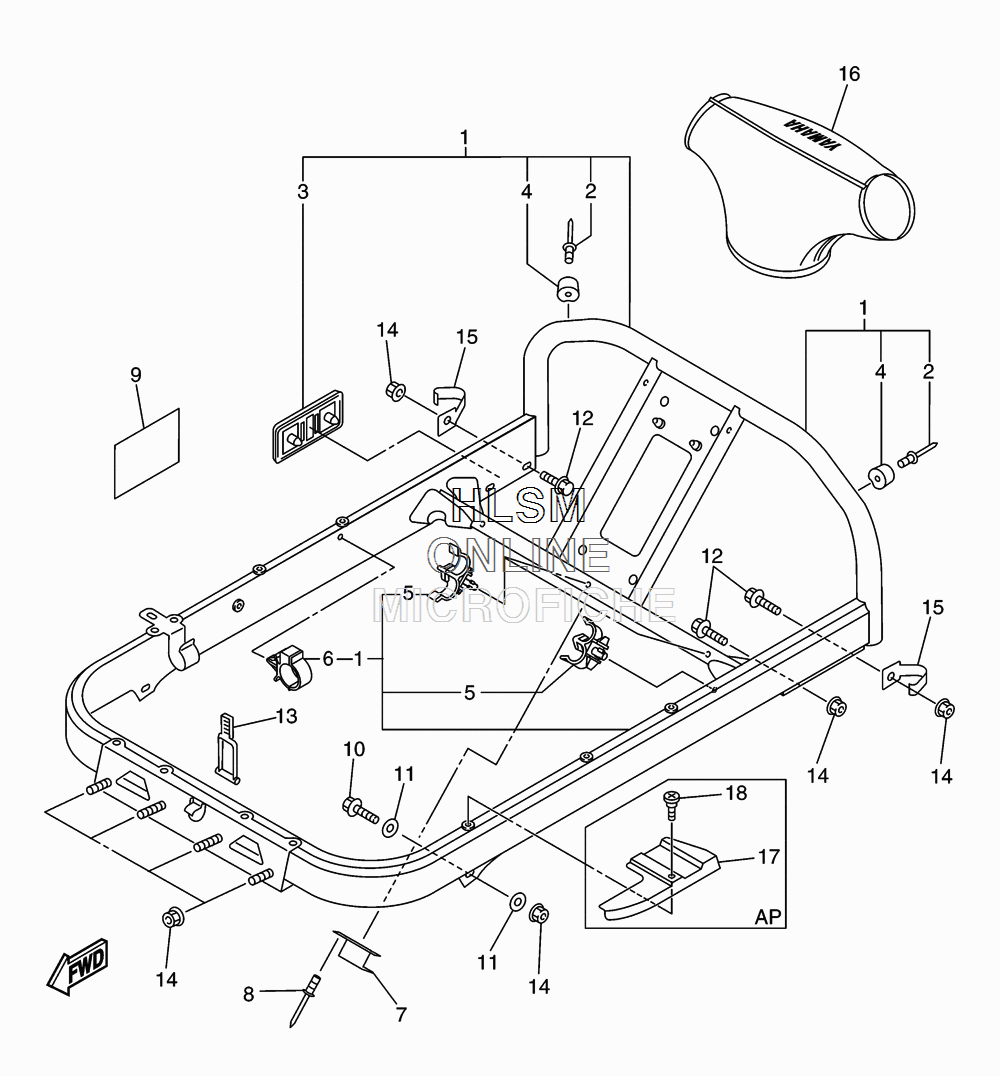

HANDLEBAR PAD W/ STEERING GATE для Yamaha RS VENTURE - 2012 года выпуска`
-
№АртикулНазвание
-
18ES-23870-05-00 STEERING GATE COMP.STEERING GATE COMP.
-
290267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
38FA-83614-00-00 ...BRACKET...BRACKET
-
48FA-23858-00-00 ...DAMPER...DAMPER
-
590464-11007-00 ...CLAMP...CLAMP
-
690464-20010-00 ...CLAMP...CLAMP
-
78ES-2381C-00-00 STOPPER 1STOPPER 1
-
890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
98FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
1090105-081A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190201-08326-00 WASHER, PLATEWASHER, PLATE
-
1295822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
138FA-2389E-00-00 LATCHLATCH
-
1495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590462-10022-00 CLAMPCLAMP
-
168FA-23815-00-00 PAD, STEERINGPAD, STEERING
-
178ES-14146-00-00 PLATEPLATE
-
1890150-06015-00 SCREW, ROUND HEADSCREW, ROUND HEAD
