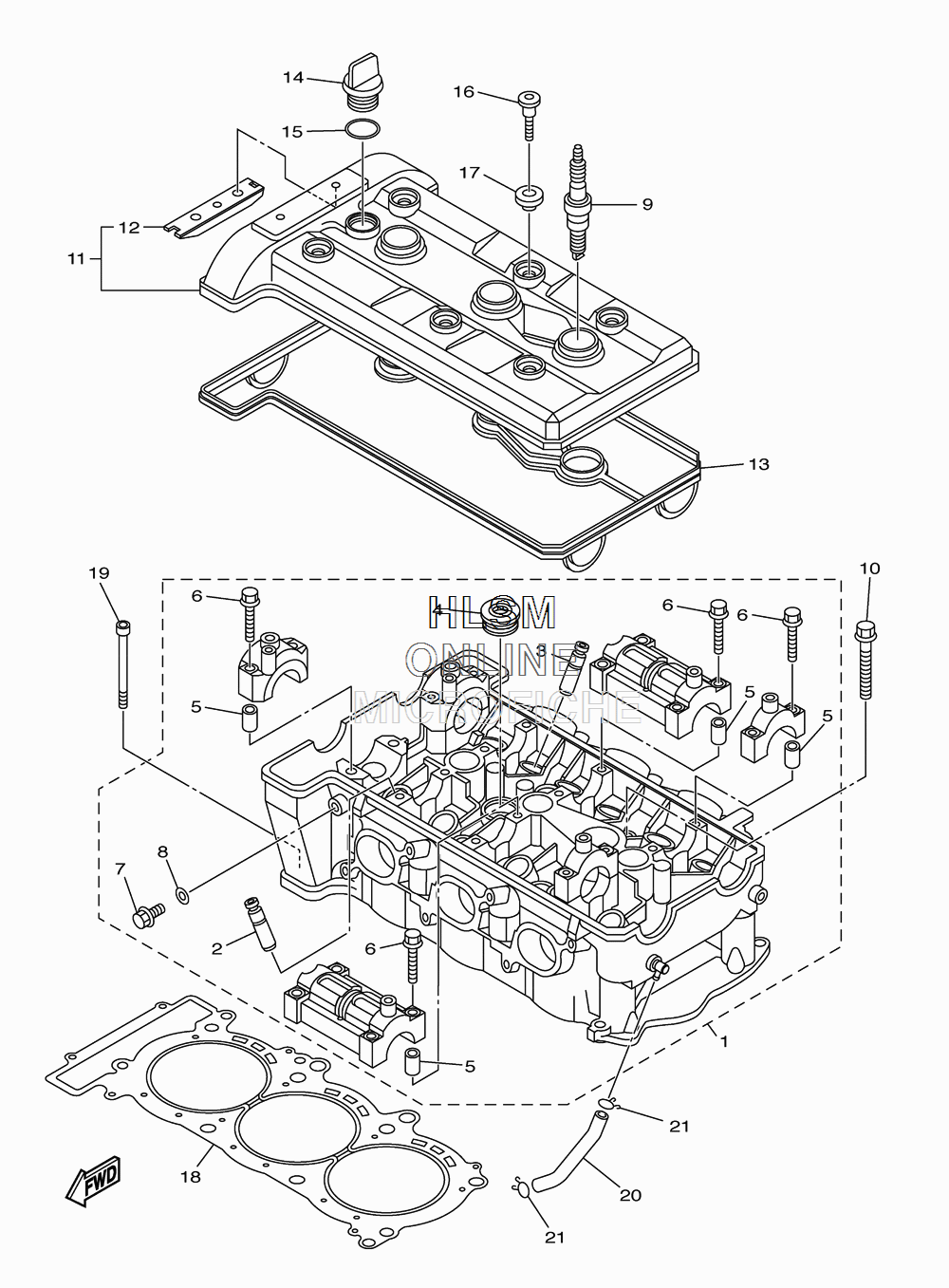

CYLINDER W/ HEAD ASSY для Yamaha RS VENTURE - 2012 года выпуска
-
№АртикулНазвание
-
18ES-11101-02-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25JW-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
33P6-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
490340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-06026-00 ...BOLT, FLANGE...BOLT, FLANGE
-
795022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
890430-08119-00 ...GASKET...GASKET
-
994701-00411-00 PLUG, SPARK (NGK R CR8E)PLUG, SPARK (NGK R CR8E)
-
1090119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
118ES-11191-01-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
125BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
138ES-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
143Y1-15363-10-00 PLUG, OILPLUG, OIL
-
1593210-19123-00 O-RINGO-RING
-
1690109-066F0-00 BOLTBOLT
-
174KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
188ES-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1991312-06065-00 BOLTBOLT
-
208ES-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
2190467-100A1-00 CLIPCLIP
