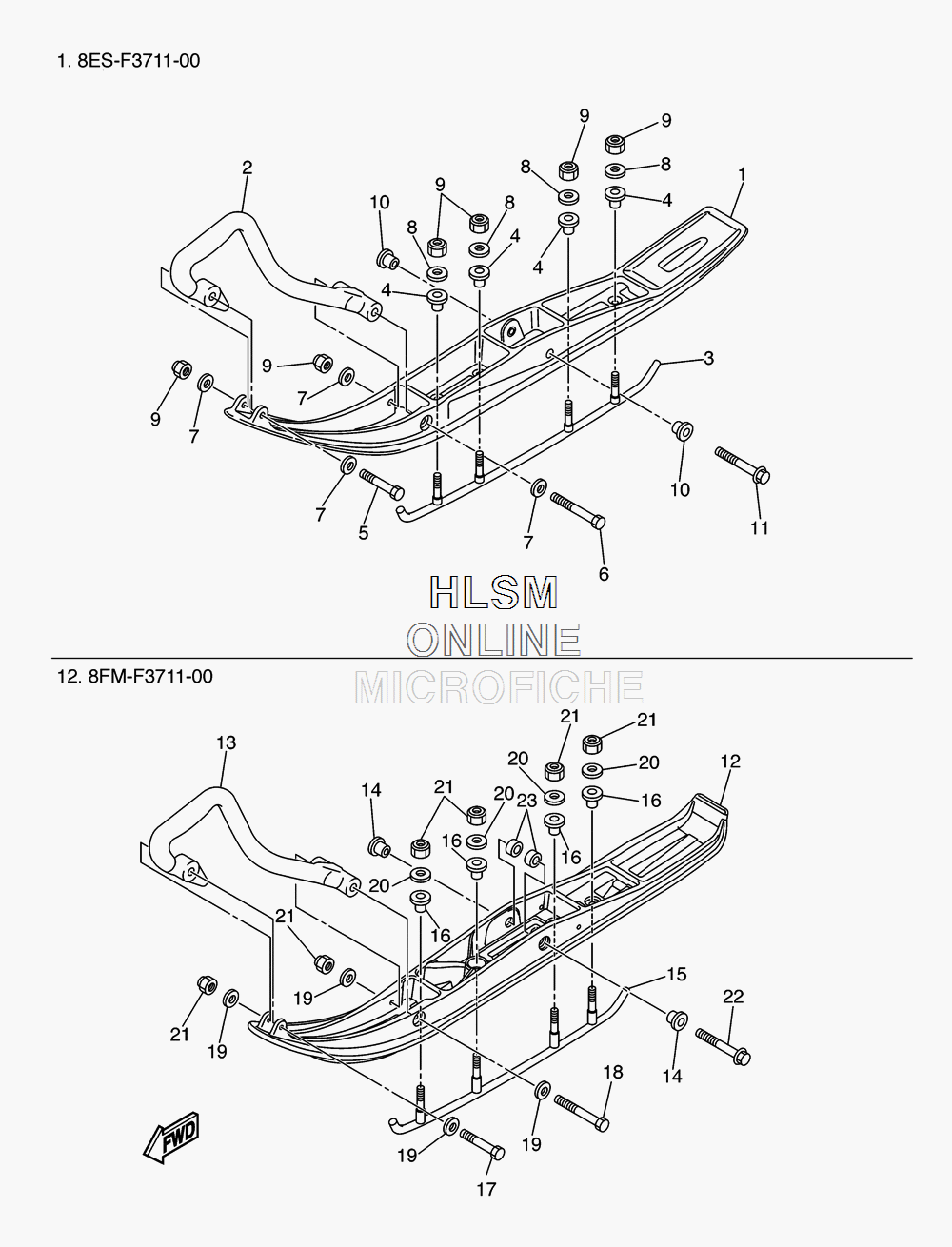

SUSPENSION - ALTERNATE SKI для Yamaha RS VENTURE - 2012 года выпуска
-
№АртикулНазвание
-
18ES-F3711-00-00 SKI 1 (TYPE 1)SKI 1 (TYPE 1)
-
28DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EK-F3731-01-00 RUNNER 1RUNNER 1
-
48EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
59702M-08055-00 BOLTBOLT
-
69702M-08100-00 BOLTBOLT
-
790201-08784-00 WASHER, PLATEWASHER, PLATE
-
890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
99570M-08300-00 NUT, NYLONNUT, NYLON
-
108EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
128FM-F3711-00-00 SKI 1 (TYPE 2)SKI 1 (TYPE 2)
-
138DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
148EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
158EN-F3731-01-00 RUNNER 1RUNNER 1
-
168EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
178HG-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
188HG-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
198HG-F3737-00-00 WASHER 1WASHER 1
-
208HG-F3738-00-00 WASHER 2WASHER 2
-
218HG-F3778-00-00 NUTNUT
-
2290105-10106-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-10029-00 COLLARCOLLAR
