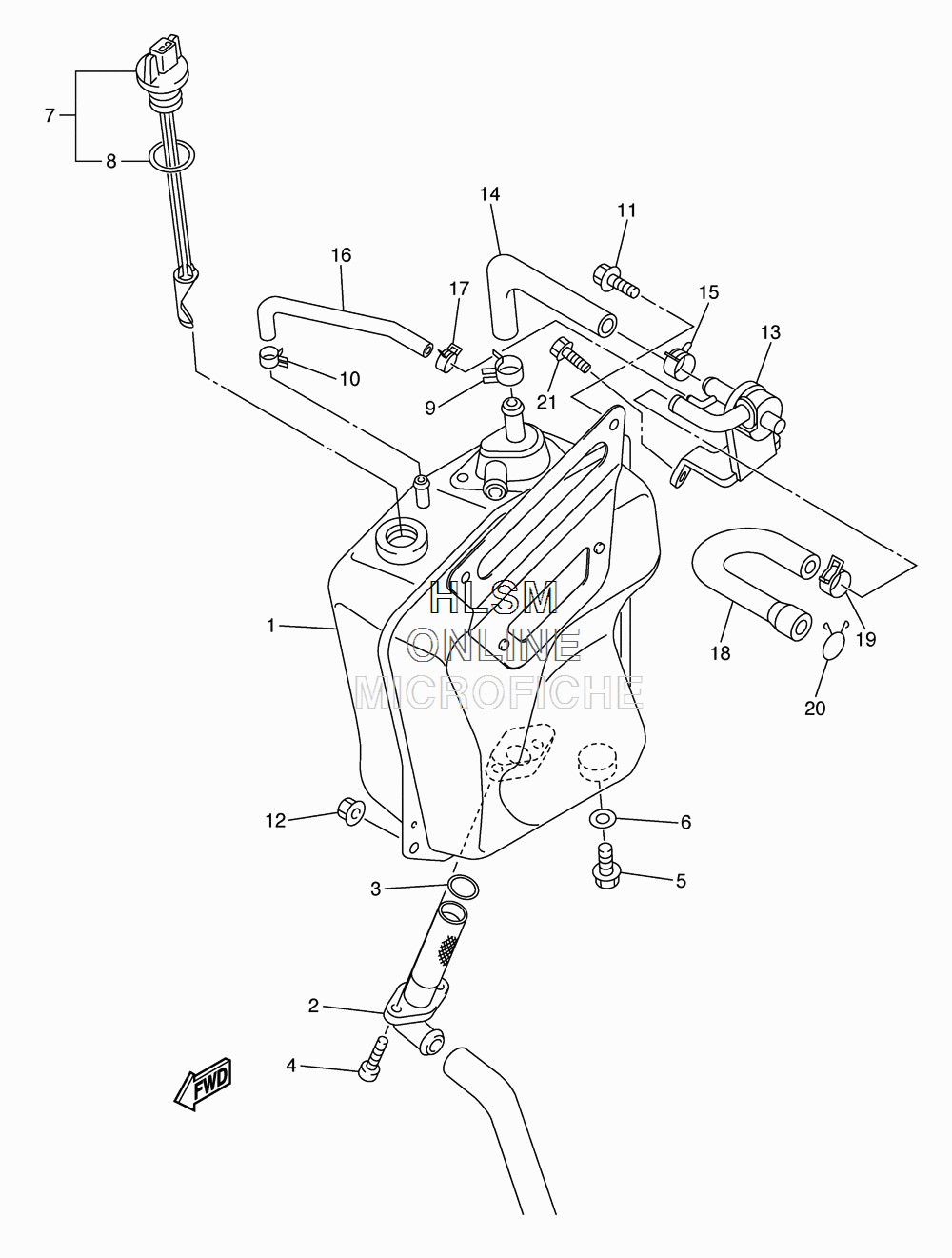

OIL TANK ASSY для Yamaha RS VENTURE - 2012 года выпуска`
-
№АртикулНазвание
-
18FG-21751-02-00 TANK, OILTANK, OIL
-
28FG-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
393210-19026-00 O-RINGO-RING
-
491317-06016-00 BOLTBOLT
-
595807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
690430-08204-00 GASKETGASKET
-
78FA-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
88FP-85075-00-00 ...O-RING...O-RING
-
990468-08104-00 CLIPCLIP
-
1090467-12053-00 CLIPCLIP
-
1195812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
138ES-13520-00-00 VALVE ASSY.VALVE ASSY.
-
148ES-21745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
1590468-08104-00 CLIPCLIP
-
168ES-2174N-00-00 PIPE, OIL TANKPIPE, OIL TANK
-
1790467-12053-00 CLIPCLIP
-
188ES-21816-00-00 PIPE 1PIPE 1
-
1990467-20085-00 CLIPCLIP
-
2090467-22080-00 CLIPCLIP
-
2195822-06020-00 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- • OIL TANK ASSY
- REAR VIEW MIRROR SET
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - ALTERNATE SKI
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
