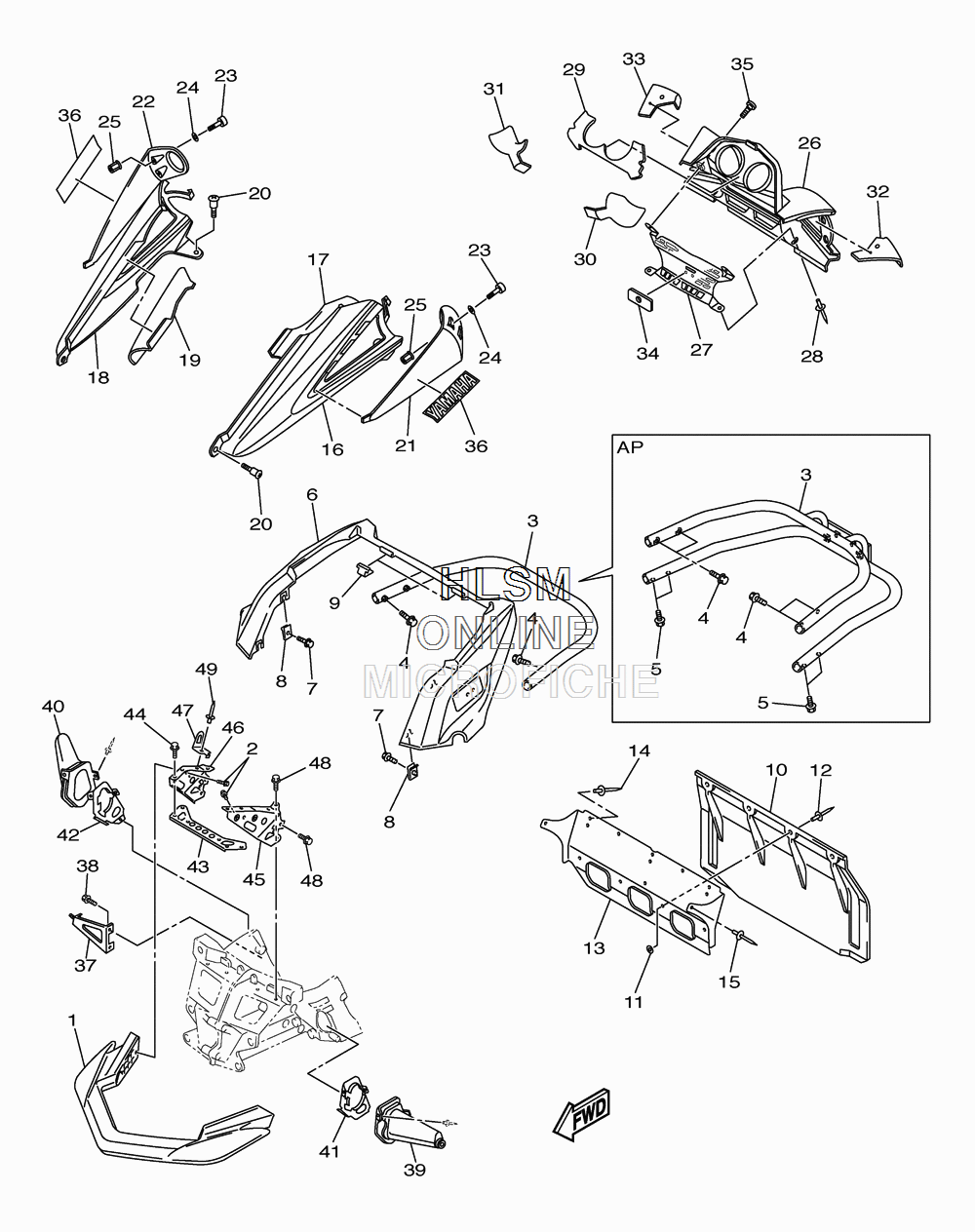

BUMPER - FRONT AND REAR для Yamaha RS VENTURE - 2012 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FA-77541-01-00 BUMPER, REAR 1 (STD)BUMPER, REAR 1 (STD)
-
38ET-77541-01-00 BUMPER, REAR 1 (OPT)BUMPER, REAR 1 (OPT)
-
495822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
68FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
795802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
890183-06053-00 NUT, SPRINGNUT, SPRING
-
98HV-7717H-00-00 TAPE 4TAPE 4
-
108GW-K7595-00-00 FLAPFLAP
-
1190201-04325-00 WASHER, PLATEWASHER, PLATE
-
1290267-47200-00 RIVET, BLINDRIVET, BLIND
-
138GW-77596-01-00 STOPPER, FLAPSTOPPER, FLAP
-
1490267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
1590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
168ES-77551-00-00 PROTECTOR 1PROTECTOR 1
-
178ES-77261-01-00 LINING, SHROUD 1LINING, SHROUD 1
-
188ES-77552-00-00 PROTECTOR 2PROTECTOR 2
-
198ES-77262-01-00 LINING, SHROUD 2LINING, SHROUD 2
-
2090154-06009-00 SCREW, BINDINGSCREW, BINDING
-
218ES-77554-00-P8 PROTECTOR 4 (BLUISH SILVER)PROTECTOR 4 (BLUISH SILVER)
-
228ES-77555-00-P8 PROTECTOR 5 (BLUISH SILVER)PROTECTOR 5 (BLUISH SILVER)
-
2391314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490201-06M07-00 WASHER, PLATEWASHER, PLATE
-
2590179-06520-00 NUTNUT
-
268ES-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
278ES-77553-00-00 PROTECTOR 3PROTECTOR 3
-
2890267-47187-00 RIVET, BLINDRIVET, BLIND
-
298ES-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
308ES-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
318ES-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
328ES-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
338ES-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
348ES-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
3590109-06220-00 BOLTBOLT
-
3699241-00120-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
378ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
3895822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
398FU-2198F-01-00 COVER 1COVER 1
-
408FU-2198J-01-00 COVER 3COVER 3
-
418FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
428FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
438FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4495822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
458FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
468FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
478FA-77125-00-00 STAY 1STAY 1
-
4895822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
