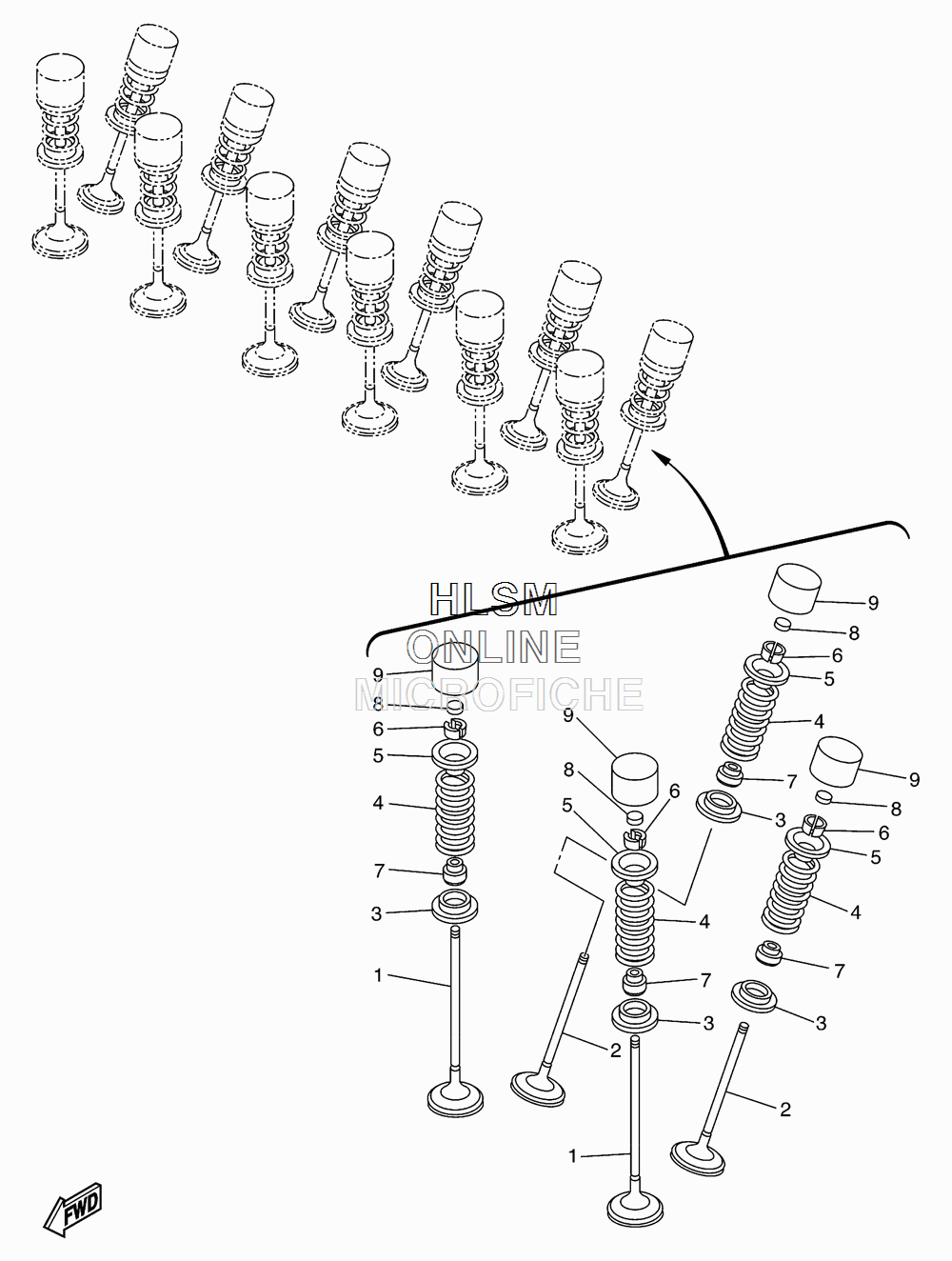

VALVE ASSY для Yamaha FX NYTRO - 2011 года выпуска`
-
№АртикулНазвание
-
18GL-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
28GL-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
33D7-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
48GL-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
53D7-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
61WG-12118-00-00 COTTER, VALVECOTTER, VALVE
-
74TE-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
81HX-12168-H1-00 PAD, ADJUSTING 2 (1.55) URPAD, ADJUSTING 2 (1.55) UR
-
81HX-12168-K1-00 PAD, ADJUSTING 2 (1.60) URPAD, ADJUSTING 2 (1.60) UR
-
81HX-12168-F0-00 PAD, ADJUSTING 2 (1.50) URPAD, ADJUSTING 2 (1.50) UR
-
81HX-12168-A0-00 PAD, ADJUSTING 2 (1.45) URPAD, ADJUSTING 2 (1.45) UR
-
81HX-12168-80-00 PAD, ADJUSTING 2 (1.40) URPAD, ADJUSTING 2 (1.40) UR
-
81HX-12168-60-00 PAD, ADJUSTING 2 (1.35) URPAD, ADJUSTING 2 (1.35) UR
-
81HX-12168-40-00 PAD, ADJUSTING 2 (1.30) URPAD, ADJUSTING 2 (1.30) UR
-
81HX-12168-20-00 PAD, ADJUSTING 2 (1.25) URPAD, ADJUSTING 2 (1.25) UR
-
81HX-12168-00-00 PAD, ADJUSTING 2 (1.20) URPAD, ADJUSTING 2 (1.20) UR
-
81HX-12168-M1-00 PAD, ADJUSTING 2 (1.65) URPAD, ADJUSTING 2 (1.65) UR
-
81HX-12169-T0-00 PAD, ADJUSTING 2 (2.40) URPAD, ADJUSTING 2 (2.40) UR
-
81HX-12168-R1-00 PAD, ADJUSTING 2 (1.70) URPAD, ADJUSTING 2 (1.70) UR
-
81HX-12168-U1-00 PAD, ADJUSTING 2 (1.75) URPAD, ADJUSTING 2 (1.75) UR
-
81HX-12168-W1-00 PAD, ADJUSTING 2 (1.80) URPAD, ADJUSTING 2 (1.80) UR
-
81HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85) URPAD, ADJUSTING 2 (1.85) UR
-
81HX-12169-11-00 PAD, ADJUSTING 2 (1.90) URPAD, ADJUSTING 2 (1.90) UR
-
81HX-12169-31-00 PAD, ADJUSTING 2 (1.95) URPAD, ADJUSTING 2 (1.95) UR
-
81HX-12169-50-00 PAD, ADJUSTING 2 (2.00) URPAD, ADJUSTING 2 (2.00) UR
-
81HX-12169-70-00 PAD, ADJUSTING 2 (2.05) URPAD, ADJUSTING 2 (2.05) UR
-
81HX-12169-90-00 PAD, ADJUSTING 2 (2.10) URPAD, ADJUSTING 2 (2.10) UR
-
81HX-12169-E0-00 PAD, ADJUSTING 2 (2.15) URPAD, ADJUSTING 2 (2.15) UR
-
81HX-12169-G0-00 PAD, ADJUSTING 2 (2.20) URPAD, ADJUSTING 2 (2.20) UR
-
81HX-12169-J0-00 PAD, ADJUSTING 2 (2.25) URPAD, ADJUSTING 2 (2.25) UR
-
81HX-12169-L0-00 PAD, ADJUSTING 2 (2.30) URPAD, ADJUSTING 2 (2.30) UR
-
81HX-12169-N0-00 PAD, ADJUSTING 2 (2.35) URPAD, ADJUSTING 2 (2.35) UR
-
94C8-12153-09-00 LIFTER, VALVE (O/S) UR GREENLIFTER, VALVE (O/S) UR GREEN
-
94C8-12153-10-00 LIFTER, VALVE UR YELLOWLIFTER, VALVE UR YELLOW
