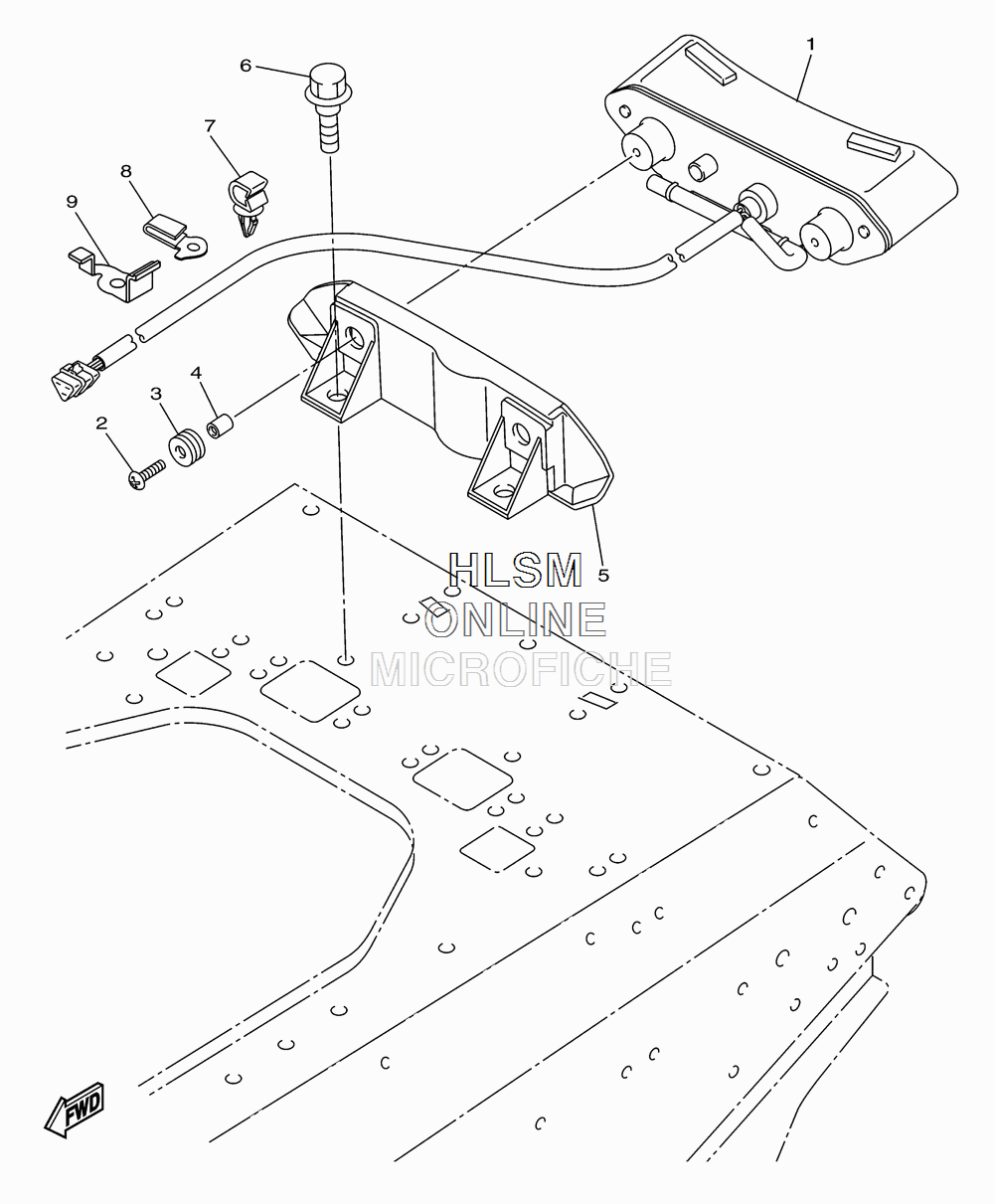

ELECTRICAL - TAILLIGHT ASSY для Yamaha FX NYTRO - 2011 года выпуска`
-
№АртикулНазвание
-
18GC-84710-02-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
297707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
390480-12067-00 GROMMETGROMMET
-
490387-053H3-00 COLLARCOLLAR
-
58GL-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
690109-06043-00 BOLTBOLT
-
790464-07011-00 CLAMPCLAMP
-
890462-08033-00 CLAMPCLAMP
-
98GL-84351-00-00 CLAMP, CORDCLAMP, CORD
