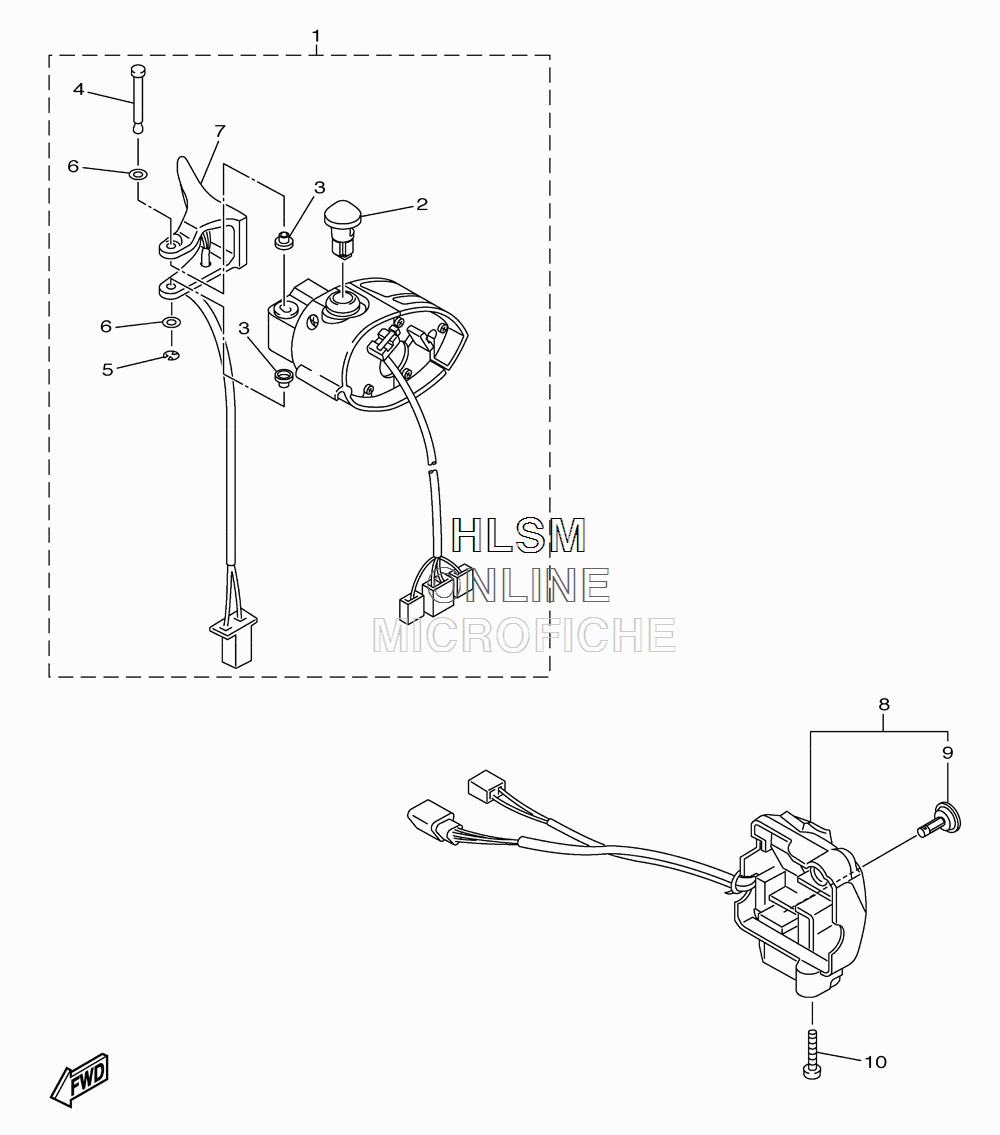

HANDLEBAR - SWITCHES AND LEVERS для Yamaha FX NYTRO - 2011 года выпуска`
-
№АртикулНазвание
-
18GL-82720-00-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
28GL-86284-09-00 STOP SWITCHSTOP SWITCH
-
385G-83956-00-00 CAP 1CAP 1
-
48R6-8399F-00-00 SHAFTSHAFT
-
599001-04600-00 CLIPCLIP
-
68FP-82558-00-00 WASHERWASHER
-
78FP-82970-00-00 THUMB WARMER ASSYTHUMB WARMER ASSY
-
88GL-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
98GL-82526-09-00 SWITCH, LAMPSWITCH, LAMP
-
1098502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
