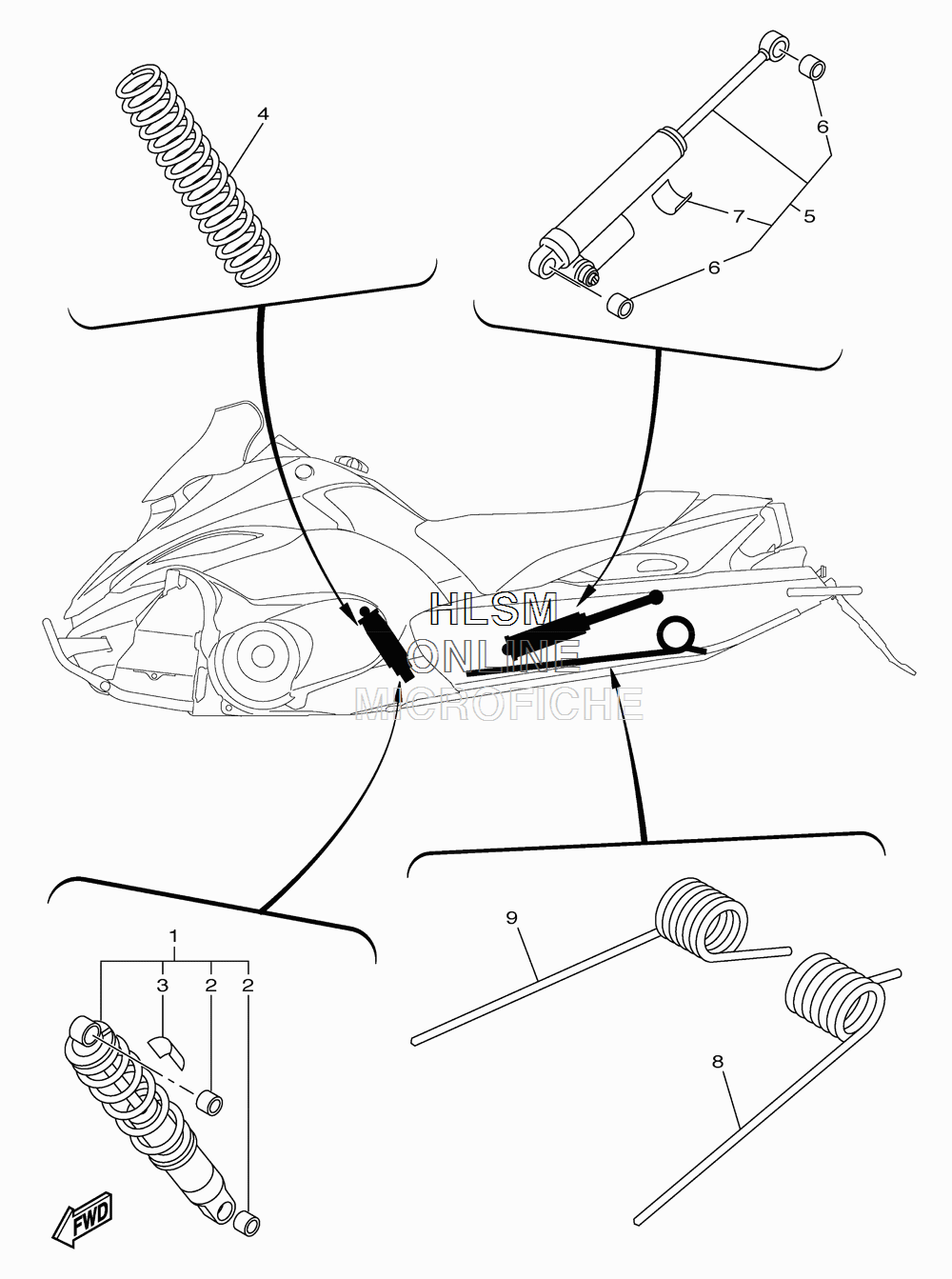

SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS для Yamaha FX NYTRO - 2011 года выпуска`
-
№АртикулНазвание
-
18GL-47481-A0-00 SHOCK ABSORBER 2 APSHOCK ABSORBER 2 AP
-
290384-17N50-00 BUSH, BIMETAL FORMED APBUSH, BIMETAL FORMED AP
-
34AA-22259-70-00 LABEL, WARNING APLABEL, WARNING AP
-
48GL-47336-10-00 SPRING., 2 (K=30N/MM) APSPRING., 2 (K=30N/MM) AP
-
58GL-47480-A0-00 SHOCK ABSORBER APSHOCK ABSORBER AP
-
690384-17N50-00 BUSH, BIMETAL FORMED APBUSH, BIMETAL FORMED AP
-
74AA-22259-70-00 LABEL, WARNING APLABEL, WARNING AP
-
88GL-47473-00-00 SPRING, REAR 1 (K=1900NMM/DEG) APSPRING, REAR 1 (K=1900NMM/DEG) AP
-
88GL-47473-10-00 SPRING, REAR 1 (K=2100NMM/DEG) APSPRING, REAR 1 (K=2100NMM/DEG) AP
-
98GL-47474-00-00 SPRING, REAR 2 (K=1900NMM/DEG) APSPRING, REAR 2 (K=1900NMM/DEG) AP
-
98GL-47474-10-00 SPRING, REAR 2 (K=2100NMM/DEG) APSPRING, REAR 2 (K=2100NMM/DEG) AP
