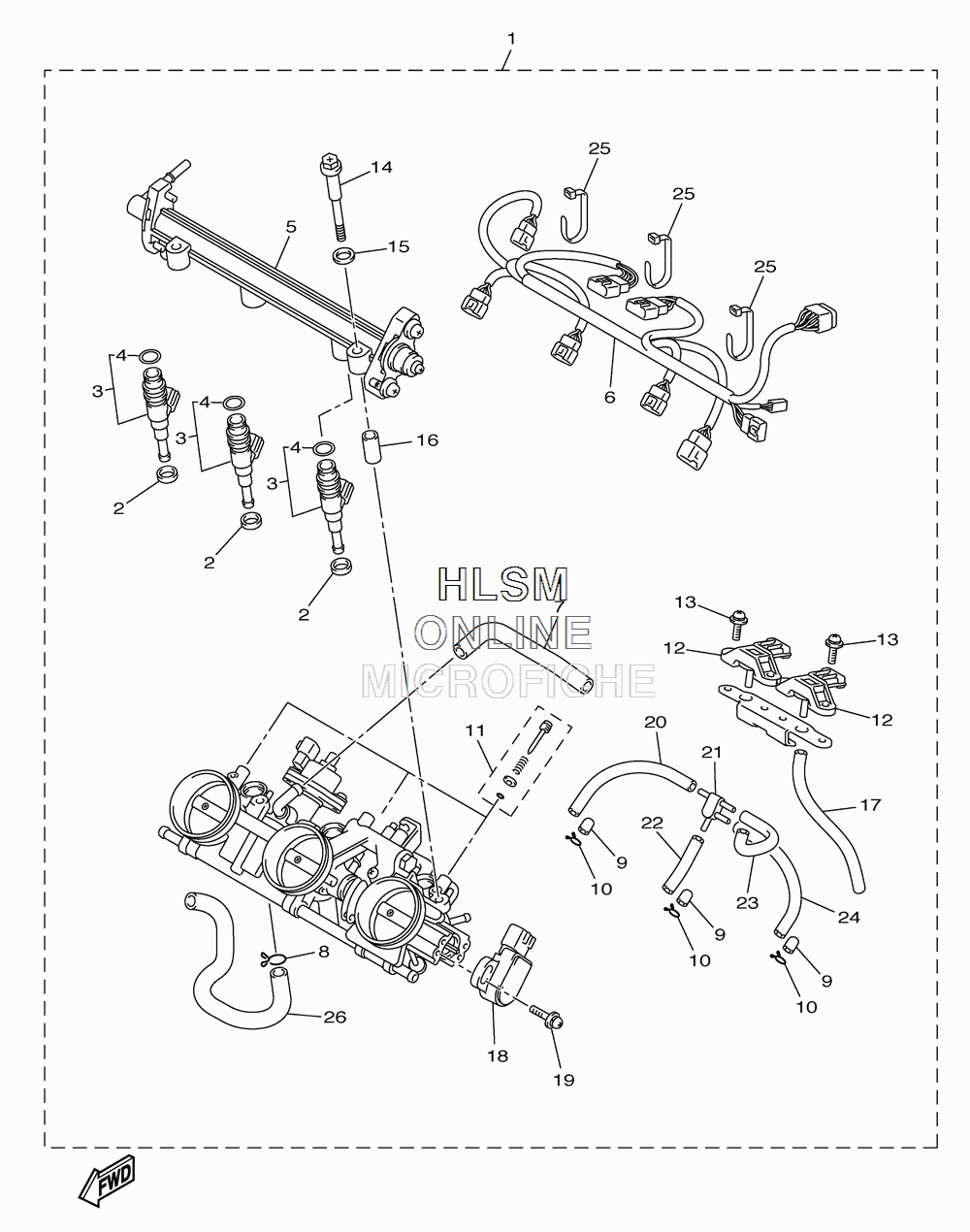

THROTTLE BODY ASSY для Yamaha FX NYTRO - 2011 года выпуска`
-
№АртикулНазвание
-
18GL-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 RUBBER, INJECTORRUBBER, INJECTOR
-
38GC-13761-00-00 INJECTORINJECTOR
-
48GC-13769-00-00 O-RINGO-RING
-
58GL-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
68GL-82386-01-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
78GL-13895-00-00 HOSE, AIRHOSE, AIR
-
890467-150A2-00 CLIPCLIP
-
9895-14169-00-00 CAPCAP
-
108A7-14139-00-00 CLIP, PIPECLIP, PIPE
-
118GL-14503-00-00 ADJUST SCREW SETADJUST SCREW SET
-
122C0-82380-10-00 SENSOR, PRESSURESENSOR, PRESSURE
-
138GL-14592-00-00 SCREWSCREW
-
148GL-13573-00-00 BOLT 1BOLT 1
-
158GL-13571-00-00 WASHERWASHER
-
168GL-14534-00-00 COLLARCOLLAR
-
175PW-14349-00-00 PIPEPIPE
-
188GL-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
198CC-14216-10-00 SCREWSCREW
-
205JW-14987-00-00 HOSEHOSE
-
215PW-1410F-00-00 CONNECTORCONNECTOR
-
228FP-14349-30-00 PIPEPIPE
-
238GL-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
248GL-13893-00-00 HOSE, AIR 3HOSE, AIR 3
-
254KM-14137-00-00 CLIPCLIP
-
268GL-13545-00-00 HOSE 1HOSE 1
