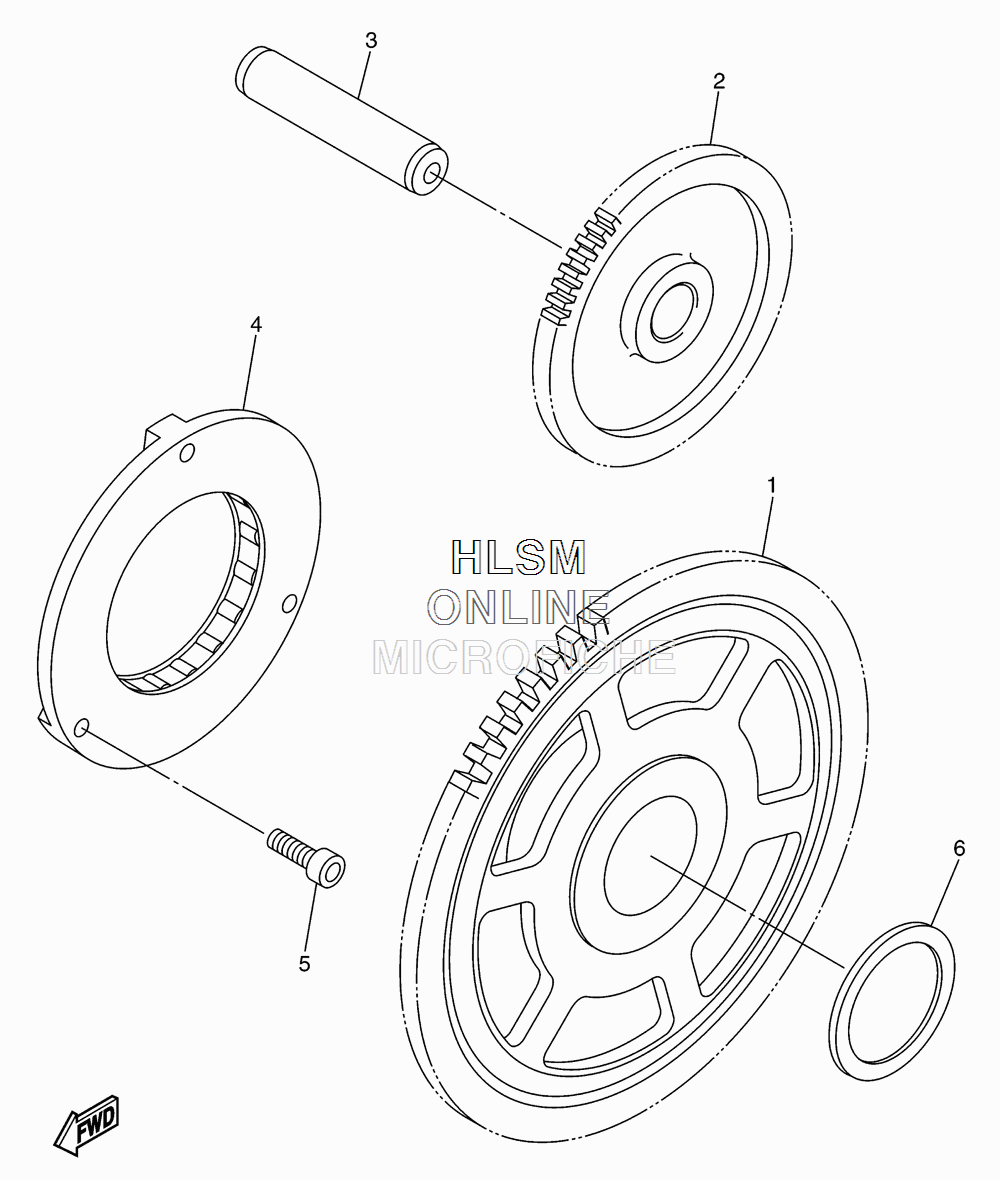

STARTER - REDUCTION GEAR W/ CLUTCH ASSY для Yamaha FX NYTRO - 2011 года выпуска`
-
№АртикулНазвание
-
18FA-15515-00-00 GEAR 3GEAR 3
-
28ES-15512-01-00 GEAR, IDLER 1GEAR, IDLER 1
-
38ES-15521-00-00 SHAFT 1SHAFT 1
-
48GL-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
590110-06168-00 BOLTBOLT
-
690201-30013-00 WASHER, PLATEWASHER, PLATE
