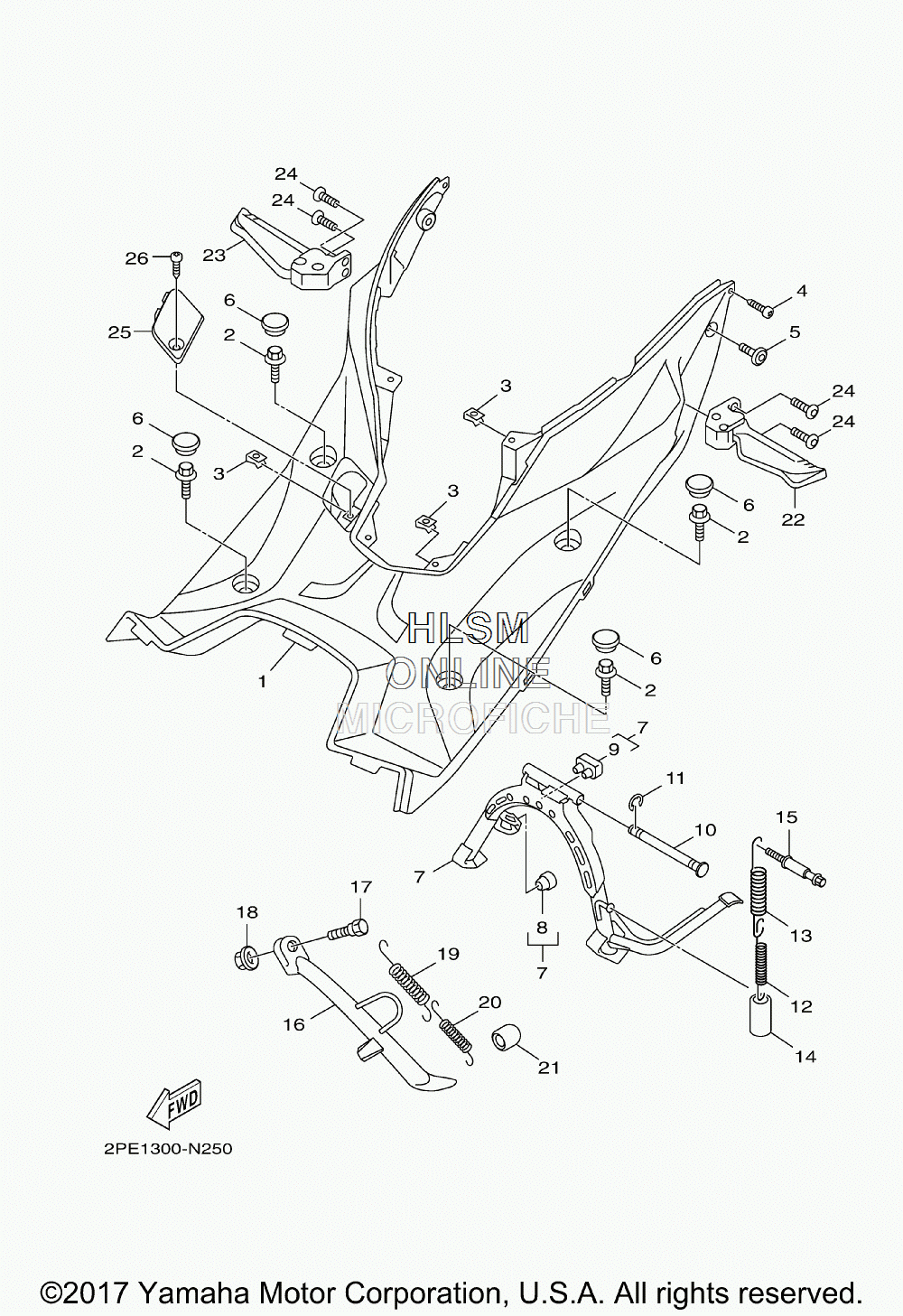

STAND W/ FOOTREST для Yamaha SMAX - 2018 года выпуска`
-
№АртикулНазвание
-
11DK-F7481-01-00 BOARD, FOOTRESTBOARD, FOOTREST
-
290119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390183-05816-00 NUT, SPRINGNUT, SPRING
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
590111-06831-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
65HK-F7475-00-00 CAP 1CAP 1
-
71DK-XF711-00-00 STAND, MAINSTAND, MAIN
-
85S9-F7114-01-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
91DK-F7114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
1052S-F7112-00-00 SHAFT, MAIN STANDSHAFT, MAIN STAND
-
1199001-12600-00 CIRCLIPCIRCLIP
-
1290506-28804-00 SPRING, TENSIONSPRING, TENSION
-
1390506-36800-00 SPRING, TENSIONSPRING, TENSION
-
1490445-21808-00 HOSEHOSE
-
1552S-F7254-00-00 HOOKHOOK
-
162LD-F7311-00-00 STAND, SIDESTAND, SIDE
-
1790109-10005-00 BOLTBOLT
-
1890185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990506-23811-00 SPRING, TENSIONSPRING, TENSION
-
2090506-16806-00 SPRING, TENSIONSPRING, TENSION
-
215CA-F7114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
221DK-F7431-03-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
231DK-F7441-03-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
2492012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
251DK-F7453-00-00 COVER 1COVER 1
-
2697707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
