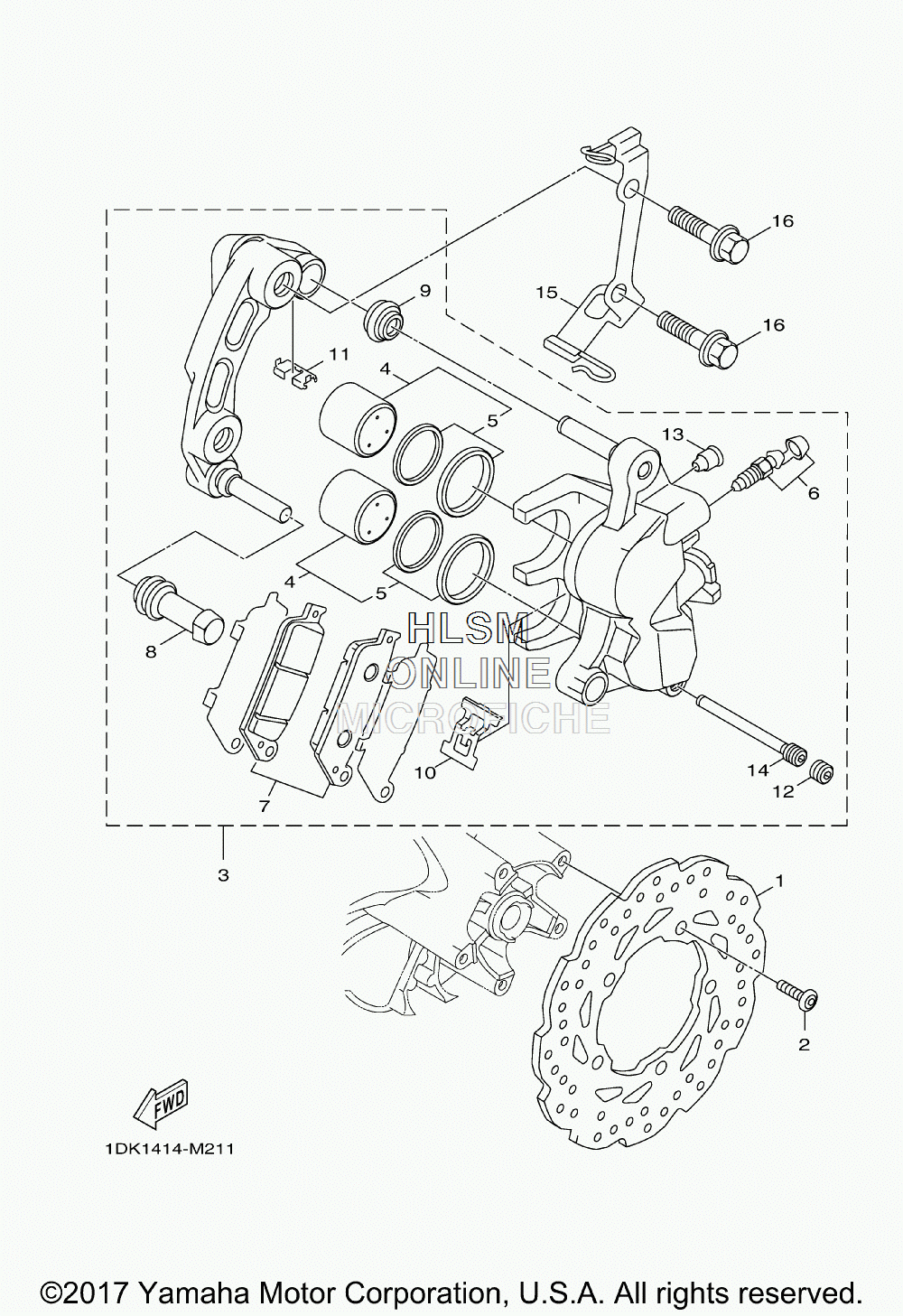

BRAKE - FRONT CALIPER для Yamaha SMAX - 2018 года выпуска`
-
№АртикулНазвание
-
11DK-F582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290111-08834-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
31DK-F580T-40-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
41DK-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
51DK-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
61MS-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
71DK-W0045-20-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
85ML-F5927-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
95ML-F5937-00-00 ...BOOT 2...BOOT 2
-
101MS-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
111MS-F5919-10-00 ...SUPPORT, PAD...SUPPORT, PAD
-
121MS-F5139-00-00 ...PLUG, BLIND...PLUG, BLIND
-
135AG-F5845-00-00 ...CAP, INDICATOR...CAP, INDICATOR
-
141MS-F5914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
151DK-F3317-02-00 HOLDER, CABLEHOLDER, CABLE
-
1690105-10638-00 BOLT, FLANGEBOLT, FLANGE
