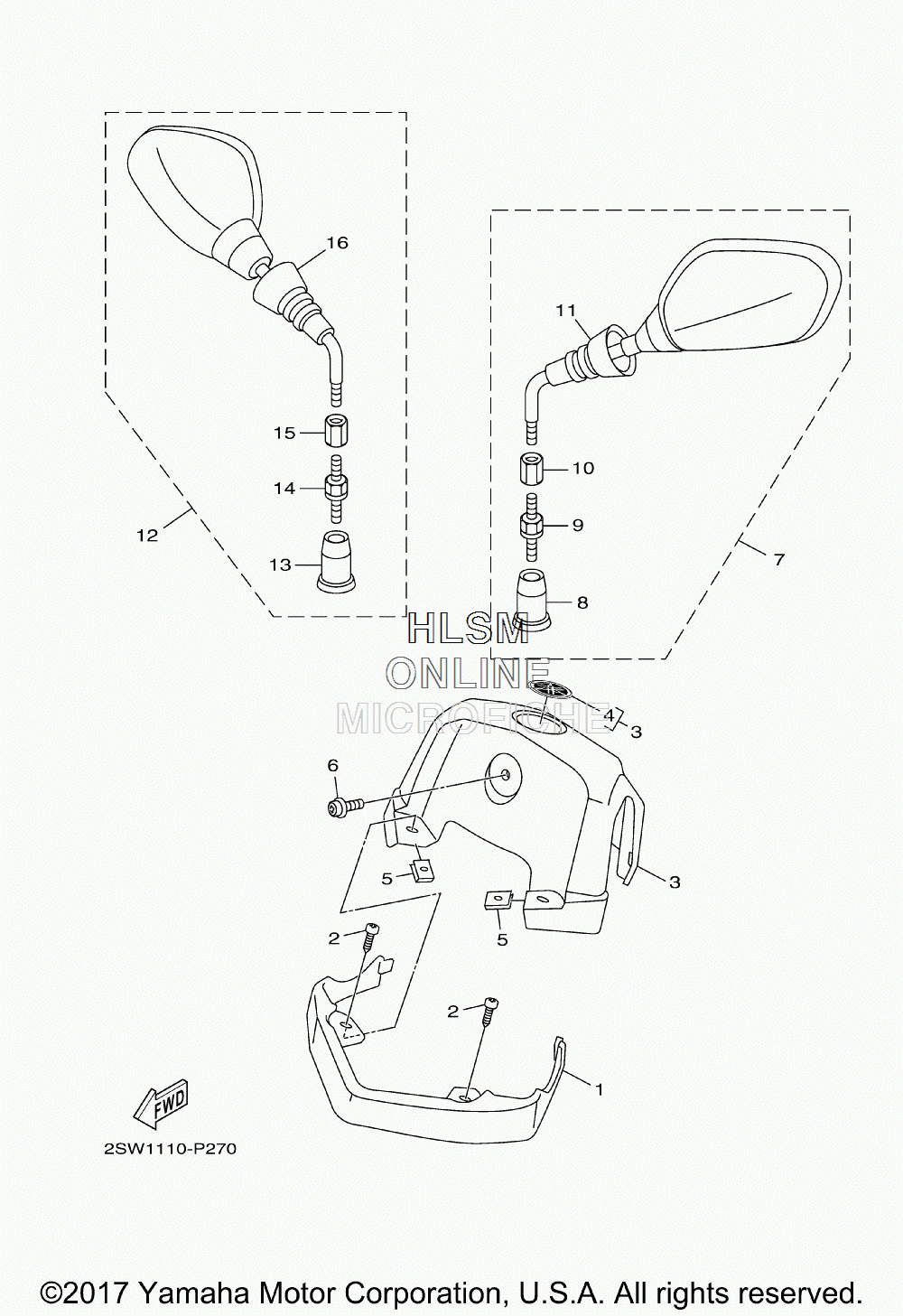

HANDLEBAR - COVER W/ MIRRORS для Yamaha SMAX - 2018 года выпуска`
-
№АртикулНазвание
-
11DK-F6143-00-P0 COVER, HANDLE UPPER 1 (LNMX - LIGHT GRAY)COVER, HANDLE UPPER 1 (LNMX - LIGHT GRAY)
-
297780-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
31DK-XF615-00-P0 COVER, HANDLEBAR UPPER 2 (LNMX - LIGHT GRAY)COVER, HANDLEBAR UPPER 2 (LNMX - LIGHT GRAY)
-
45WC-F831Y-10-00 ...GRAPHIC, 14...GRAPHIC, 14
-
590183-05816-00 NUT, SPRINGNUT, SPRING
-
690159-05820-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
71DK-F6280-11-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
85FA-F629T-00-00 ...BOOT 1...BOOT 1
-
95FA-F6386-01-00 ...BOLT, ADJUSTING...BOLT, ADJUSTING
-
105FA-F6294-00-00 ...NUT 1...NUT 1
-
111DK-F629V-00-00 ...BOOT, MIRROR...BOOT, MIRROR
-
121DK-F6290-11-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
135FA-F629T-00-00 ...BOOT 1...BOOT 1
-
145FA-F6356-01-00 ...BOLT, ADJUSTING...BOLT, ADJUSTING
-
155FA-F6294-00-00 ...NUT 1...NUT 1
-
161DK-F629V-00-00 ...BOOT, MIRROR...BOOT, MIRROR
