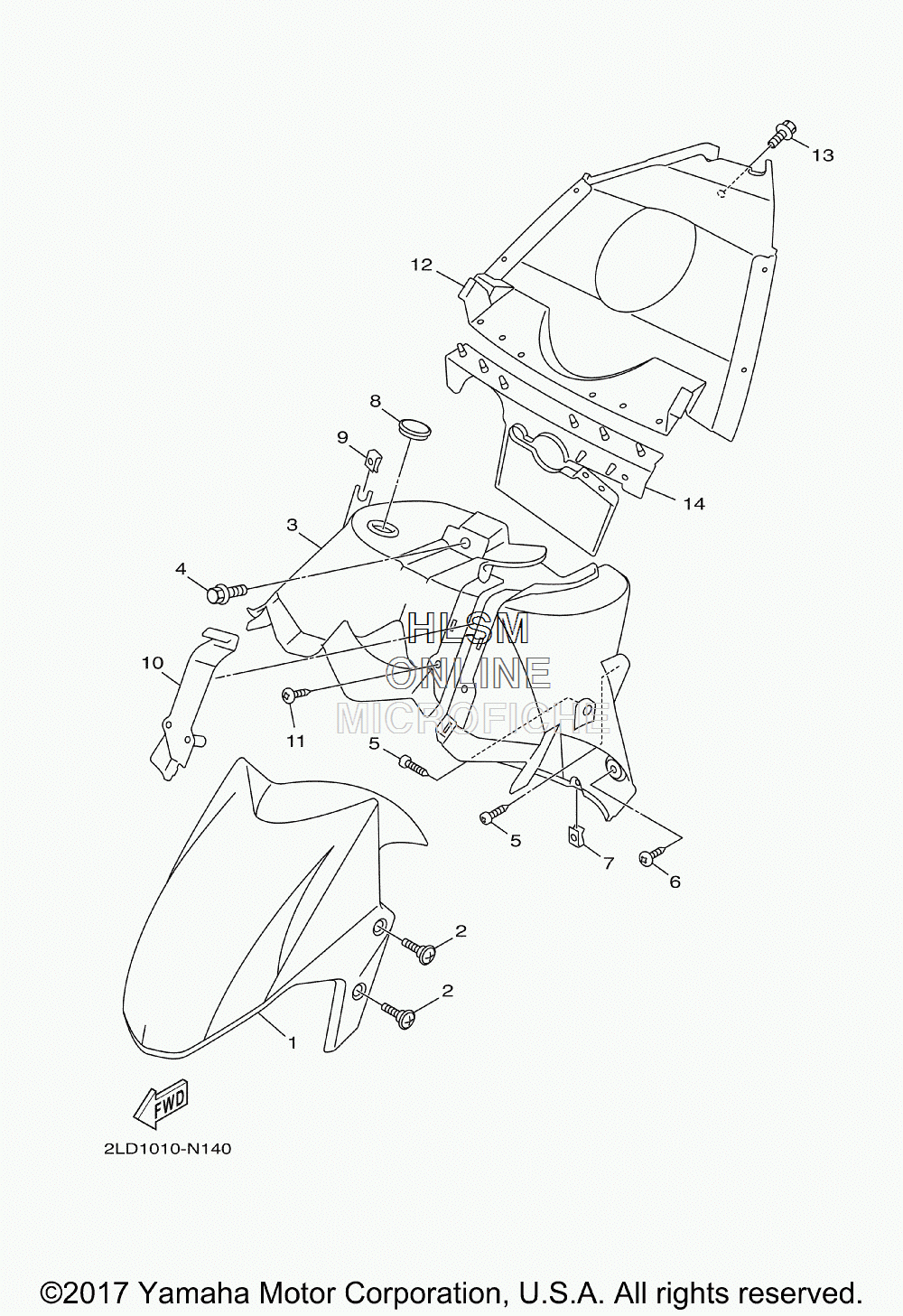

FENDER - FRONT / REAR для Yamaha SMAX - 2018 года выпуска`
-
№АртикулНазвание
-
11DK-F1511-00-P0 FENDER, FRONT (SMX - BLACK METALLIC X)FENDER, FRONT (SMX - BLACK METALLIC X)
-
290154-06807-00 SCREW, BINDINGSCREW, BINDING
-
32PE-F1552-00-00 FENDER, INNERFENDER, INNER
-
490119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
690169-05001-00 TAPPING SCREWTAPPING SCREW
-
790183-05816-00 NUT, SPRINGNUT, SPRING
-
85ML-F2417-00-00 PLUGPLUG
-
990183-06801-00 NUT, SPRINGNUT, SPRING
-
101DK-F1523-00-00 PLATE 1PLATE 1
-
1197707-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
121DK-F1629-00-00 GUARD, MUDGUARD, MUD
-
1390119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
142LD-F1691-00-00 FLAPFLAP
