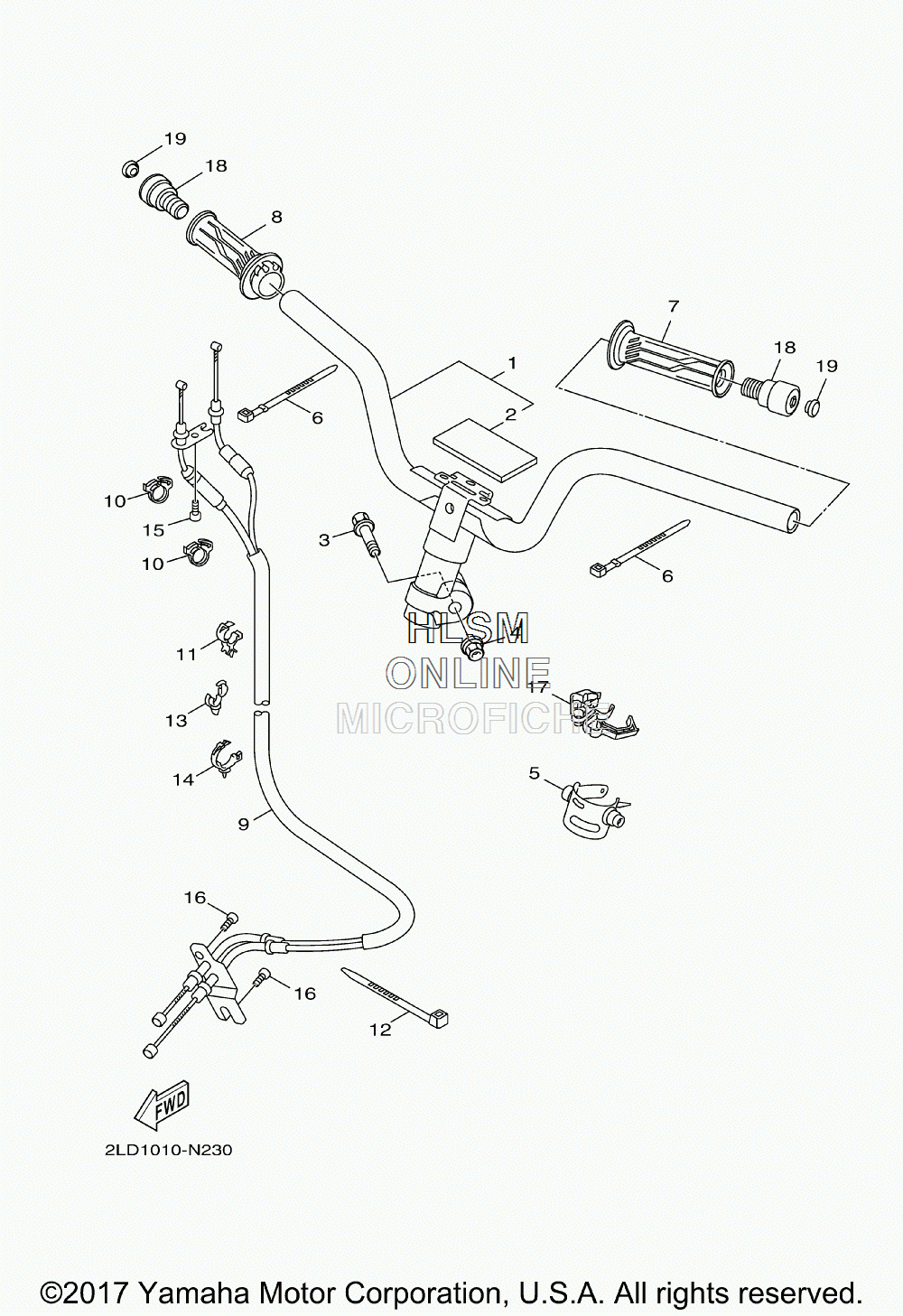

HANDLEBAR W/ CABLES - MIRRORS для Yamaha SMAX - 2018 года выпуска`
-
№АртикулНазвание
-
11DK-XF611-01-00 HANDLE COMP.HANDLE COMP.
-
25ML-F1639-00-00 ...DAMPER 2...DAMPER 2
-
390105-10864-00 BOLT, FLANGEBOLT, FLANGE
-
490185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
51DK-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
631U-H3936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
71DK-F6241-00-00 GRIPGRIP
-
81DK-F6240-00-00 GRIP ASSYGRIP ASSY
-
92LD-F6301-12-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1090464-08009-00 CLAMPCLAMP
-
1190464-20801-00 CLAMPCLAMP
-
1290464-23003-00 CLAMPCLAMP
-
1390464-20803-00 CLAMPCLAMP
-
1490464-20009-00 CLAMPCLAMP
-
1591317-05014-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
1692012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
171DK-F627E-00-00 CLAMP, WIRECLAMP, WIRE
-
185CA-F6246-00-00 END, GRIPEND, GRIP
-
193B3-F3469-10-00 CAP, BOLTCAP, BOLT
