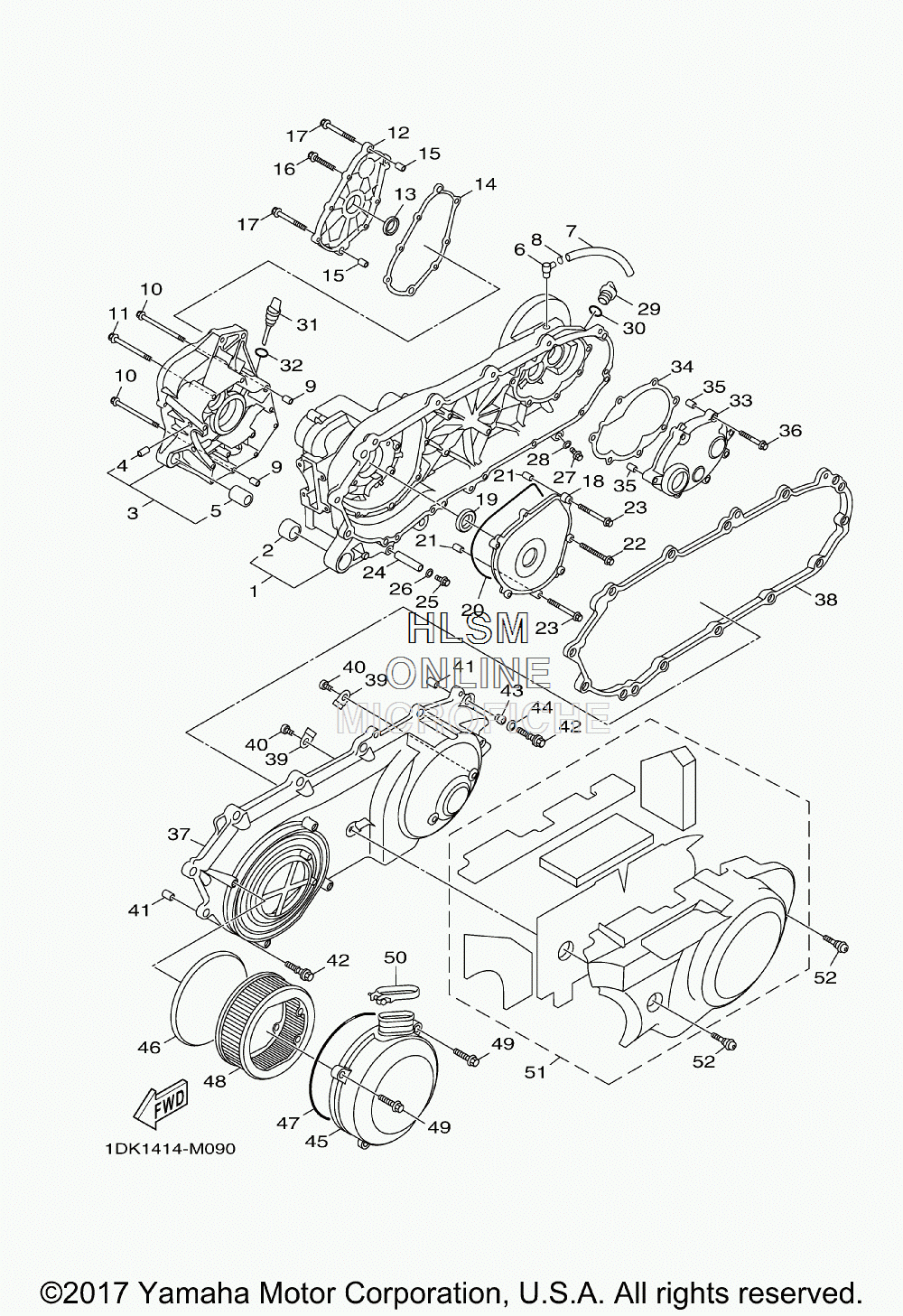

CRANKCASE ASSY. для Yamaha SMAX - 2018 года выпуска`
-
№АртикулНазвание
-
11DK-WE511-01-00 CRANKCASE 1CRANKCASE 1
-
252S-F2124-00-00 ...BUSH 2...BUSH 2
-
31DK-WE512-00-00 CRANKCASE 2CRANKCASE 2
-
452S-E5138-00-00 ...NOZZLE 1...NOZZLE 1
-
552S-F2123-00-00 ...BUSH 1...BUSH 1
-
65ST-E5371-00-00 BREATHERBREATHER
-
790445-11804-00 HOSEHOSE
-
890467-10803-00 CLIPCLIP
-
991810-14807-00 PIN, DOWELPIN, DOWEL
-
1095022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1195022-06120-00 BOLT, FLANGEBOLT, FLANGE
-
1252S-E5417-00-00 COVER, CAPCOVER, CAP
-
1393102-22823-00 OIL SEALOIL SEAL
-
1452S-E5453-00-00 GASKETGASKET
-
1591810-14807-00 PIN, DOWELPIN, DOWEL
-
1695022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1795022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1852S-E5423-00-00 COVER 2COVER 2
-
1993102-25817-00 OIL SEALOIL SEAL
-
2093211-55801-00 O-RINGO-RING
-
2191810-14807-00 PIN, DOWELPIN, DOWEL
-
2295022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2395022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
245ST-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
2590340-12802-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2690201-12172-00 WASHER, PLATEWASHER, PLATE
-
2795812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2890430-08119-00 GASKETGASKET
-
294Y4-E5363-00-00 PLUG, OILPLUG, OIL
-
3093210-14805-00 O-RINGO-RING
-
311DK-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
325ML-E3769-00-00 O-RINGO-RING
-
3352S-E5421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
3452S-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
3591810-14807-00 PIN, DOWELPIN, DOWEL
-
3695022-08040-00 BOLT, FLANGEBOLT, FLANGE
-
371DK-E5411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
3852S-E5451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
3952S-E5383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
4090111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4191810-14807-00 PIN, DOWELPIN, DOWEL
-
425ML-E5481-00-00 BOLT 1BOLT 1
-
435ML-E5422-00-00 BUSHBUSH
-
445ML-E5158-00-00 WASHERWASHER
-
451DK-E5471-00-00 DUCT, AIRDUCT, AIR
-
461DK-E5338-00-00 DAMPER 5DAMPER 5
-
4752S-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
4852S-E5408-00-00 ELEMENT 2ELEMENT 2
-
4995027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
501DK-E5484-00-00 CLAMP 2CLAMP 2
-
511DK-XE543-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
524DM-E5481-00-00 BOLT 1BOLT 1
