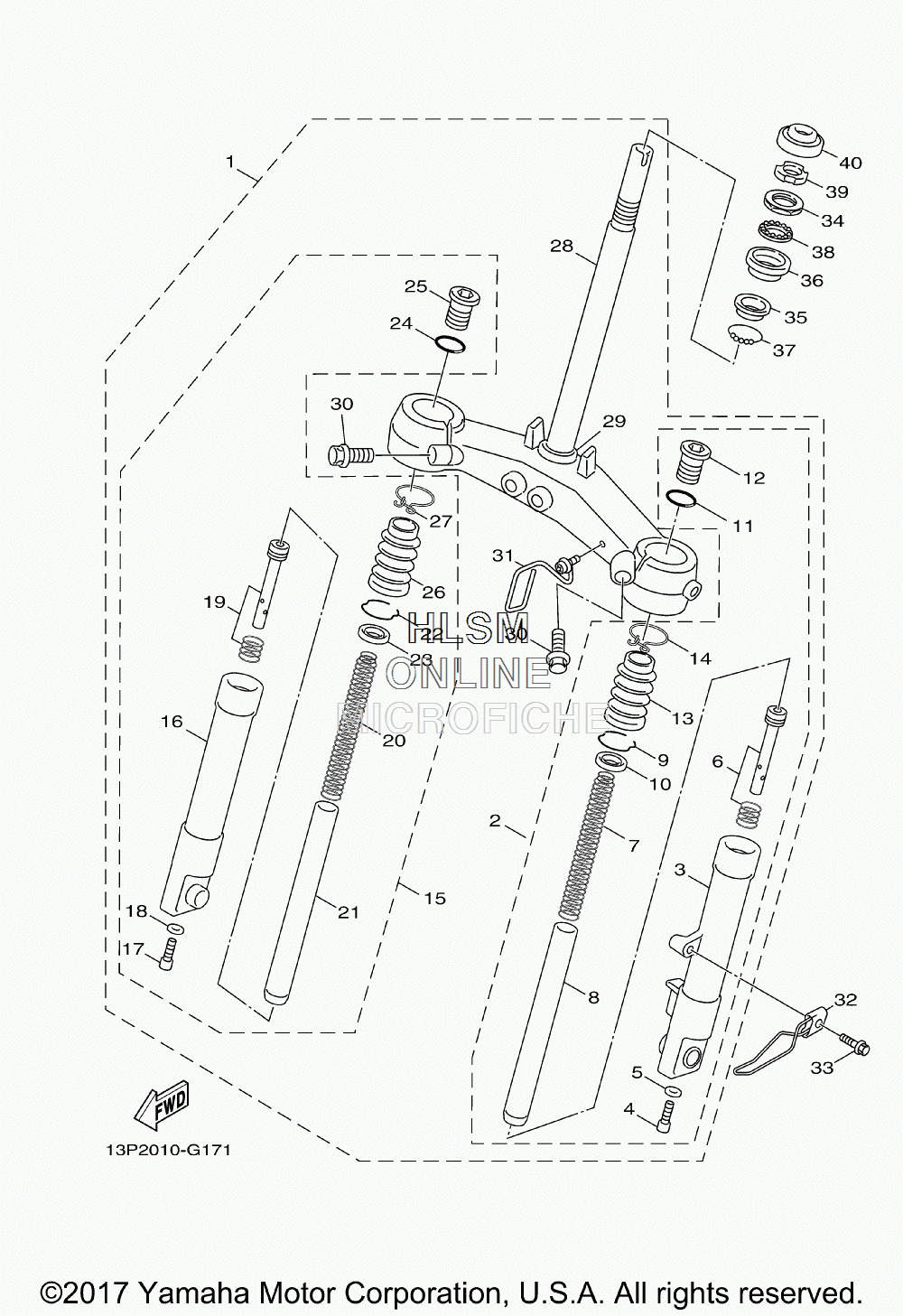

SUSPENSION - FRONT FORK для Yamaha VINO CLASSIC - 2017 года выпуска`
-
№АртикулНазвание
-
13D1-F3100-11-00 FRONT FORK ASSYFRONT FORK ASSY
-
23D1-F3102-10-00 ...FRONT FORK ASSY (LEFT)...FRONT FORK ASSY (LEFT)
-
313P-F3126-10-00 ......TUBE, OUTER (LEFT)......TUBE, OUTER (LEFT)
-
43GF-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
53GF-F3158-00-00 ......GASKET......GASKET
-
63B3-F3170-00-00 ......CYLINDER COMP., FRONT FOR......CYLINDER COMP., FRONT FOR
-
713P-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
83B3-F3110-00-00 ............INNER TUBE COMP. 1............INNER TUBE COMP. 1
-
93NW-F3156-00-00 ......RING, SNAP......RING, SNAP
-
105SU-F3145-00-00 ......OIL SEAL......OIL SEAL
-
113GF-F3147-00-00 ......O-RING......O-RING
-
125FJ-F3356-00-00 ......BOLT 2......BOLT 2
-
1313P-F3191-00-00 ......BOOT......BOOT
-
1413P-F3192-00-00 ......BAND......BAND
-
153D1-F3103-10-00 ...FRONT FORK ASSY (RIGHT)...FRONT FORK ASSY (RIGHT)
-
1613P-F3136-10-00 ......TUBE, OUTER 2......TUBE, OUTER 2
-
173GF-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
183GF-F3158-00-00 ......GASKET......GASKET
-
193B3-F3170-00-00 ......CYLINDER COMP., FRONT FOR......CYLINDER COMP., FRONT FOR
-
2013P-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
213B3-F3110-00-00 ............INNER TUBE COMP. 1............INNER TUBE COMP. 1
-
223NW-F3156-00-00 ......RING, SNAP......RING, SNAP
-
235SU-F3145-00-00 ......OIL SEAL......OIL SEAL
-
243GF-F3147-00-00 ......O-RING......O-RING
-
255FJ-F3356-00-00 ......BOLT 2......BOLT 2
-
2613P-F3191-00-00 ......BOOT......BOOT
-
2713P-F3192-00-00 ......BAND......BAND
-
283D1-F3340-10-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
2922F-23414-01-00 ...RACE, BALL 4...RACE, BALL 4
-
303GF-F3346-00-00 ...BOLT 1...BOLT 1
-
3113P-F3389-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
3213P-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
339580L-06010-00 BOLT, FLANGEBOLT, FLANGE
-
343KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
3522F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
362E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
3722F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
3893505-32042-00 BALLBALL
-
392E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
-
405SU-F3415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
