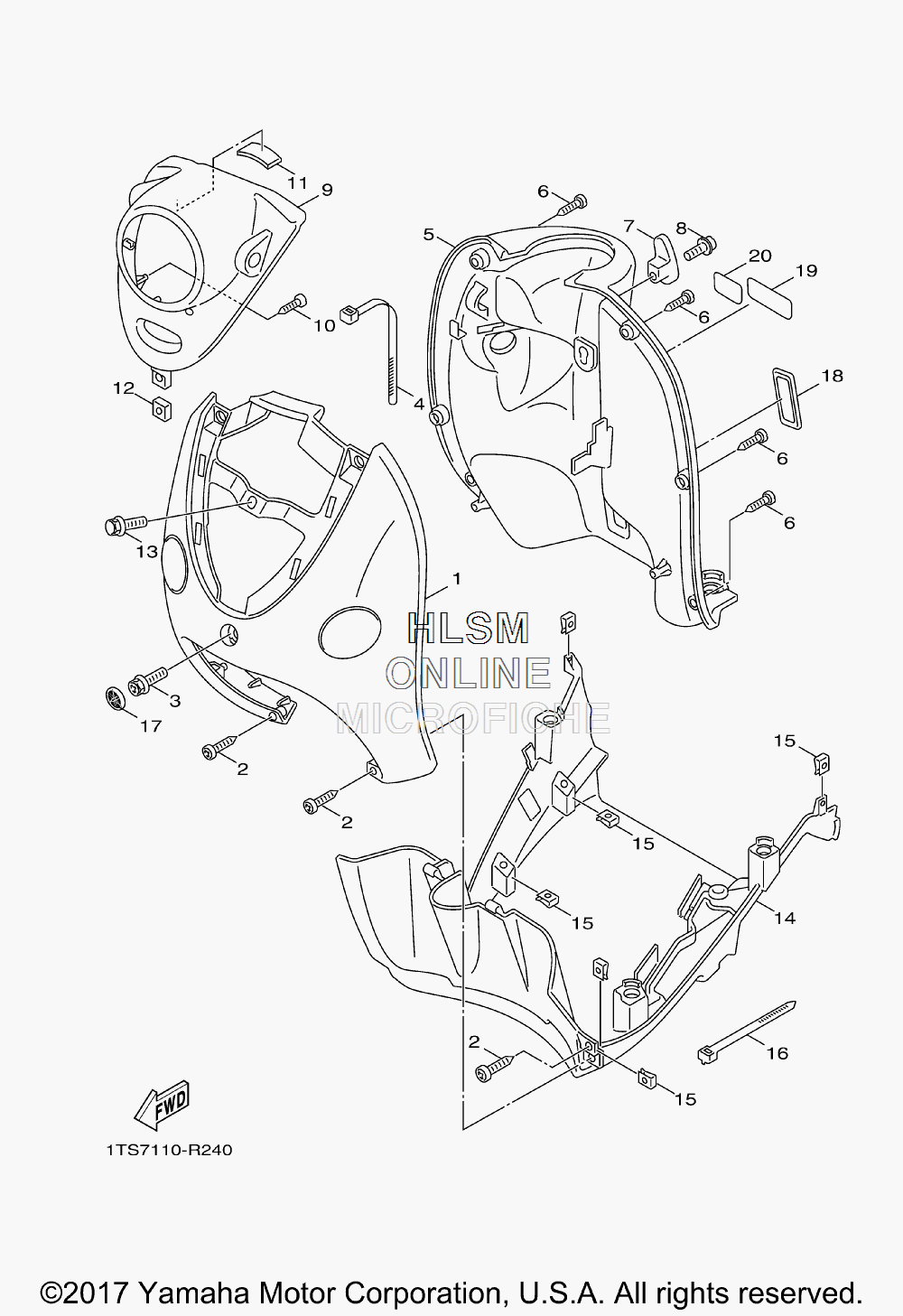

COWLING W/ LEG SHIELD для Yamaha VINO CLASSIC - 2017 года выпуска`
-
№АртикулНазвание
-
15ST-XF831-01-PL LEG SHIELD 1 (DNBMA - BLUE METALLIC)LEG SHIELD 1 (DNBMA - BLUE METALLIC)
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490464-25804-00 CLAMPCLAMP
-
51TS-F8300-00-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
75JS-F8257-80-00 HOOK 1 (MKB - BROWN DRNM2 - DARK REDDISH FOR DPBMB - BLUE METALLIC)HOOK 1 (MKB - BROWN DRNM2 - DARK REDDISH FOR DPBMB - BLUE METALLIC)
-
890159-06822-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
93D1-H4144-02-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
1090169-05001-00 TAPPING SCREWTAPPING SCREW
-
113D1-F8371-01-00 DAMPERDAMPER
-
122GF-F1535-00-00 NUT 1NUT 1
-
1390159-06016-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
145ST-F8385-00-00 COVER, UNDERCOVER, UNDER
-
1590183-05807-00 NUT, SPRINGNUT, SPRING
-
1690464-15840-00 CLAMPCLAMP
-
175ST-F8349-01-00 CAPCAP
-
185FM-F8349-80-00 CAP (MKB - BROWN DRNM2 - DARK REDDISH FOR DPBMB - BLUE METALLIC)CAP (MKB - BROWN DRNM2 - DARK REDDISH FOR DPBMB - BLUE METALLIC)
-
191CD-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
201CD-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
