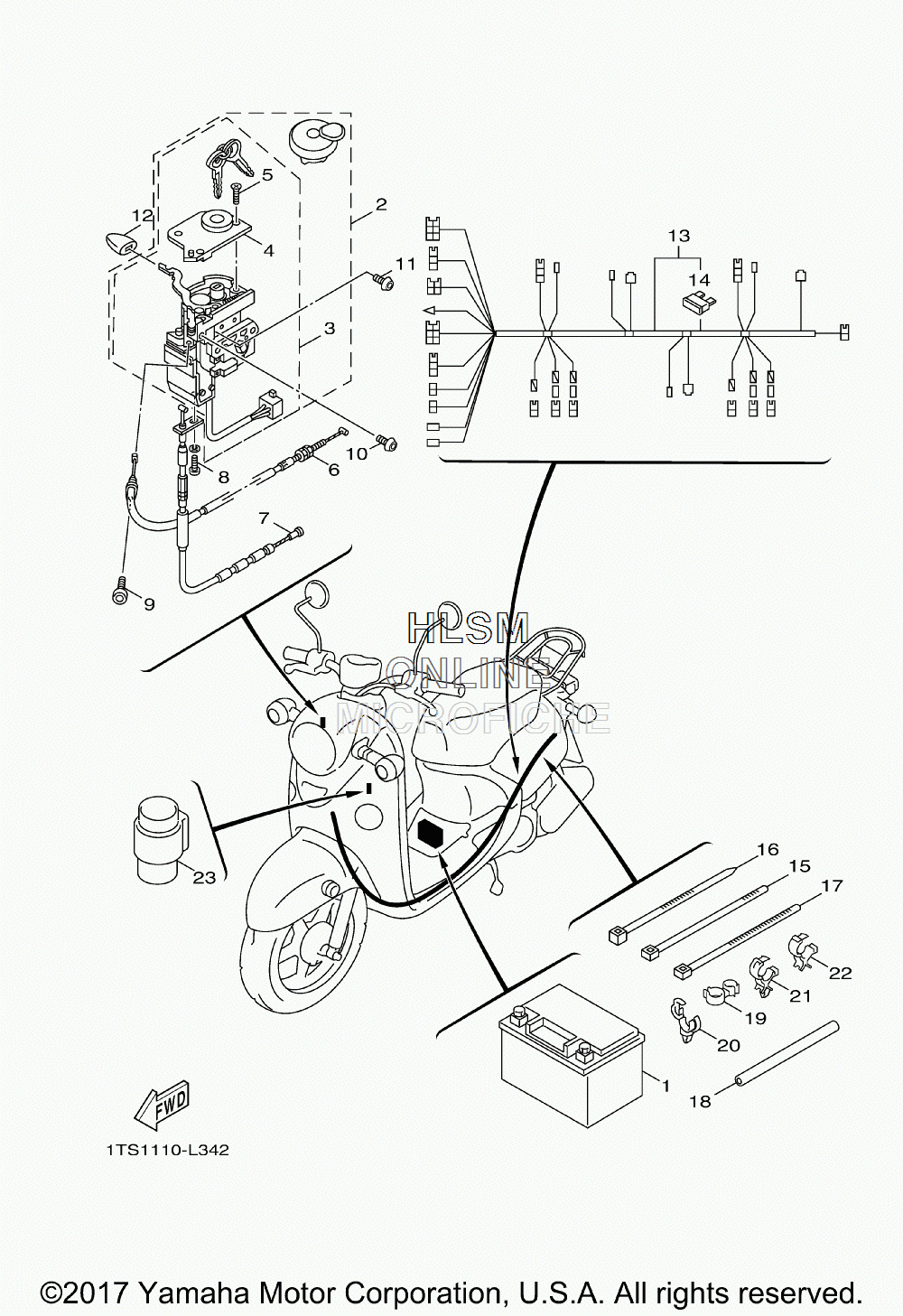

ELECTRICAL 2 для Yamaha VINO CLASSIC - 2017 года выпуска`
-
№АртикулНазвание
-
15PJ-H2100-00-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
25ST-WH203-55-00 KEY SETKEY SET
-
35ST-WH202-40-00 ...KEY SET...KEY SET
-
45ST-F831B-00-00 ......CASE, UNIT 1......CASE, UNIT 1
-
598707-04012-00 ......SCREW, FLAT HEAD......SCREW, FLAT HEAD
-
65ST-F637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
75ST-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
898507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
990110-05800-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090149-06813-00 SCREWSCREW
-
1190149-06814-00 SCREWSCREW
-
125SU-F836X-00-00 KNOB, 1KNOB, 1
-
131TS-H2590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
145ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
1590464-12812-00 CLAMPCLAMP
-
1690465-13152-00 CLAMPCLAMP
-
1790464-60800-00 CLAMPCLAMP
-
181TS-F117G-00-00 PROTECTORPROTECTOR
-
1990464-17803-00 CLAMPCLAMP
-
2090464-20803-00 CLAMPCLAMP
-
2190464-16803-00 CLAMPCLAMP
-
2290464-30801-00 CLAMPCLAMP
-
235XN-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
