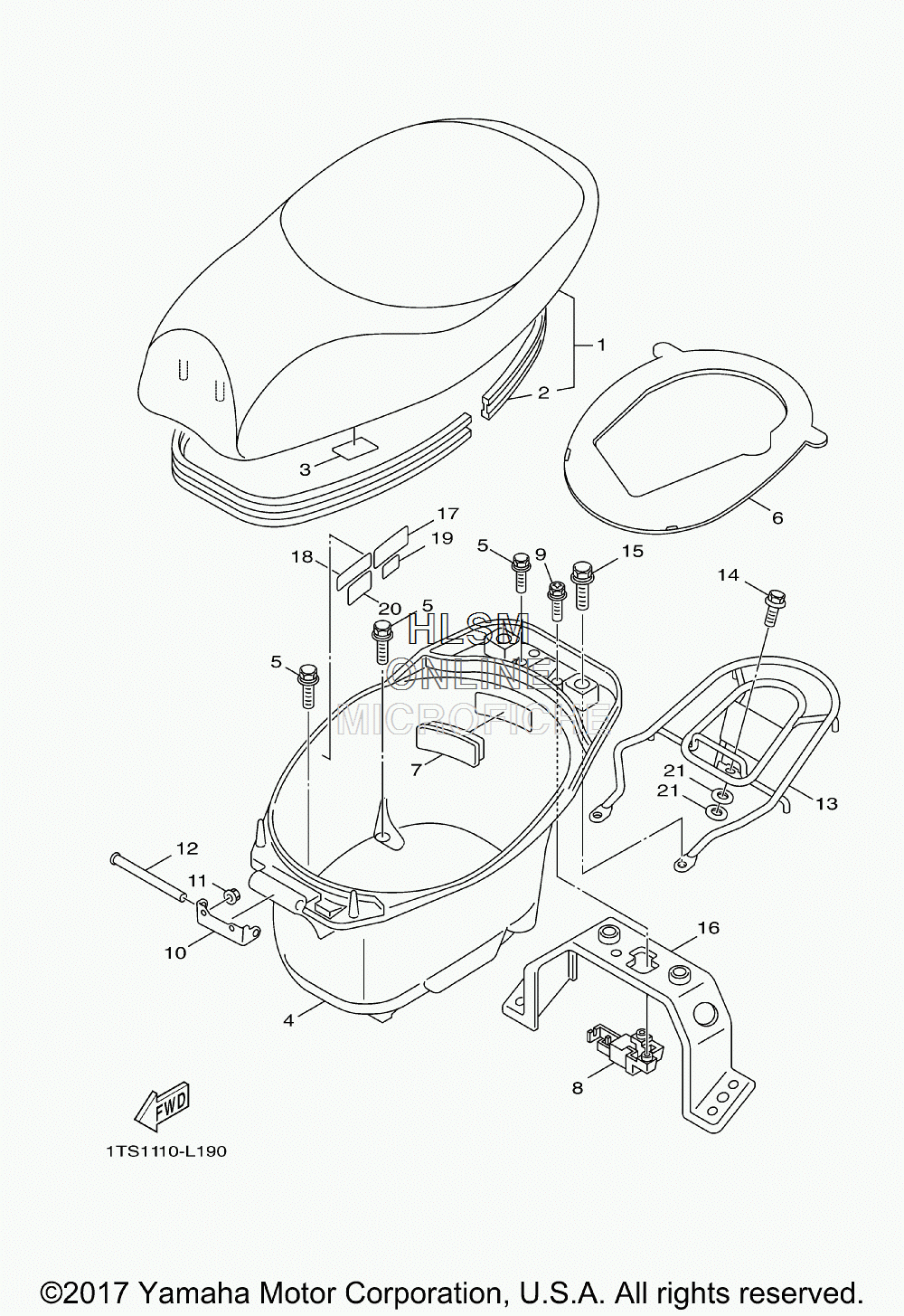

SEAT ASSY. для Yamaha VINO CLASSIC - 2017 года выпуска`
-
№АртикулНазвание
-
15ST-F4730-C0-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
25SU-F475M-00-00 ...SEAL...SEAL
-
33KW-F139X-00-00 DAMPERDAMPER
-
413P-F473R-10-00 BOX 1BOX 1
-
590109-06043-00 BOLTBOLT
-
613P-F4747-10-00 DAMPER, SEATDAMPER, SEAT
-
75SU-F482H-00-00 CAPCAP
-
85SU-F4780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
990159-06016-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
105ST-F4726-00-00 HINGE, SEATHINGE, SEAT
-
1195707-06500-00 NUT, FLANGENUT, FLANGE
-
125SU-F4623-10-00 PIN 1PIN 1
-
133D1-F4842-00-00 CARRIER, REARCARRIER, REAR
-
1495817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1595817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
165ST-F474H-50-00 BRACKET, ASSIST GRIP 1BRACKET, ASSIST GRIP 1
-
173D1-F1668-00-00 LABEL, TIRELABEL, TIRE
-
184JK-F8446-01-00 LABEL, CAUTIONLABEL, CAUTION
-
191CD-F4875-00-00 LABEL 1LABEL 1
-
201TS-F4876-00-00 LABEL, 2LABEL, 2
-
213D1-F1773-00-00 GROMMETGROMMET
