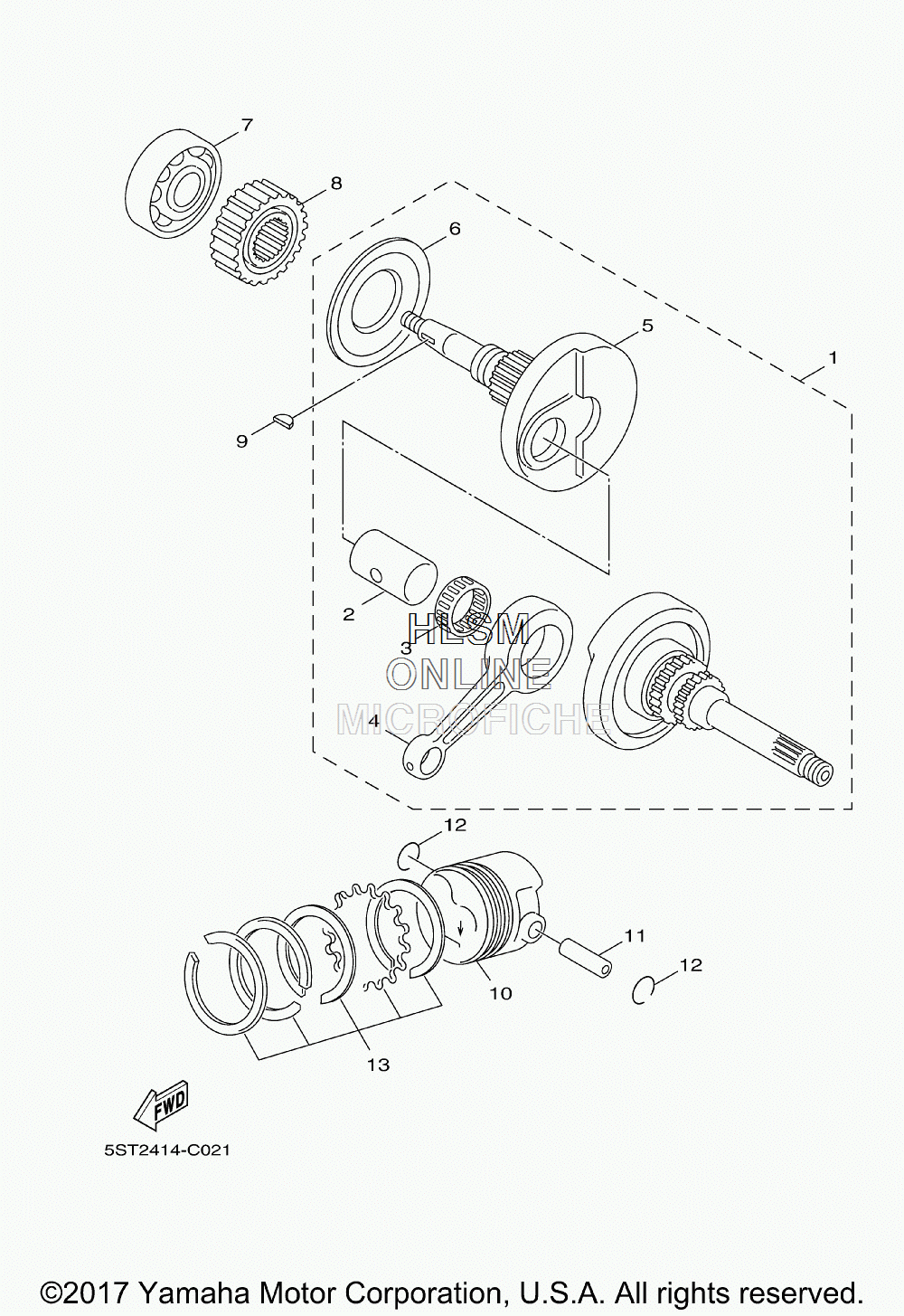

CRANKSHAFT W/ PISTON ASSY. для Yamaha VINO CLASSIC - 2017 года выпуска`
-
№АртикулНазвание
-
12WP-E1400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
22WP-E1681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
393310-420X0-00 ...BEARING...BEARING
-
45ST-E1651-20-00 ...ROD, CONNECTING...ROD, CONNECTING
-
510B-E1422-00-00 ...CRANK 2...CRANK 2
-
65ST-E3452-00-00 ...COVER, ROTOR FILTER...COVER, ROTOR FILTER
-
793306-205XP-00 BEARINGBEARING
-
85ST-E3324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
990280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
103B3-E1631-00-00 PISTON (STD)PISTON (STD)
-
115ST-E1633-00-00 PIN, PISTONPIN, PISTON
-
1293450-10823-00 CIRCLIPCIRCLIP
-
1310B-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
