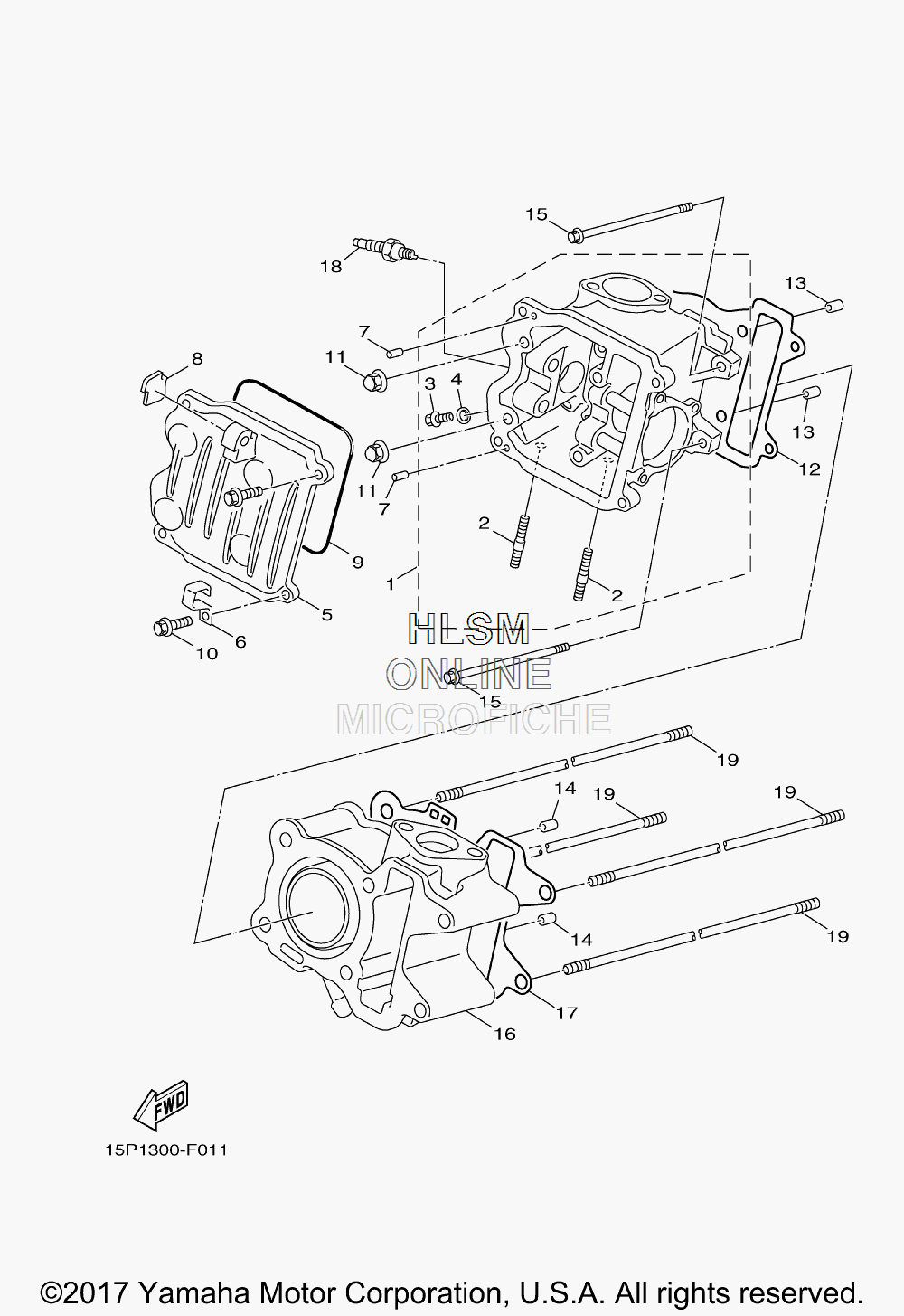

CYLINDER W/ HEAD ASSY. для Yamaha VINO CLASSIC - 2017 года выпуска
-
№АртикулНазвание
-
110B-E1102-10-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
290116-08808-00 ...BOLT, STUD...BOLT, STUD
-
390153-06805-00 ...SCREW, HEXAGON...SCREW, HEXAGON
-
490430-06014-00 ...GASKET...GASKET
-
513P-E1191-01-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
63P3-E1387-00-00 CLAMP, HOSE 1CLAMP, HOSE 1
-
793603-09106-00 PIN, DOWELPIN, DOWEL
-
83B3-E131M-00-00 COVERCOVER
-
993211-18800-00 O-RINGO-RING
-
1095027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1190176-06806-00 NUT, CROWNNUT, CROWN
-
1210B-E1181-10-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1391810-14807-00 PIN, DOWELPIN, DOWEL
-
1491810-14807-00 PIN, DOWELPIN, DOWEL
-
1590105-06810-00 BOLT, FLANGEBOLT, FLANGE
-
163B3-E1311-00-00 CYLINDER 1CYLINDER 1
-
175ST-E1351-10-00 GASKET, CYLINDERGASKET, CYLINDER
-
1894700-00840-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
195ST-E1391-00-00 BOLT, STUD 1BOLT, STUD 1
