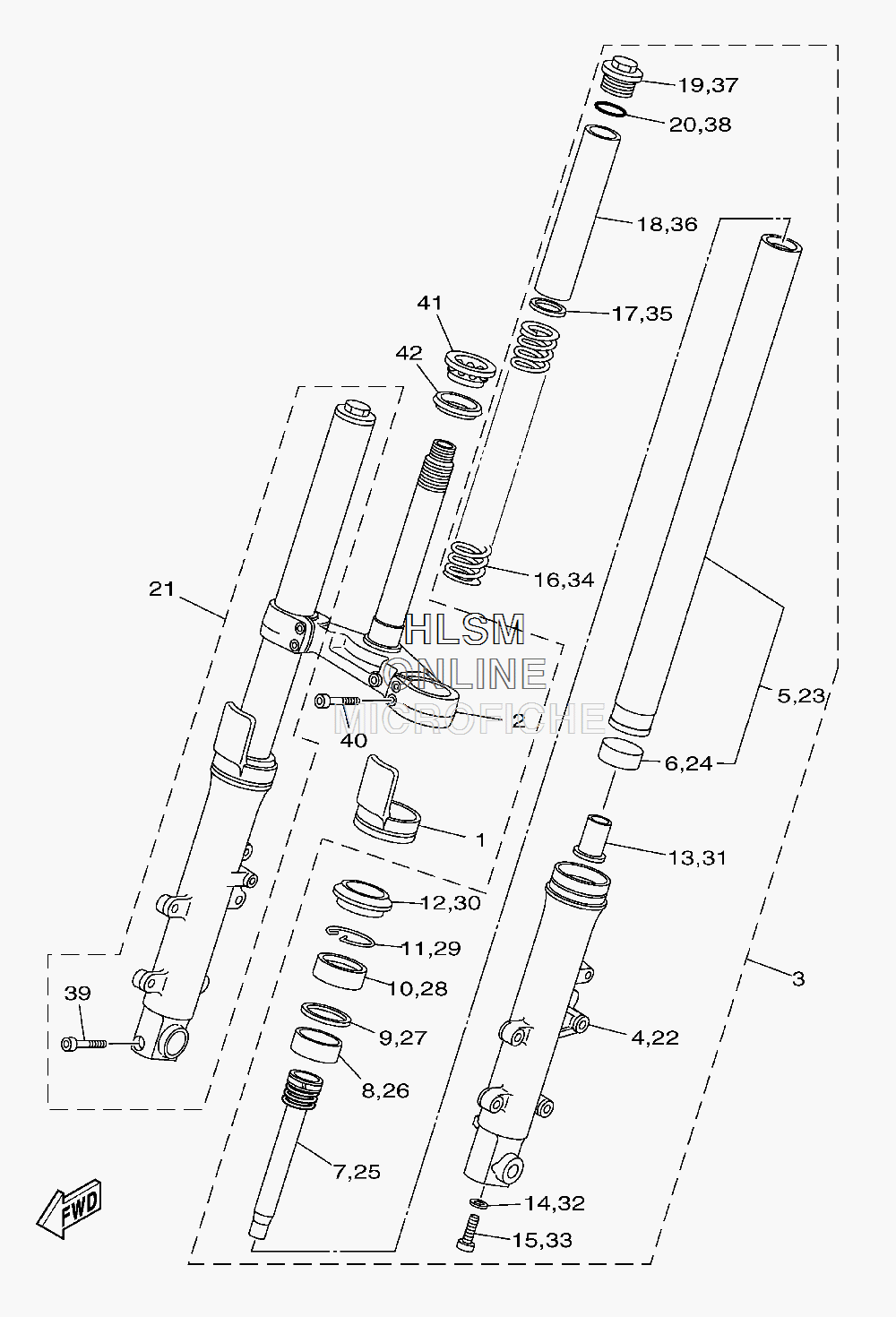

SUSPENSION - FRONT FORK для Yamaha TMAX - 2011 года выпуска`
-
№АртикулНазвание
-
14PU-2331G-00-00 COVERCOVER
-
24B5-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
34B5-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
44B5-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
54B5-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
65EA-23171-30-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
74B5-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
85EB-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
94V4-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
104PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
114V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
124PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
134YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
14509-23158-L0-00 ...GASKET...GASKET
-
15278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
164B5-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
173LR-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
185WM-23118-00-00 ...SPACER...SPACER
-
193TJ-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
204V4-23188-L0-00 ...O-RING...O-RING
-
214B5-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
224B5-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
234B5-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
245EA-23171-30-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
254B5-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
265EB-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
274V4-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
284PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
294V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
304PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
314YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
32509-23158-L0-00 ...GASKET...GASKET
-
33278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
344B5-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
353LR-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
365WM-23118-00-00 ...SPACER...SPACER
-
373TJ-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
384V4-23188-L0-00 ...O-RING...O-RING
-
3991314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
4091314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4193399-99957-00 BEARINGBEARING
-
423FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
