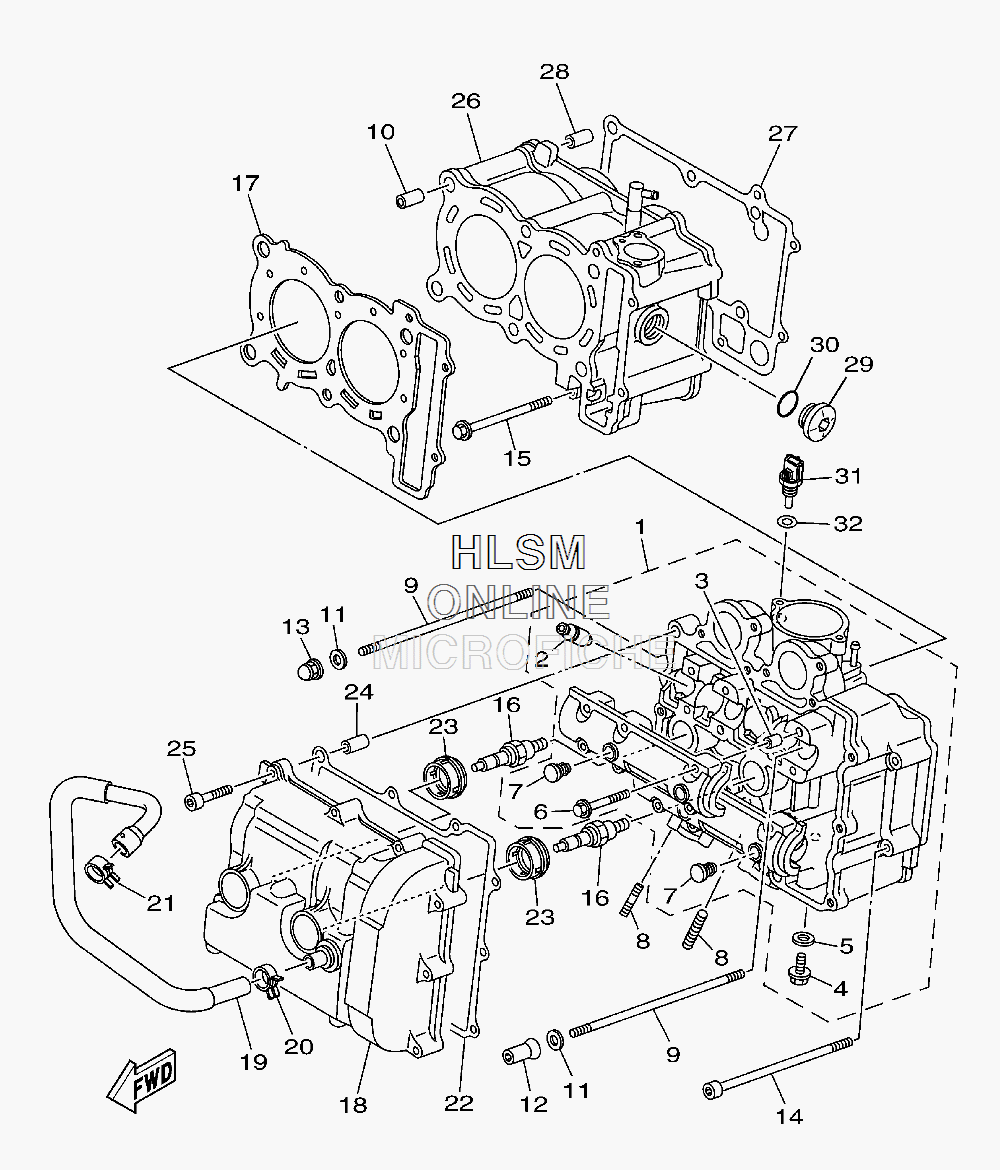

CYLINDER W/ HEAD ASSY. для Yamaha TMAX - 2011 года выпуска`
-
№АртикулНазвание
-
14B5-11101-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25GJ-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
391808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
495022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590430-08119-00 ...GASKET...GASKET
-
690105-06026-00 ...BOLT, FLANGE...BOLT, FLANGE
-
790338-08174-00 ...PLUG, SPEC'L SHAPE...PLUG, SPEC'L SHAPE
-
895612-08620-00 BOLT, STUDBOLT, STUD
-
990116-09584-00 BOLT, STUDBOLT, STUD
-
1093612-16254-00 PIN, DOWELPIN, DOWEL
-
1190201-090P4-00 WASHER, PLATEWASHER, PLATE
-
1290179-09612-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1390179-09003-00 NUTNUT
-
1490110-06021-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1595022-06085-00 BOLT, FLANGEBOLT, FLANGE
-
1694701-00353-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
175GJ-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1815B-11190-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
194B5-11166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2090467-13133-00 CLIPCLIP
-
2190467-16181-00 CLIPCLIP
-
225GJ-11193-01-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
235GJ-11195-00-00 GASKETGASKET
-
2499530-10116-00 PIN, DOWELPIN, DOWEL
-
2591312-06035-00 BOLTBOLT
-
2615B-W1131-00-00 CYLINDERCYLINDER
-
275GJ-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
2893612-16254-00 PIN, DOWELPIN, DOWEL
-
294H7-15189-00-00 PLUGPLUG
-
3093210-22382-00 O-RINGO-RING
-
315PS-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
3290430-12202-00 GASKETGASKET
