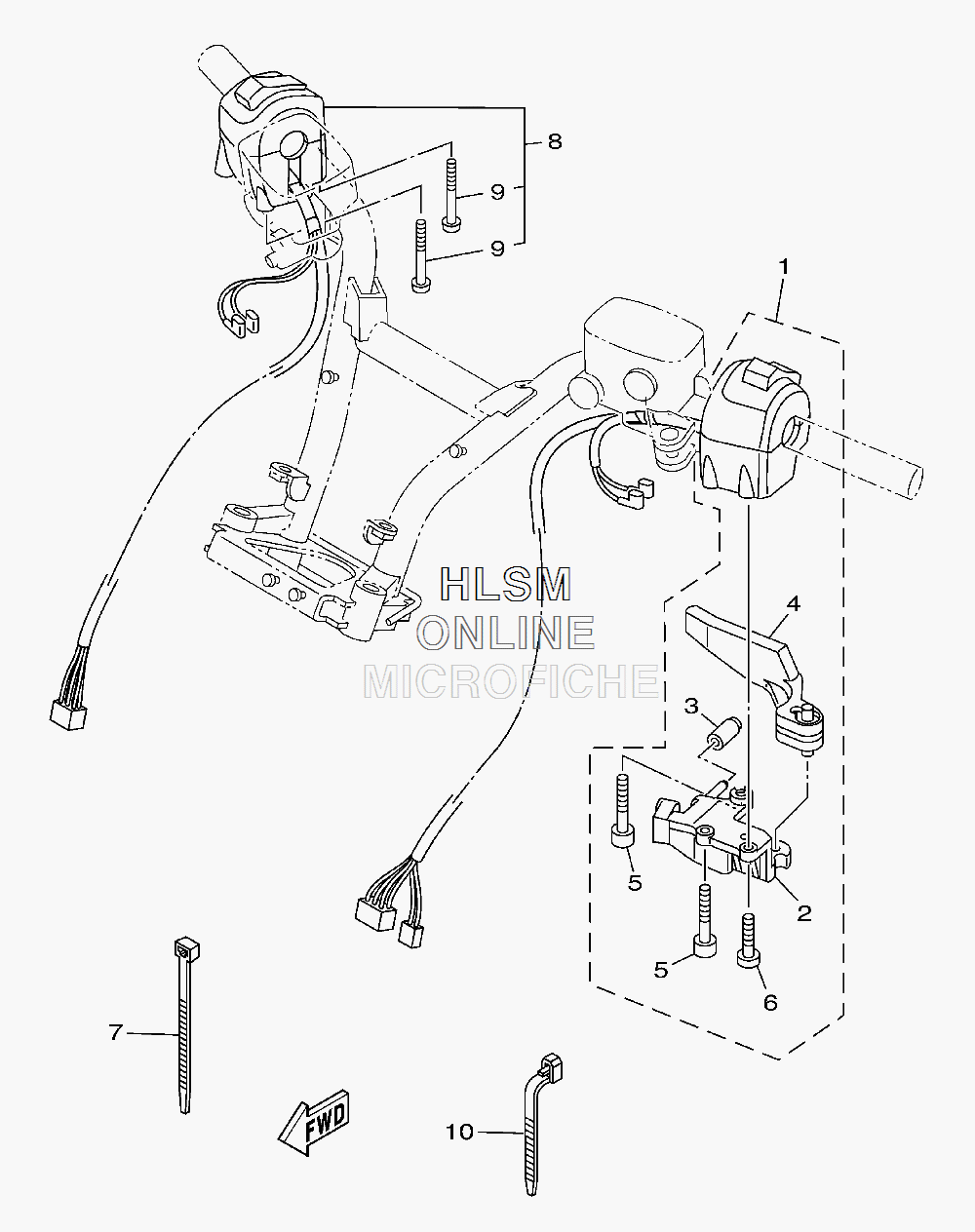

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha TMAX - 2011 года выпуска`
-
№АртикулНазвание
-
14B5-83973-02-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
25RB-26396-01-00 ...HOLDER, ADJUSTING...HOLDER, ADJUSTING
-
35RB-13569-00-00 ...PLUG, BLIND...PLUG, BLIND
-
45VU-83930-00-00 ...LEVER LOCK ASSY...LEVER LOCK ASSY
-
591317-05055-00 ...BOLT...BOLT
-
698507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
790465-12356-00 CLAMPCLAMP
-
84B5-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
998507-05050-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1090464-13073-00 CLAMPCLAMP
