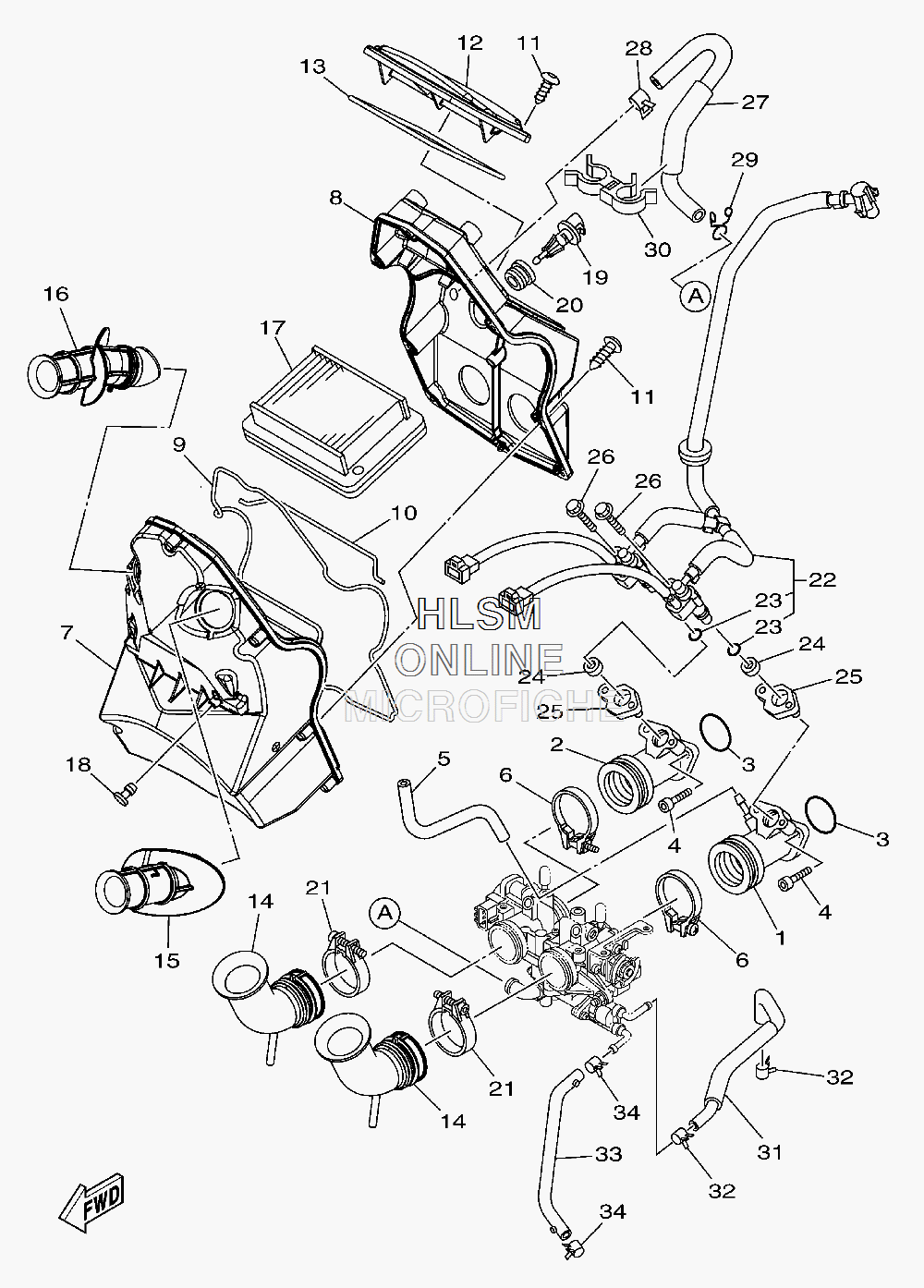

AIR CLEANER ASSY. W/ INTAKE для Yamaha TMAX - 2011 года выпуска`
-
№АртикулНазвание
-
15VU-13586-01-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
25VU-13596-01-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
393210-32738-00 O-RINGO-RING
-
491312-06020-00 BOLTBOLT
-
590445-08017-00 HOSEHOSE
-
690450-47002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
74B5-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
84B5-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
94B5-14452-00-00 SEALSEAL
-
104B5-14457-00-00 SEALSEAL
-
1197702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
124B5-1441A-00-00 COVER, CLEANER CASE 1COVER, CLEANER CASE 1
-
134B5-14462-00-00 SEALSEAL
-
144B5-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
154B5-14437-00-00 DUCTDUCT
-
164B5-1443A-00-00 DUCTDUCT
-
174B5-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1890338-05056-00 PLUGPLUG
-
195VU-85886-00-00 SENSOR, AIR TEMPRATURESENSOR, AIR TEMPRATURE
-
205CA-14435-00-00 GROMMETGROMMET
-
2190450-47002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
224B5-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
235CA-14147-00-00 O-RINGO-RING
-
2490430-09002-00 GASKETGASKET
-
2515B-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
2695812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
274B5-13545-00-00 HOSE 1HOSE 1
-
2890467-17089-00 CLIPCLIP
-
2990467-150A2-00 CLIPCLIP
-
3090464-20015-00 CLAMPCLAMP
-
314B5-1243F-00-00 HOSE,3HOSE,3
-
3290467-10035-00 CLIPCLIP
-
334B5-1244G-00-00 HOSE, 4HOSE, 4
-
3490467-10035-00 CLIPCLIP
