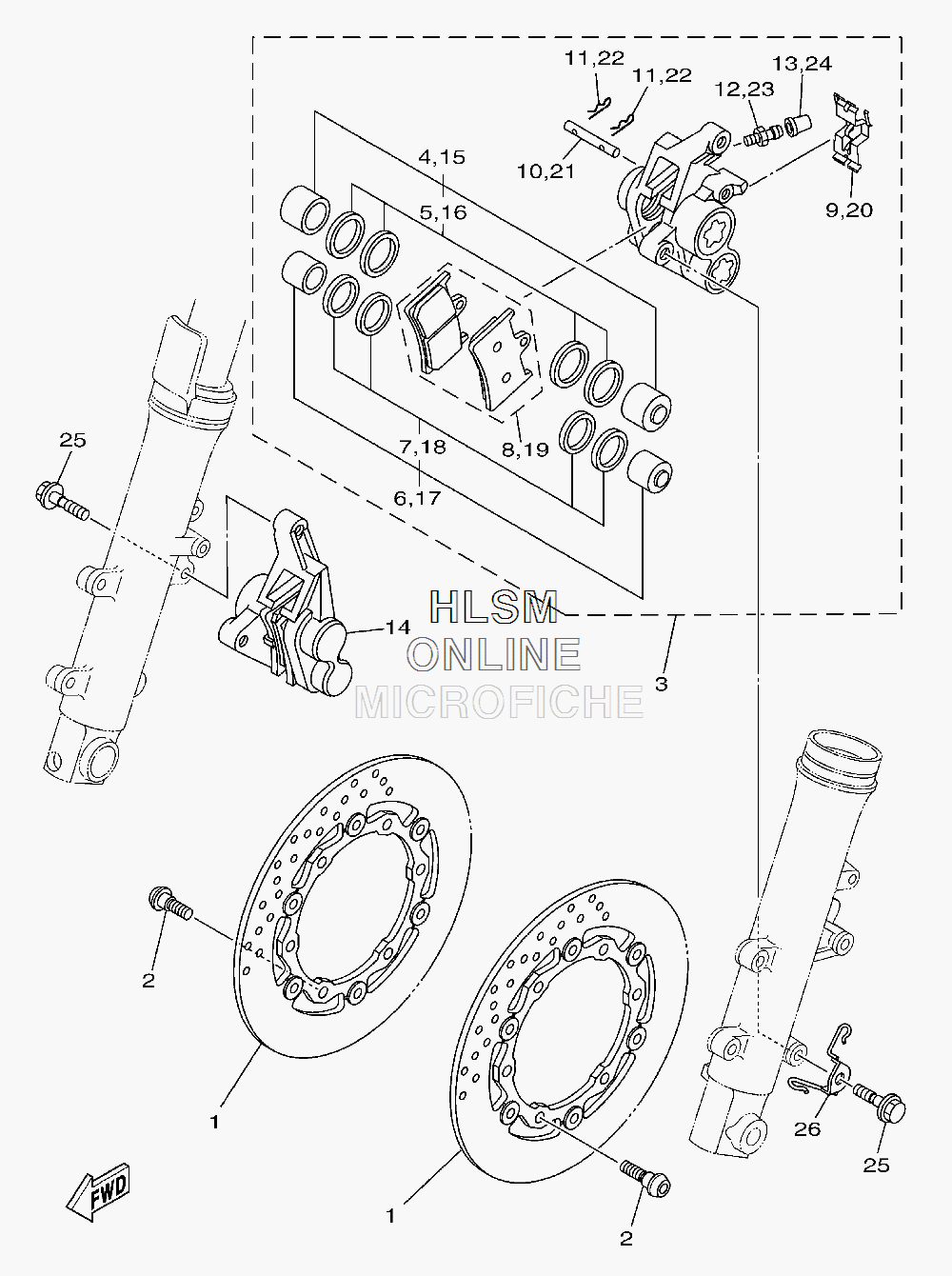

BRAKE - FRONT CALIPER для Yamaha TMAX - 2011 года выпуска`
-
№АртикулНазвание
-
14B5-2581T-00-00 DISK BRAKE ASSYDISK BRAKE ASSY
-
290109-064G6-00 BOLTBOLT
-
34B5-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
44SV-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53GM-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
64SV-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73MA-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84B5-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
913S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
104SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
113GM-25925-00-00 ...CLIP...CLIP
-
121J3-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
13306-25825-01-00 ...CAP...CAP
-
144B5-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
154SV-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
163GM-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
174SV-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
183MA-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
194B5-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
2013S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
214SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
223GM-25925-00-00 ...CLIP...CLIP
-
231J3-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
24306-25825-01-00 ...CAP...CAP
-
2590105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
265VU-23317-00-00 HOLDER, CABLEHOLDER, CABLE
