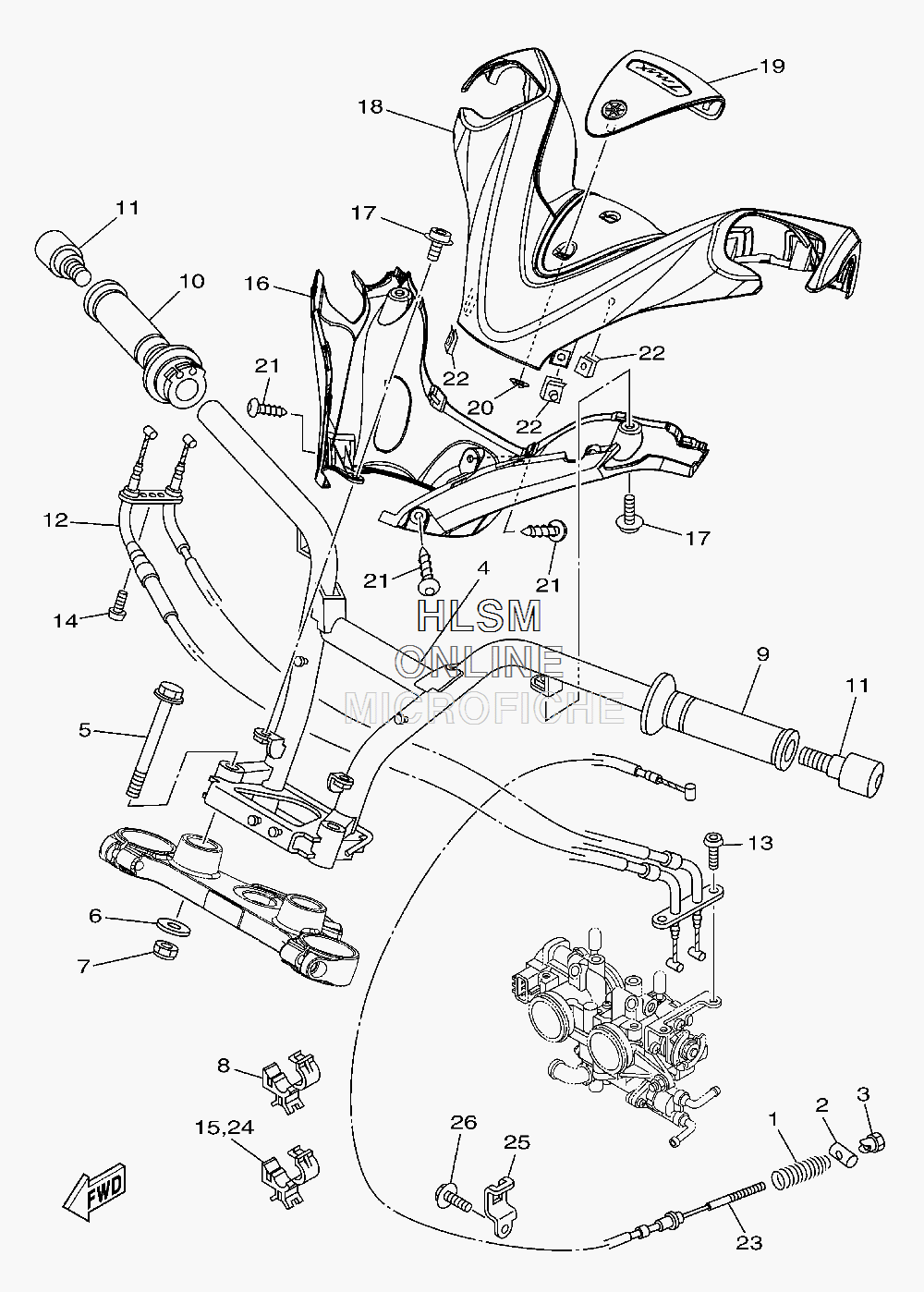

HANDLEBAR W/ CABLES - MIRRORS для Yamaha TMAX - 2011 года выпуска`
-
№АртикулНазвание
-
15VU-25333-00-00 SPRING, RETURNSPRING, RETURN
-
290249-12004-00 PINPIN
-
390179-06018-00 NUTNUT
-
44B5-26110-00-00 HANDLE COMP.HANDLE COMP.
-
590105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
690201-10043-00 WASHER, PLATEWASHER, PLATE
-
795602-10100-00 NUT, UNUT, U
-
890464-20191-00 CLAMPCLAMP
-
94YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
104YR-26240-02-00 GRIP ASSYGRIP ASSY
-
113HX-26246-10-00 END, GRIPEND, GRIP
-
124B5-26301-11-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1392012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1498502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1590464-15192-00 CLAMPCLAMP
-
164B5-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
1790159-05032-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
184B5-26143-00-00 COVER,HAND,UPPER 1COVER,HAND,UPPER 1
-
194B5-26145-00-00 COVER,HAND,UPPER 2COVER,HAND,UPPER 2
-
2090183-05068-00 NUT, SPRINGNUT, SPRING
-
2190167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
2290183-05042-00 NUT, SPRINGNUT, SPRING
-
234B5-2835X-01-00 WIREWIRE
-
2490464-15192-00 CLAMPCLAMP
-
254B5-26131-00-00 GUIDE, CABLE 1GUIDE, CABLE 1
-
2695802-06010-00 BOLT, FLANGEBOLT, FLANGE
