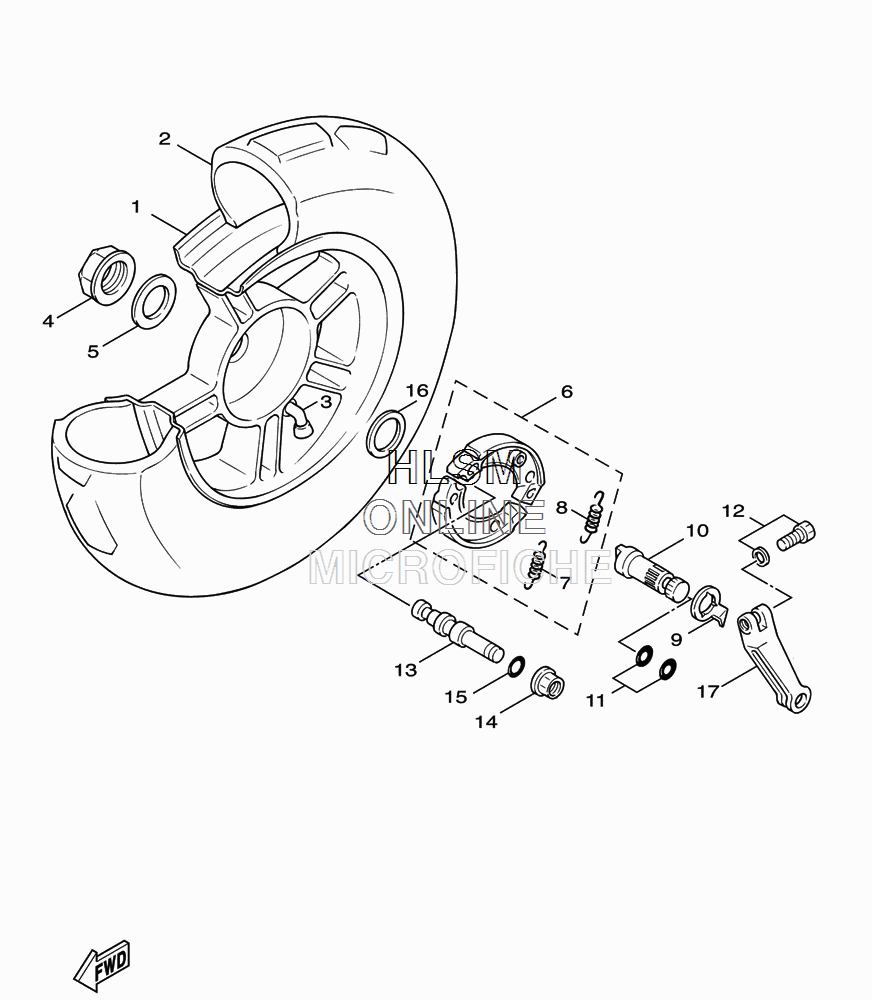

WHEEL - REAR для Yamaha ZUMA - 2010 года выпуска`
-
№АртикулНазвание
-
14VP-F5338-01-33 CAST WHEEL, REARCAST WHEEL, REAR
-
294113-108S4-00 TIRE (130/90-10 59J TL)TIRE (130/90-10 59J TL)
-
393900-00802-00 VALVE, RIM TR413VALVE, RIM TR413
-
490185-14124-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-14740-00 WASHER, PLATEWASHER, PLATE
-
65DV-W253E-02-00 BRAKE SHOE KITBRAKE SHOE KIT
-
790506-12001-00 SPRING, TENSIONSPRING, TENSION
-
890506-15001-00 SPRING, TENSIONSPRING, TENSION
-
95PJ-F533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
101P3-F5351-00-00 CAMSHAFTCAMSHAFT
-
111P3-F3147-00-00 O-RINGO-RING
-
1290101-06878-00 BOLTBOLT
-
131P3-F5326-00-00 PIN, PIVOTPIN, PIVOT
-
1495707-10500-00 NUT, FLANGENUT, FLANGE
-
1593210-07890-00 O-RINGO-RING
-
1690201-203E7-00 WASHER, PLATEWASHER, PLATE
-
174VP-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
