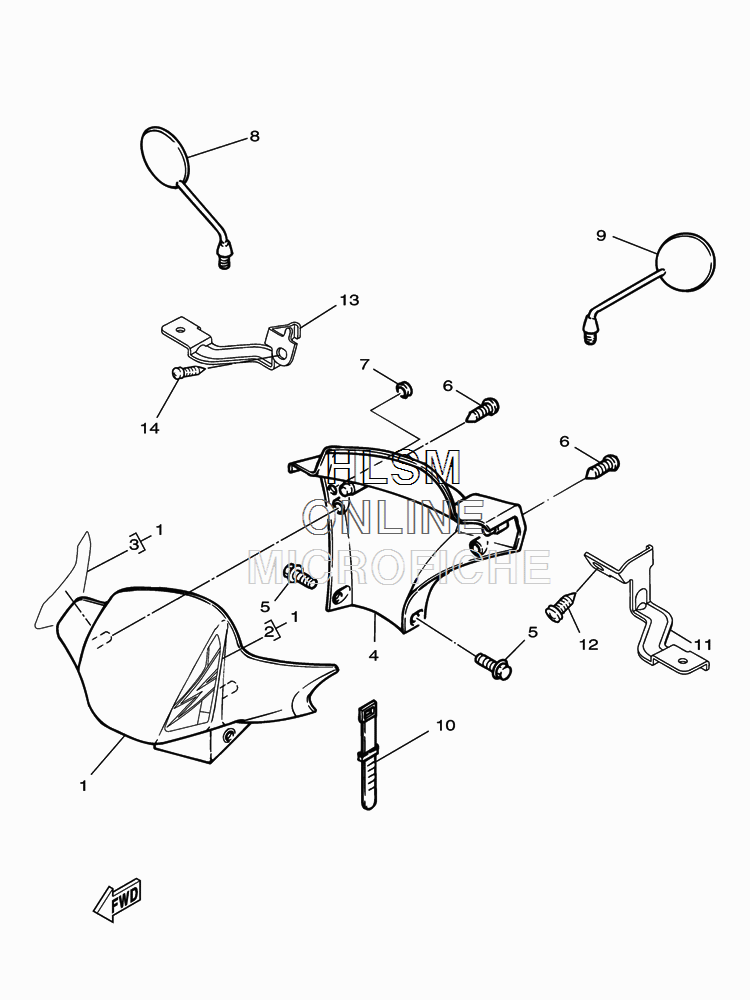

HANDLEBAR - COVER W/ MIRRORS для Yamaha ZUMA - 2010 года выпуска`
-
№АртикулНазвание
-
14VP-XF614-00-P8 COVER, HANDLE UPPER 1 (FOR SMX)COVER, HANDLE UPPER 1 (FOR SMX)
-
14VP-XF614-30-P3 COVER, HANDLE UPPER 1 (FOR VYS2)COVER, HANDLE UPPER 1 (FOR VYS2)
-
25PJ-F832K-20-00 GRAPHIC, 12GRAPHIC, 12
-
25PJ-F832K-00-00 GRAPHIC, 12GRAPHIC, 12
-
35PJ-F832L-20-00 GRAPHIC, 13GRAPHIC, 13
-
35PJ-F832L-00-00 GRAPHIC, 13GRAPHIC, 13
-
44VP-F6145-00-00 COVER, HANDLEBAR UPPER 2COVER, HANDLEBAR UPPER 2
-
590159-05831-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
690160-05803-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
73GF-F6199-00-00 PLUG, BLINDPLUG, BLIND
-
84VP-F6290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
94VP-F6280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
104C7-H2594-00-00 CLAMPCLAMP
-
115PJ-F612M-00-00 BRACKET 4BRACKET 4
-
1295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
135PJ-F612N-00-00 BRACKET 5BRACKET 5
-
1495807-06012-00 BOLT, FLANGEBOLT, FLANGE
