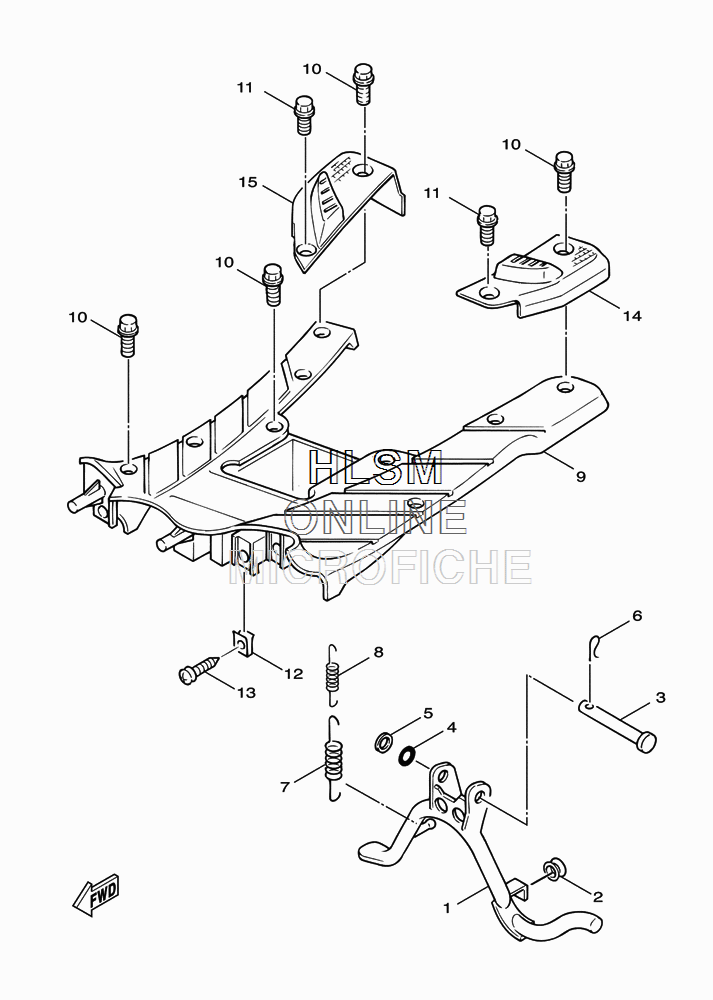

STAND W/ FOOTREST для Yamaha ZUMA - 2010 года выпуска`
-
№АртикулНазвание
-
15PJ-F7111-00-00 STAND, MAINSTAND, MAIN
-
24CW-F7114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
390240-10137-00 PIN, CLEVISPIN, CLEVIS
-
493210-108B1-00 O-RINGO-RING
-
590202-10120-00 WASHER, PLATEWASHER, PLATE
-
690468-12006-00 CLIPCLIP
-
790506-26801-00 SPRING, TENSIONSPRING, TENSION
-
890506-20800-00 SPRING, TENSIONSPRING, TENSION
-
95PJ-F7481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
1090119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290183-05807-00 NUT, SPRINGNUT, SPRING
-
1397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
145PJ-F7411-00-00 FOOTREST 1FOOTREST 1
-
155PJ-F7421-00-00 FOOTREST 2FOOTREST 2
