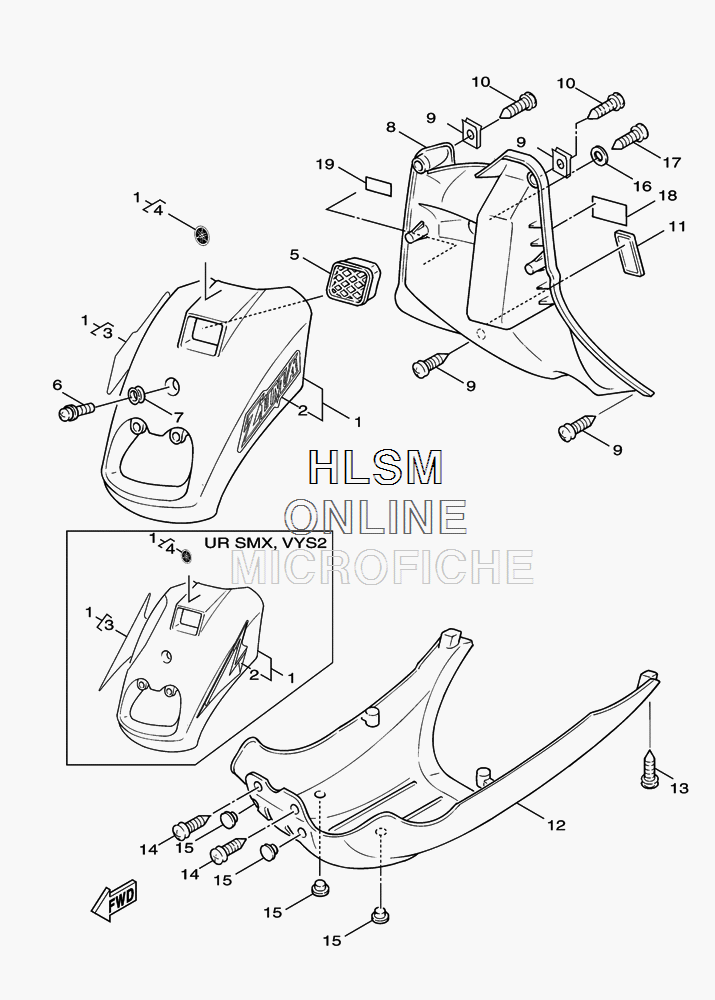

COWLING W/ LEG SHIELD для Yamaha ZUMA - 2010 года выпуска`
-
№АртикулНазвание
-
15PJ-XF831-21-P3 LEG SHIELD 1 (FOR SMX)LEG SHIELD 1 (FOR SMX)
-
15PJ-XF831-31-P0 LEG SHIELD 1 (FOR DPBMC)LEG SHIELD 1 (FOR DPBMC)
-
25PJ-F832P-20-00 GRAPHIC 18GRAPHIC 18
-
25PJ-F832P-00-00 GRAPHIC 18GRAPHIC 18
-
35PJ-F832D-00-00 GRAPHIC 17GRAPHIC 17
-
35PJ-F832D-20-00 GRAPHIC 17GRAPHIC 17
-
45PN-F8445-00-00 EMBLEMEMBLEM
-
54VP-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
695880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790387-062M9-00 COLLARCOLLAR
-
84VP-F8300-01-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
990183-05807-00 NUT, SPRINGNUT, SPRING
-
1097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
115FM-F8349-00-00 CAPCAP
-
124VP-F8385-11-00 COVER, UNDERCOVER, UNDER
-
1397707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
153GF-F6199-00-00 PLUG, BLINDPLUG, BLIND
-
1690201-06416-00 WASHER, PLATEWASHER, PLATE
-
1790159-06812-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
184VP-F1668-00-00 LABEL, TIRELABEL, TIRE
-
195PJ-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
