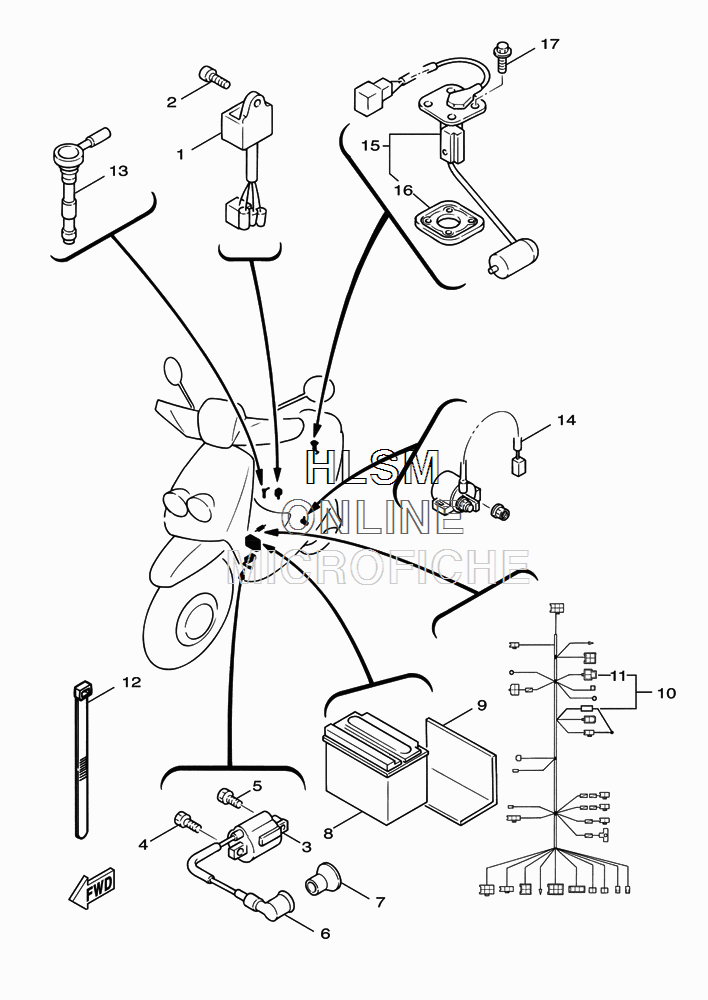

ELECTRICAL 2 для Yamaha ZUMA - 2010 года выпуска`
-
№АртикулНазвание
-
15PJ-H5540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
290159-06847-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
34VP-H2310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
497007-06016-00 BOLTBOLT
-
590153-06839-00 SCREW, HEXAGONSCREW, HEXAGON
-
63GF-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
73GF-H2372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
8BTG-GTX5L-BS-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
95DA-H2176-00-00 DAMPERDAMPER
-
105PJ-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
111NT-H2151-00-00 FUSEFUSE
-
124C7-H2594-00-00 CLAMPCLAMP
-
134VP-H5720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
144WX-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
154VP-XH575-10-00 SENDER UNIT ASSYSENDER UNIT ASSY
-
165G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
1790119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
